Our range of lightweight portable gantries brings a new dimension to the professional lifting market. The portability, safe manual assembly and rigidity of the structure mean that it opens up a whole new market for the use of gantries with lifting applications such as confined space, rooftop, HVAC, lift-shaft, waste water, clean environments (food, hospitals etc.) and increasing availability from the hire industry.

Design: The gantry crane consists of four individual elements that can be assembled and disassembled in a few minutes. The height is adjustable so that the crane can also be placed in rooms with low ceilings.

Areas of applications:

  • Moving and lifting of heavy loads.
  • Building motors and driving applications in and out.
  • Repair and maintenance of pumps.
  • Loading trucks and trailers on and off.
  • For use in workshops and on-site.
  • Note: Can be delivered with capacity up to 3 tons, as well as custom-made solutions.
Gantry_motor
Feltes model Standard movable under load_in use dwg

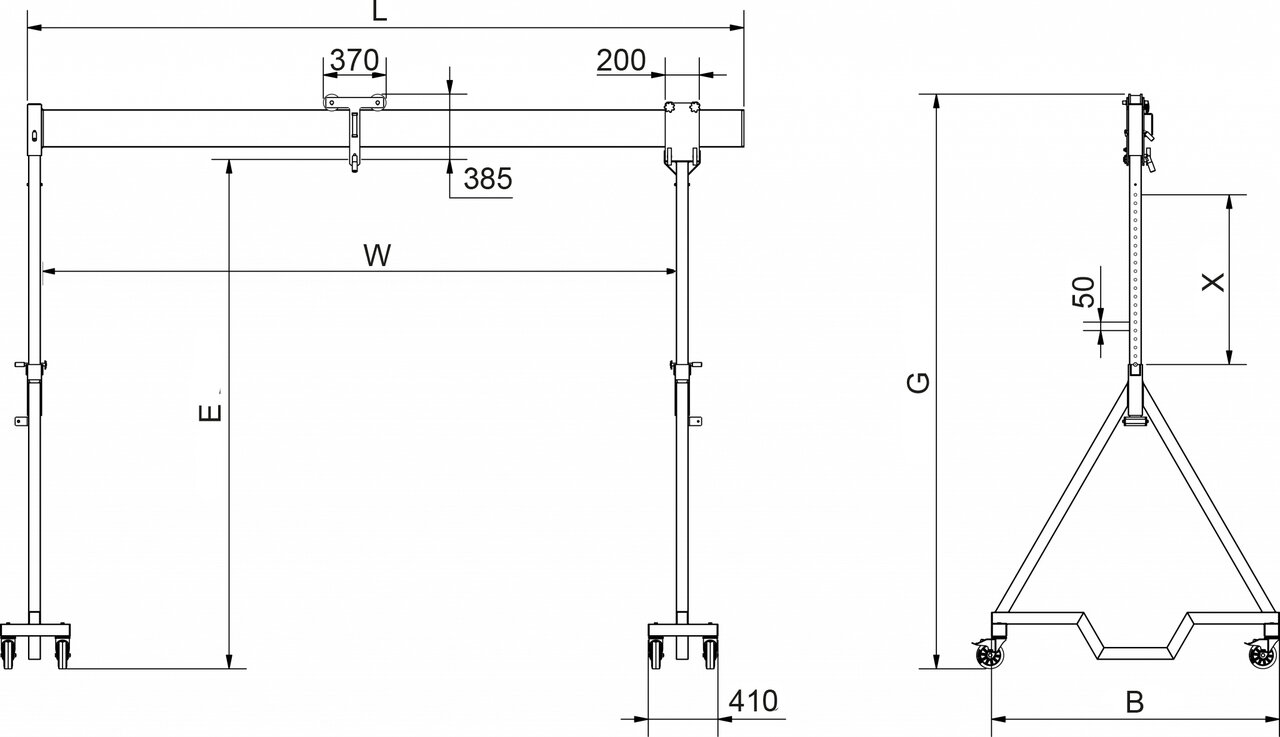

Feltes model Standard movable under load dwg
Select a row from the table below, then click the add to cart button
Part Code WLL
ton
Model Beam length
m
B
mm
E
mm
G
mm
L
mm
W
mm
X
mm
Weight
kg
13.10121000-7 0,5 Mini 7 1 120 1500-2000 1885-2385 7 217 6 992 500 165
13.10121000-8 0,5 Mini 8 1 120 1500-2000 1885-2385 8 217 7 992 500 174
13.10122000-7 0,5 Standard 7 1 695 2000-3000 2385-3385 7 217 6 992 1 000 187
13.10122000-8 0,5 Standard 8 1 695 2000-3000 2385-3385 8 217 7 992 1 000 196
13.10123000-7 0,5 Maxi 7 1 985 2250-3500 2635-3885 7 217 6 992 1 250 197
13.10123000-8 0,5 Maxi 8 1 985 2250-3500 2635-3885 8 217 7 992 1 250 206
13.10121000-6 0,75 Mini 6 1 120 1500-2000 1885-2385 6 217 5 992 500 155
13.10122000-6 0,75 Standard 6 1 695 2000-3000 2385-3385 6 217 5 992 1 000 177
13.10123000-6 0,75 Maxi 6 1 985 2250-3500 2635-3885 6 217 5 992 1 250 187
13.10121000-2 1 Mini 2 1 120 1500-2000 1885-2385 2 217 1 992 500 117
13.10121000-3 1 Mini 3 1 120 1500-2000 1885-2385 3 217 2 992 500 127
13.10121000-4 1 Mini 4 1 120 1500-2000 1885-2385 4 217 3 992 500 136
13.10122000-2 1 Standard 2 1 695 2000-3000 2385-3385 2 217 1 992 1 000 139
13.10121000-5 1 Mini 5 1 120 1500-2000 1885-2385 5 217 4 992 500 146
13.10122000-3 1 Standard 3 1 695 2000-3000 2385-3385 3 217 2 992 1 000 149
13.10123000-2 1 Maxi 2 1 985 2250-3500 2635-3885 2 217 1 992 1 250 149
13.10122000-4 1 Standard 4 1 695 2000-3000 2385-3385 4 217 3 992 1 000 158
13.10123000-3 1 Maxi 3 1 985 2250-3500 2635-3885 3 217 2 992 1 250 159
13.10123000-4 1 Maxi 4 1 985 2250-3500 3635-3885 4 217 3 992 1 250 168
13.10122000-5 1 Standard 5 1 695 2000-3000 2385-3385 5 217 4 992 1 000 168
13.10123000-5 1 Maxi 5 1 985 2250-3500 2635-3885 5 217 4 992 1 250 178
