General: Rotates through 360° and pivot 90°.
Manufactured from alloy steel, quenched and tempered.
Load rated parts are 100% magnaflux crack detected.
Individual forged parts and cap screw are traceable to Test Certification.
Bolts are Metric thread (ASME / ANSI B18.3.1M), specification is grade 12.9 alloy socket head screw per DIN EN ISO 4762.
Individually proof tested to 2.5 times the WLL.
Fatigue rated to 1.5 times the WLL.
All YOKE Lifting points meet or exceed all the requirements of ASME B30.26.
Quick and simple assembly, just a tapped hole is required."

  • Rope construction: -40° up to +200°C (without reduction in WLL).
  • Material: Alloy steel, quenched and tempered.
  • Marking: WLL, size, steel quality, manufacturer ID and traceability.
  • Finish: Painted.
  • Standard: EN 1677-1
  • Safety factor: 4:1
  • Grade: 10
Product Picture 1
Product Picture 2
Select a row from the table below, then click the add to quote button
Art No WLL
Ton
Thread (M)
mm
Thread length (E)
mm
Pitch DIN13 Torque
Nm

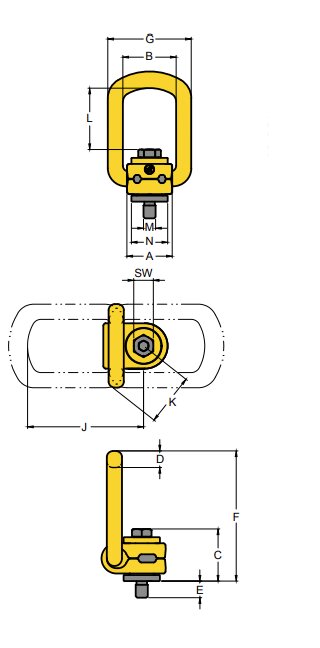

A (mm) B (mm) C (mm) D (mm) F (mm) G (mm) H (mm) S (mm) SW (mm) Weight
kg
CAD
11.418-211-003 0.3 M 8 11 1,25 30 30 35 35 10 85 55 29 6 13 0.2
11.418-211-006 0.63 M 10 16 1,5 60 30 35 36 10 85 55 29 6 17 0.3
11.418-211-010 1 M 12 18 1,75 100 33 37 44 14 98 57 36 8 19 0.5
11.418-211-012 1.2 M 14 21 2 120 33 37 45 14 98 57 36 10 22 0.5
11.418-211-015 1.5 M 16 24 2 150 33 37 46 14 98 57 36 10 24 0.5
11.418-211-020 2 M 18 26 2,5 200 50 54 57 17 140 82 44 12 30 1.3
11.418-211-025 2.5 M 20 30 2,5 250 50 54 57 17 140 82 44 12 30 1.3
11.418-211-040 4 M 24 36 3 400 50 54 59 17 140 82 44 14 36 1.4
11.418-211-042 4 M 27 38 3 400 60 65 79 23 170 99 62 17 41 2.8
11.418-211-050 5 M 30 48 3,5 500 60 65 81 23 170 99 62 17 46 3.1
11.418-211-070 7 M 36 54 4 700 60 65 88 23 178 99 65 22 55 3.3
11.418-211-080 8 M 36 62 4 800 77 85 101 27 225 124 78 22 55 5.8
11.418-211-100 10 M 42 72 4,5 1,000 77 85 104 27 225 124 78 24 65 6.3
11.418-211-150 15 M 42 63 4,5 1,500 95 104 112 36 256 158 86 24 65 10.8
11.418-211-200 20 M 48 72 5 2,000 95 104 120 36 259 158 90 27 75 11.6

Download CAD

Description

Get CAD
Download



No of
legs
1
2
1
2
2
2
3-4
3-4
2
3-4
Angle of indication
90°
90°
0°-45°
45°-60°
0°-45°
45°-60°
unsym
unsym
Thread
Load capacity tons









M 8
0,3
0,6
0,3
0,6
0,42
0,3
0,63
0,45
0,3
0,3
M 10
0,63
1,26
0,63
1,26
0,88
0,63
1,32
0,95
0,63
0,63
M 12
1
2
1
2
1,4
1
2,1
1,5
1
1
M 14
1,2
2,4
1,2
2,4
1,7
1,2
2,5
1,8
1,2
1,2
M 16
1,5
3
1,5
3
2,1
1,5
3,1
2,2
1,5
1,5
M 18
2
4
2
4
2,8
2
4,2
3
2
2
M 20
2,5
5
2,5
5
3,5
2,5
5,2
3,7
2,5
2,5
M 24
4
8
4
8
5,6
4
8,4
6
4
4
M 27
4
8
4
8
5,6
4
8,4
6
4
4
M 30
5
10
5
10
7
5
10,5
7,5
5
5
M 36
7
14
7
14
9,8
7
14,7
10,5
7
7
M 36
8
16
8
16
11,2
8
16,8
12
8
8
M 42
10
20
10
20
14
10
21
15
10
10
M 42
15
30
15
30
21
15
31,5
22,5
15
15
M 48
20
40
20
40
28
20
42
30
20
20
M 56 22 44 22 44 30.8 22 46.2 33 22
M 64 22.5 45 22.5 45 31.5 22.5 47.25 33.75 22.5
