General: Chain for general use.

Packing: Bobbin.

  • Finish: Zink-platined.
  • Warning: Not for lifting.
  • Grade: 2
knotted_chain

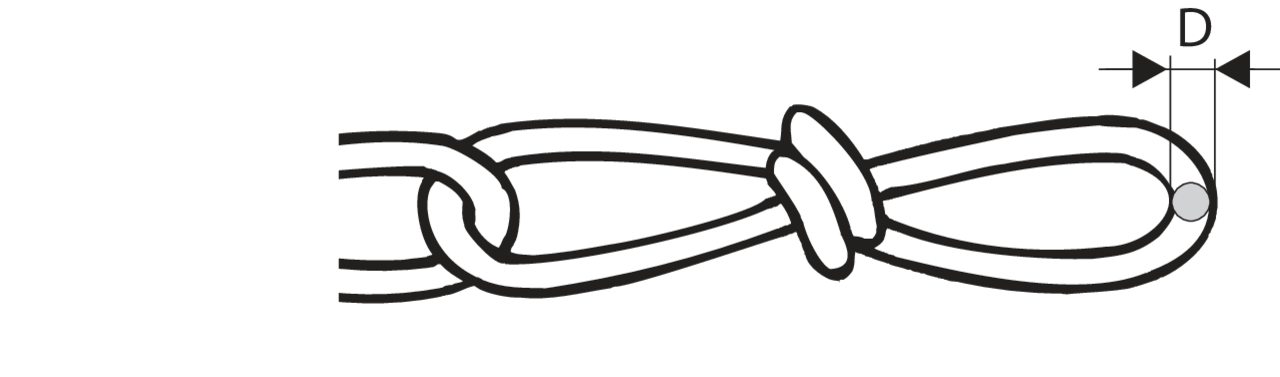

knotted_chain_measure
Select a row from the table below, then click the add to quote button
Part Code Code Diameter
mm
Length Weight
kg/100m
CAD
11.605686016ER100 KETSK16 1.6 100 6
11.605686020ER50 KETSK20 2 50 9
11.605686025ER50 KETSK25 2.5 50 12
11.605686031ER30 KETSK31 3.1 30 21
11.605686038ER30 KETSK38 3.8 30 32
11.605686050ER30 KETSK50 5 30 54

*Please note that this product is sold only in bobbins.
