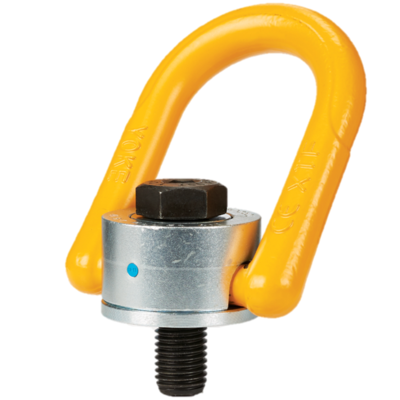

Swivel Hoist Ring 8-231

  • The product is equipped with RFID chip
  • Rotates through 360° and pivot 180°, and simultaneously allows lifting from any direction.
  • Manufactured from forged alloy steel, quenched and tempered.
  • Load rated parts are 100% magnaflux crack detected.
  • Individual forged parts and cap screw are traceable to Test Certification.
  • Bolt are Metric thread (ASME / ANSI B18.3.1M).
  • Proof tested to 2.5 times the WLL.
  • Fatigue rated to 1.5 times the WLL.
  • All YOKE Lifting points meet or exceed all the requirements of ASME B30.26.
  • Quick and simple assembly, just a tapped hole is required.
  • Features: Built-in RFID/NFC chip
  • Material: Forged alloy steel, quenched and tempered
  • Marking: According to standard, CE-marked, WLL, size, steel quality, manufacturer ID and traceability
  • Temperature range: -40° up to +200°C (without reduction in WLL).
  • Finish: Painted
  • Standard: EN 1677-1
  • Safety factor: 4:1

After click on the “Show table” button, you will see the table with all technical details about the product.
