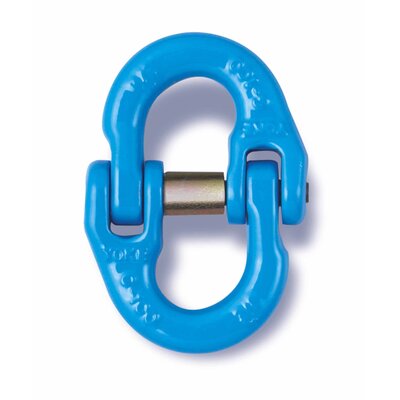

Connecting link X-015 Grade 10

  • At least 25% greater WLL than traditional Grade 8 products.
  • Proof Load tested at 2.5 times the WLL with certification for each batch manufactured.
  • Fatigue rated to 20,000 cycles at 1.5 times the WLL.
  • Suitable for use with both Grade 8 and Grade 10 chain.

When fitting G10 components

Show more

Log in to webshop
Product number:
  • At least 25% greater WLL than traditional Grade 8 products.
  • Proof Load tested at 2.5 times the WLL with certification for each batch manufactured.
  • Fatigue rated to 20,000 cycles at 1.5 times the WLL.
  • Suitable for use with both Grade 8 and Grade 10 chain.

When fitting G10 components are added to G8 chain, the sling is rated at G8 WLL.

  • Material: Quenched and Tempered Alloy Steel.
  • Marking: According to standard, Type, manufacturer ID, traceability.
  • Temperature range: -40° up to +200°C (without reduction in WLL).
  • Finish: Blue painted.
  • Standard: EN 1677-1
  • Safety factor: 4:1
  • Grade: 10
