Powertex
  • Cr6+ Free

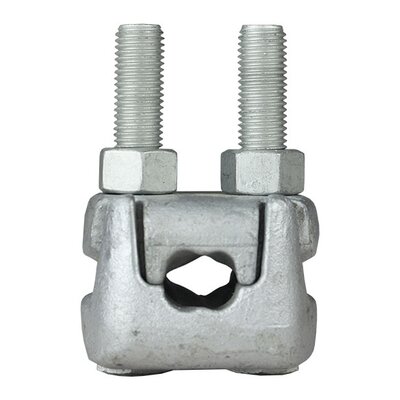

POWERTEX Wire rope grip PWRG is approved for lifting when assembly is made according to the user instructions.

It is designed to be used with 6 or 8 stranded steel wire rope with steel or fiber core with tensile strength up to 1960 N/mm2.

Correctly mounted the assembly will withstand 80% of the steel wire ropes minimum breaking strength.

  • Safe - The grips are designed to assure high friction between wire rope and grip
  • Quick and easy to use – Only 3 grips needed for safe assembly
  • Quick mounting thanks to the recessed bolt head seats that hold the bolt while tightening the nuts
  • Low maintenance thanks to galvanization of grips and Dacrotized bolt and nuts
  • Features: PWRG-4, 6, 8, 10 are drop forged. PWRG-12, 16, 20, 25, 35 are casted.
  • Finish: Galvanized.
  • Warning: Not for use with compacted or hammered wire ropes. It is not recommended to use plastic covered ropes for lifting purposes with wire rope grips
Wire rope Grip POWERTEX PWRG is approved for lifting according to the assembly user instructions.
Wire rope Grip POWERTEX PWRG is approved for lifting according to the assembly user instructions.
Select a row from the table below, then click the add to cart button
Part Code Code Rope diameter
mm
Thread No. of clamps when lifting* Torque
Nm
Weight
kg/100pc
10.17PWRG04 PWRG-4 3-4 M5 3 5 5
10.17PWRG06 PWRG-6 5-6 M6 3 9 10
10.17PWRG08 PWRG-8 7-8 M6 3 9 14
10.17PWRG10 PWRG-10 9-10 M8 3 23 25
10.17PWRG12 PWRG-12 10-12.5 M8 3 23 32
10.17PWRG16 PWRG-16 13-16.5 M10 3 45 58
10.17PWRG20 PWRG-20 17-20 M12 3 75 95
10.17PWRG25 PWRG-25 21-25 M16 3 190 164
10.17PWRG35 PWRG-35 26-35 M16 3 190 370

* Minimum number of grips required to fulfill 80% of the rope MBL can vary, and must be according to local regulations (see local language).
