Swageless stainless eye terminal for safe, reliable and machine free self assembly.

  • Material: Stainless steel AISI 316.
  • Temperature range: -50°C to +100°C and briefly up to +200°C
  • Finish: High polished.
  • Warning: Read assembly instructions before use!
Lloyds-Register-TA

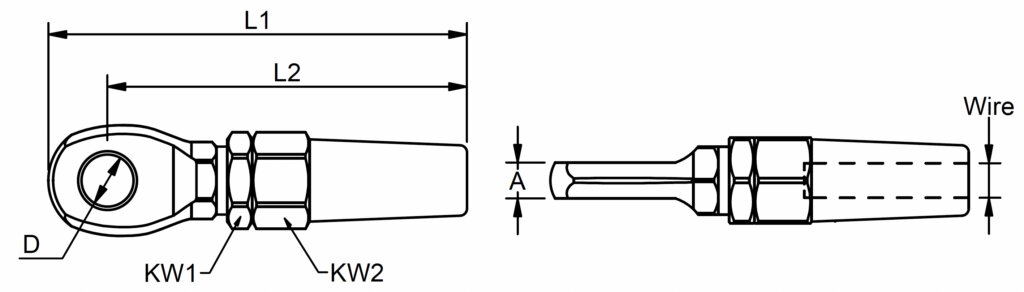

Stainless swageless terminal with eye_dwg
Select a row from the table below, then click the add to quote button
Part Code MBL Wire Ø
inch
KW1
mm
KW2
mm
Wire Ø
mm
A
mm
D1
mm
L1
mm
L2
mm
L3
mm
Weight
kg/100pc
CAD
10.07821903 0.75 1/18" 10 12 3 5,5 6,3 58 50 26,5 4
10.07821904 1.5 5/32" 13 14 4 7 8,3 68 58 31,0 7.3
10.07821905 2.18 - 14 16 5 8 10,3 81 70 37,0 9.8
10.07821906 3.7 1/4" 17 19 6 9 12,3 97 83 45,0 15
10.07821907 4.7 9/32" 18 21 7 9 12,3 105 89 50,5 21.2
10.07821908 5.6 5/16" 19 24 8 10 14,3 114 97,5 52,5 28.1
10.07821910 8.3 - 24 27 10 13 16,3 135 116 65,0 46
10.07821912 12 - 27 32 12 15 19,5 160 137 71,5 72
10.07821914 14 - 30 36 14 18 22 185 160 85,0 110
10.07821916 23 - 32 41 16 20 25 197 170 98,0 160
