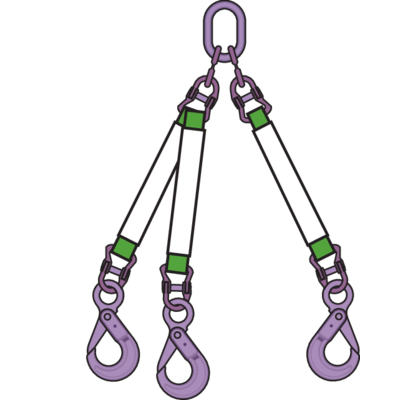

Design: Roundsling covered with extra protection sleeve and provided with strengthen eye in each end, assembled as tool in combination with lifting details in grade 8. Max manufacturing length 20 m.


Stretch with working load: 2-3%.

Length tolerance: Nominal length ±2%.

  • Material: Polyester. Resistant to most acids but not strong alkalizes.
  • Marking: The slings are provided with a label with manufacturer’s symbol, working load limit (WLL) and CE marking.
  • Temperature range: app. -40° - +100°C.
  • Standard: EN 1492-2
  • Safety factor: Forge 4:1 and round sling 7:1.
  • Grade: 10
RR-376_colour_e_225mm_2
kl_376_lom.eps_225mm_2
Select a row from the table below, then click the add to quote button
Art No WLL
Ton
Working load limit (WLL) in tons 45°-60° Colour CAD
RR37601 2.1 1,5 violet
RR37602 4.2 3 green
RR37603 6.3 4,5 yellow
RR37604 8.4 6 grey
RR37605 10.5 7,5 red
RR37606 12.6 9 brown
RR37608 16.8 12 blue
RR37610 21 15 orange
Other dimensions, WLL and special length on request.
