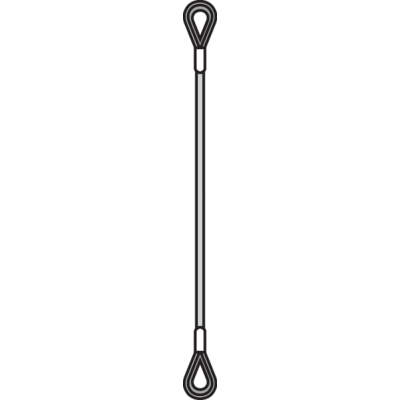

Wire Rope Lifting Sling WLS-113

Standard steel wire rope construction: 6x36WS IWRC, 1960N/mm2*
(*ø 3mm - ø 7mm rope constrcution: 6x19M WSC 1960 N/mm2)
Design: Both ends mechanically spliced thimbles.

Load table at Technical Data -> Show table

Please specify the needed (working) length and eye diam/length with your requ

Show more

Show table
Product number:

Standard steel wire rope construction: 6x36WS IWRC, 1960N/mm2*
(*ø 3mm - ø 7mm rope constrcution: 6x19M WSC 1960 N/mm2)
Design: Both ends mechanically spliced thimbles.

Load table at Technical Data -> Show table

Please specify the needed (working) length and eye diam/length with your request.

Other rope construction and/or end-terminations such as master links, shackles, hooks, etc.. possible on request. In that case, please check our website for more standard wire rope slings. You can also contact us to discuss the possible options or specify it with your request.




Steel Wire Rope Sling - Steel Core 2

ø 3 mm - 7 mm 6x19M WSC -1960N/mm2 / ø8 mm and up 6X36WS IWRC -1960N/mm2  - EN 13414-1

Safety Factor 5:1

Rope dia Ø 1-part 2-part 3-4-part Endless
rakt snarat u-form 2-parting-0-45 2-parting-45-60 3-parting-0-45 3-parting-45-60 andlos-rakt andlos-snarat andlos-uform
Straight pull Choke hitch Basket hitch 0°−45° 45°−60° 0°−45° 45°−60° Straight pull Choke hitch Basket hitch
mm Working load limit (WLL) in tons
3 0,12 0.09 0.23 0,16 0,12 0,25 0,18 0,23 0,19 0,47
4 0,21 0,17 0,42 0,29 0,21 0,44 0,31 0,42 0,33 0,84
5 0,32 0,26 0,65 0,45 0,32 0,68 0,49 0,65 0,52 1,30
6 0,47 0,37 0,94 0,66 0,47 0,98 0,70 0,94 0,75 1,87
7 0,64 0,51 1,28 0,89 0,64 1,34 0,96 1,28 1,02 2,56
8 0,82 0,66 1,64 1,15 0,82 1,72 1,23 1,64 1,31 3,28
9 1,04 0,83 2,07 1,45 1,04 2,18 1,56 2,07 1,66 4,15
10 1,28 1,02 2,56 1,79 1,28 2,69 1,92 2,56 5,05 5,12
11 1,55 1,24 3,10 2,17 1,55 3,25 2,32 3,10 2,48 6,20
12 1,84 1,47 3,67 2,57 1,84 3,85 2,75 3,67 2,94 7,34
13 2,17 1,73 4,33 3,03 2,17 4,55 3,25 4,33 3,47 8,66
14 2,51 2,01 5,03 3,52 2,51 5,28 3,77 5,03 4,02 10,06
16 3,29 2,63 6,57 4,60 3,29 6,90 4,93 6,57 5,26 13,14
18 4,15 3.,32 8,30 5,81 4,15 8,71 6,22 8,30 6,64 16,59
20 5,12 4,10 10,24 7,17 5,12 10,75 7,68 10,24 8,19 20,48
22 6,20 4,96 12,41 8,69 6,20 13,03 9,31 12,41 9,93 24,82
24 7,38 5,90 14,76 10,33 7,38 15,5 11,07 14,76 11,81 29,51
26 8,66 6,93 17,33 12,13 8,66 18,19 13,00 17,33 13,86 34,65
28 10,04 8,03 20,08 14,06 10,04 21,08 15,06 20,08 16,06 40,16
32 13,12 10,50 26,25 18,37 13,12 27,56 19,69 26,25 21,00 52,49
36 16,59 13,67 33,19 23,23 16,59 34,84 24,89 33,19 26,55 66,37
40 20,56 16,45 41,11 28,78 20,56 43,17 30,84 41,11 32,89 82,23
44 24,78 19,82 49,56 34,69 24,78 52,04 37,17 49,56 39,65 99,12
48 29,55 36,64 59,10 41,37 29,55 62,06 44,33 59,10 47,28 118,21
52 34,69 27,75 69,38 48,57 34,69 72,85 52,04 69,38 55,51 138,76
Factor (KL) 2 0,8 2 1,4 1 2,1 1,5 2 1,6 4
