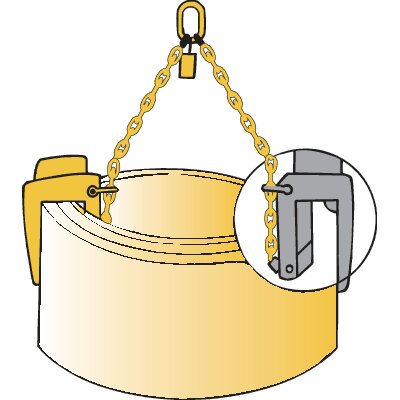

General: We manufacture two standard sizes of well-ring lifters for lifting and handling of concrete well rings. These have a grab width of 60–120 mm and 100–200 mm, respectively, which cater for the standard well sizes that exist on the market. High friction teeth helps to prevent slidning on ice or mud. Both sizes are available with two or three grabs.
Supplied complete with chain sling, 1,5m chain per leg. If large well rings are to be handled, they will balance better if three grabs are used. Designed for well ring diameters 60 - 180 cm. Handle for easy attach and release.

Select a row from the table below, then click the add to quote button
Part Code WLL
Grab width
Number of grabs CAD
16.85KRT2P 2 60-120 2
16.85KRT2I 2 100-200 2
16.85KRT3P 3 60-120 3
16.85KRT3I 3 100-200 3

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
