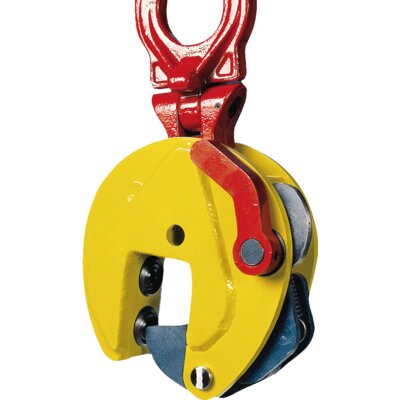

Vertical Lifting Clamp TSHPU

Clamp for vertical lifting, handling and transporting of Holland Profile (HP) shipbuilding structures from all positions. Lifting of longer sections should be done with a spreader beam.

Features:

  • With articulated lifting shackle for universal lifting flexibility at various angles
  • The articulated lifting shackle guarantees a pressure grip in every position, even when side loading up to 90 degrees . Note a lower load capacity when lifting in an angle higher than 45 degrees .
  • Standard with 2 pivots for extra powerful clamping force
  • Always equipped with a safety mechanism, ensuring the clamp does not slip when lifting force is applied VertiCal lifting and when load is being lowered
  • Clamp is locked in closed as well as open position
  • Lightweight design for easy handling
  • Tough quality heavy duty welded shell body
  • Maintenance-friendly, easy to exchange parts which are available upon request
  • Marking: According to standard, CE-marked, Working load limit, jaw capacity.
  • Standard: EN 13155
  • Note: Min. load is 10% of max. WLL.

Filters

Show more filters

Select the variant of your choice. Add it in the cart for purchase or request quotation.
