Terrier

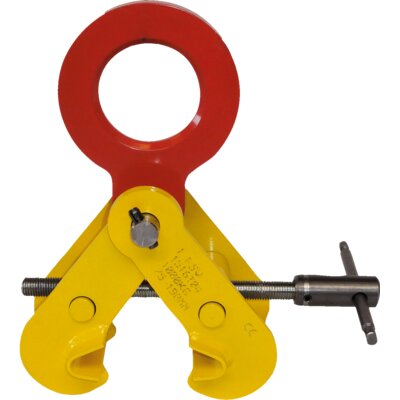

Beam clamp for horizontal lifting and transporting of steel beams and structures. Can also be attached upside down and be used as a (temporary) lifting point. Various models available:

  • FSV standard clamp
  • FSVS clamp with enlarged jaw opening

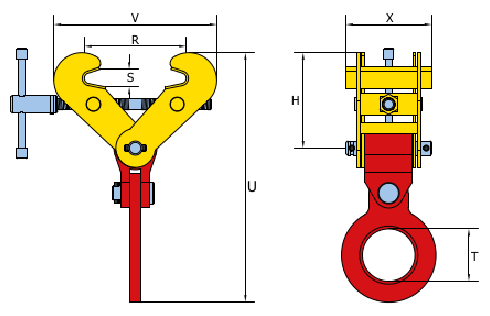

  • FSVSU clamp with enlarged opening, reinforced body and articulated lifting eye.

Features:

  • Equal opening and closing of both jaws for simple and quick assembly
  • Welded jaw plates for better positioning and less damaging of load
  • Lightweight, maintenance-friendly, heavy duty body
  • Marking: According to standard, CE-marked, Type, serial number, WLL, Jaw opening.
  • Temperature range: - 40°C to +100°C.
  • Standard: EN 13155
Select a row from the table below, then click the add to cart button
Part Code Code WLL
ton
Beam width
mm
S
mm
T
mm
V-max U-max H
mm
X
mm
Weight
kg
CAD
16.02851400 1 FSV 1 75-190 30 73.5 357 345 113-192 120 5
16.02851500 2 FSV 2 75-190 30 73.5 357 345 113-192 120 5
16.02962000 2 FSVS 2 75-420 30 73.5 540 428 114-275 120 7
16.02851600 3 FSV 3 75-190 30 73.5 357 345 113-192 120 5
16.02963000 3 FSVS 3 75-420 30 73.5 540 428 114-275 120 7
16.02956300 3 FSVSU 3 75-420 30 73.5 540 486 114-275 120 8
16.02851700 4 FSV 4 150-300 40 80 450 422 185-240 180 15
16.02964000 4 FSVS 4 150-560 40 80 708 545 173-362 180 18
16.02956400 4 FSVSU 4 150-560 40 80 708 613 173-362 180 21
16.02851800 5 FSV 5 150-300 40 80 450 422 185-240 180 15
16.02965000 5 FSVS 5 150-560 40 80 708 545 173-362 180 19.5
16.02956500 5 FSVSU 5 150-560 40 80 708 622 173-362 180 22
16.02851110 10 FSV 10 350-450 95 88 695 653 400-447 200 50

Download CAD

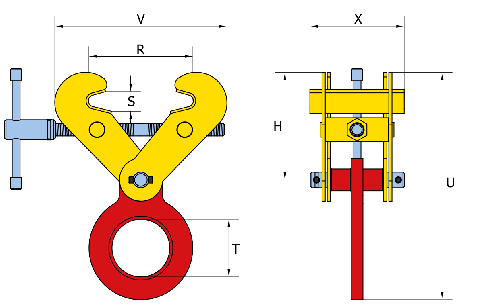

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
