Thern

544 kg capacity portable Davit Crane

  • Load ratings up to 544 kg
  • Portable, heaviest component 16,3 kg
  • Rugged and affordable
  • Manual or power winch operation
  • 360° rotation
  • Boom adjustable to meet wide range of height and reach combinations
  • Easy, No-Tools Assembly/Disassembly (all individual components less than 16.5 kg)
  • Variety of bases
  • 2-Year warranty
  • Proof of load 125% of WLL (Optional)

Machinery directive: 2006/42/EC as amended by Directive 95/16/EC.

  • Marking: CE-marked
  • Finish: Powder coat

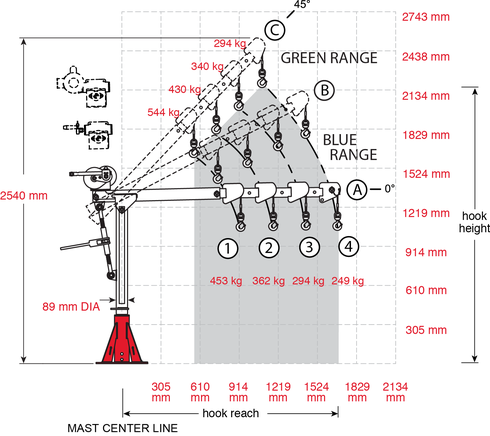

Pedestal Sweep Flush Sweep
Select a row from the table below, then click the add to cart button
Part Code Code WLL
ton
Weight
kg
13.155PT10A2 5PT10 0,54 56

Finish: galvanized, stainless 304 & 316 and three part epoxy can be ordered up on request

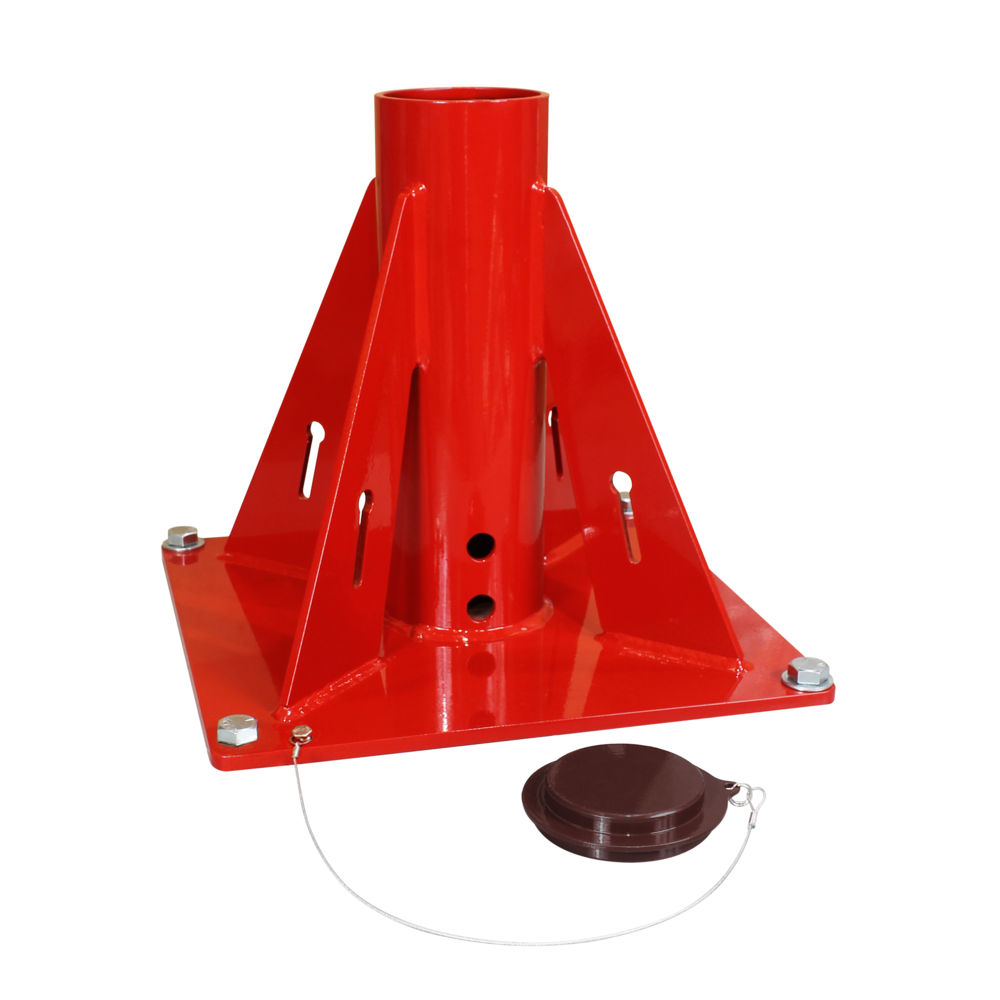

Commander 2000, 5PT20 with Pedestal Base

Boom Position A/B Range WLL (KG) Hook Reach (mm) Hook height (mm)* Lift below floor level** min-max in meters
1st Layer Mid Drum Full Drum
A1 907 680 544 1168 1092 0.0-19.2
A2 725 680 544 1473 1092 0.0-19.2
A3 589 589 544 1778 1092 0.0-19.2
A4 498 498 498 2082 1092 0.0-19.2
B1 907 680 544 711 1803 0.0-19.2
B2 861 680 544 914 2032 0.0-19.2
B3 680 680 544 1143 2235 0.0-19.2
B4 589 589 544 1346 2463 0.0-19.2

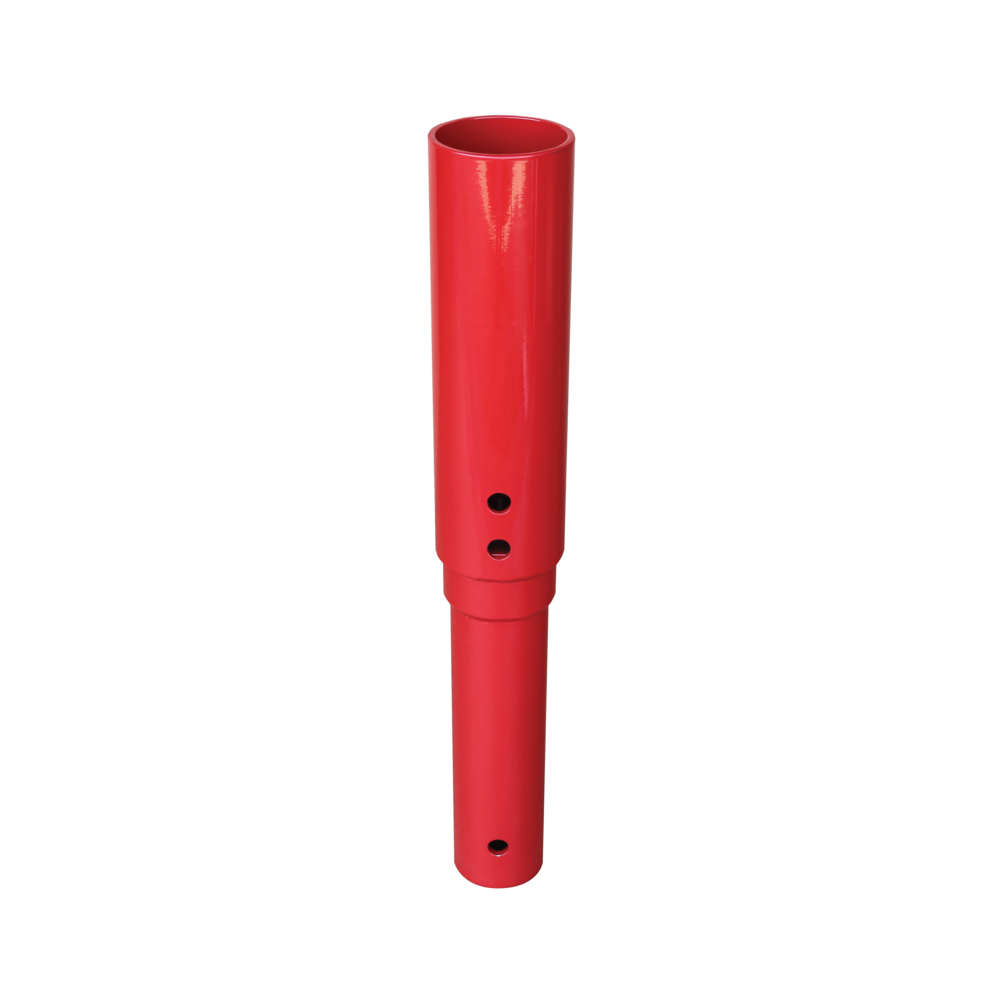

* Optional Base extension can provide 380mm more hook height

Commander 2000, 5PT20 with Flush or Wall base

Boom Position A/B Range WLL (KG) Hook Reach (mm) Hook height (mm)* Lift below floor level** min-max in meters
1st Layer Mid Drum Full Drum
A1 907 680 544 1168 736 0.0-19.2
A2 725 680 544 1473 736 0.0-19.2
A3 589 589 544 1778 736 0.0-19.2
A4 498 498 498 2082 736 0.0-19.2
B1 907 680 544 711 1447 0.0-19.2
B2 861 680 544 914 1676 0.0-19.2
B3 680 680 544 1143 1879 0.0-19.2
B4 589 589 544 1346 2108 0.0-19.2

* Optional Base extension can provide 380mm more hook height
