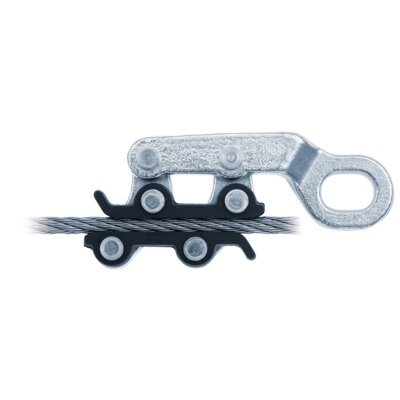

General: For installation and pulling of ropes, strand and steel or copper cables. The enclosed spring construction maintains the grip on the rope even when the rope is unloaded.
Design: Forged.

  • Warning: Not for lifting!
4101_225mm
Select a row from the table below, then click the add to quote button
Art No Code WLL
Ton
MBL
ton
For rope Ø (mm) Stay rope mm² Eye size (mm) Weight
kg
CAD
10.4012504 4101 0.5 1.25 1-5 1-16 20 0.25
10.4012511 4102 1 2.5 3-9 6-35 22 0.85
10.4012528 4103 1.7 4.5 4-12 16-70 27 1.27
10.4012535 4104 3 7 6-18 50-150 25x38 1.83
10.4012542 4105 3.5 8 10-28 90-400 30x40 4
10.4012559 4106 4 9 20-40 240-800 30x40 6
