Bridon
  • Ordinary right hand lay
  • Ordinary left hand lay
  • Bright finish
  • Galvanized
  • Compacted strands
  • Not to be used with swivel

Typical applications: When a high MBL is required for a multipart reeving hoist system: electric hoists, twin hoist systems (right and left ropes), boom hoist and pendant rope for mobile cranes and tower cranes.

Fill factor: 10 mm - 0,74, 11-32 mm - 0,73, 33-50 mm - 0,71.
Standard: EN 12385-4
ISO 4309 Rope Category No: 10mm RCN.04, 11-22mm RCN.09, 24-50mm RCN.11

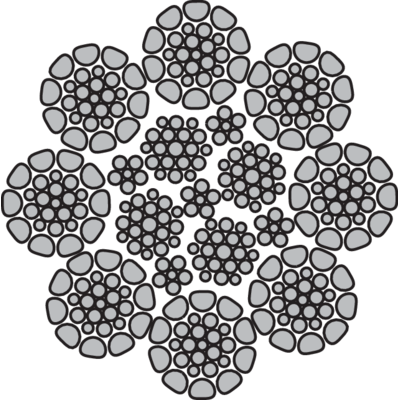

  • Rope construction: 8 compacted strands closed in a parallel lay together with the inner core strands.
  • Note: Due to its particular full unilay parallel closing (outer/inner strands), this rope is very sensible to the rotation and fleet angle. Cannot be used for big lifting heights, unguided loads a
