• Ordinary right hand lay
  • Galvanized
  • Not to be used with swivel

ISO 4309 Rope Category No: All Diameters RCN.05

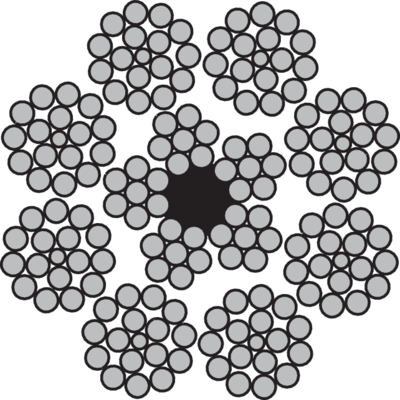

  • Rope construction: 8x17-IWRC.
  • Marking: According to standard
  • Standard: EN 12385-4
  • Fill factor: 0.53
  • Winch rope Wire for winches
  • Overhead cranes For the use with overhead crane
8x17-IWRC[new]_225mm
Select a row from the table below, then click the add to cart button
Part Code Rope diameter
mm
Steel Area
mm²
Min. breaking force
kN
1960 N/mm²
Min. breaking force
kN
1770 N/mm²
Weight
kg/100m
01.G10171080G 8 26,6 39,1 24
01.G10171100E 10 41,6 61,1 55,2 37
