• Ordinary right hand lay
  • Galvanized
  • Not to be used with swivel


ISO 4309 Rope Category No: All Diameters RCN.02

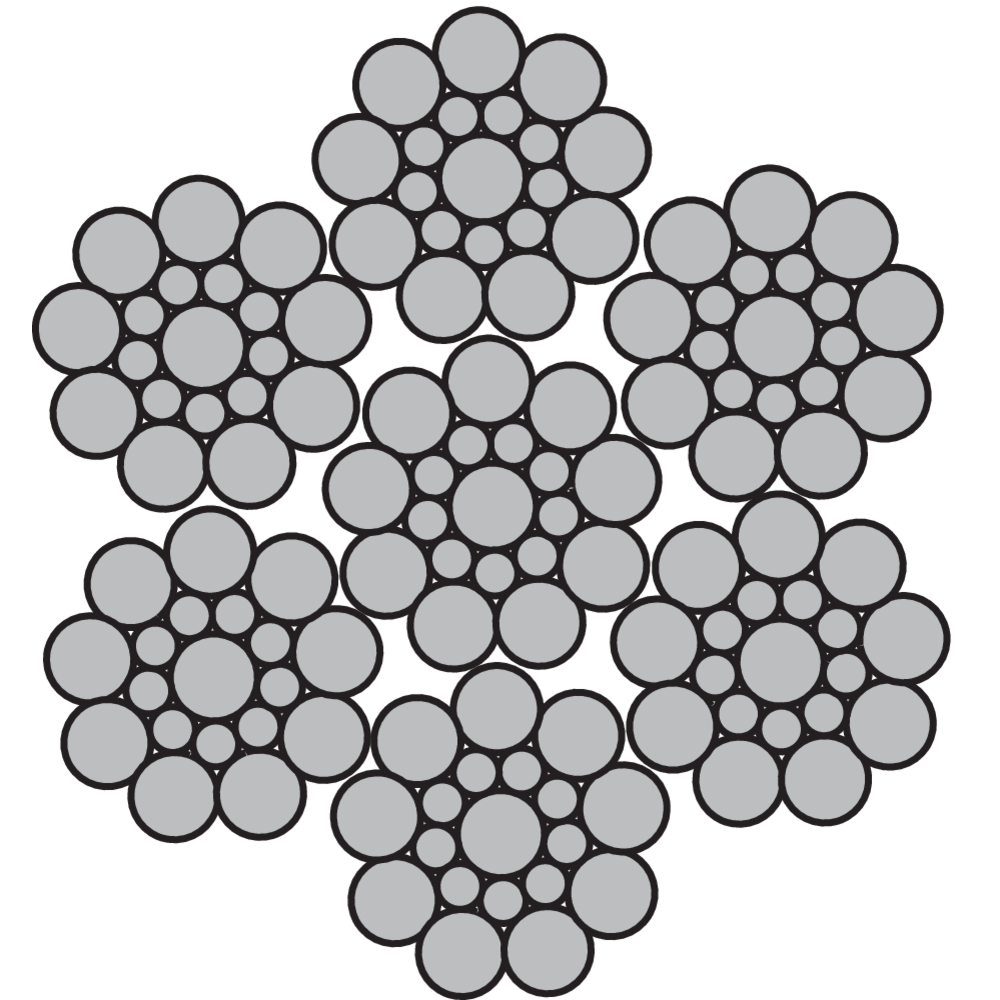

  • Rope construction: 6x19-WSC Seale.
  • Marking: According to standard
  • Standard: EN 12385-4
  • Slings Sling wire rope
  • Winch rope Wire for winches
  • Stay rope Stay rope
  • Overhead cranes For the use with overhead crane
6x19-WSC Seale_225mm
Select a row from the table below, then click the add to cart button
Part Code Rope diameter
mm
Steel Area
mm²
Min. breaking force
kN
1770 N/mm²
Min. breaking force
kN
1960 N/mm²
Weight
kg/100m
01.G10133060E-S 6 16,2 22,7 25,1 14,4
01.G10133070E-S 7 22 30,9 34,2 19,6
01.G10133080E-S 8 28,7 40,3 44,7 25,6
01.G10133090E-S 9 36,4 51 56,5 32,4
01.G10133100E-S 10 44,9 63 69,8 40
01.G10133110E-S 11 54,3 76,2 84,4 48,4
01.G10133120E-S 12 64,7 90,7 101 57,6
Other dimensions on request. Filling factor 0,57
