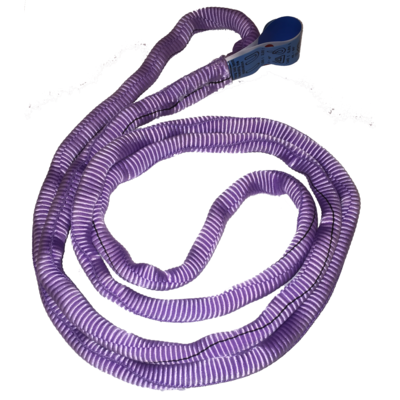

General: A very compact type of roundsling, easy to use, especially on smaller hooks. Besides its compacted design another advantage is its stiffness, which is provided by the elasticated weft in sleeving. This makes it easier for the user to handle the sling when there is an need to wrap the sling around the cargo through small lifting points or underneath the lifted cargo where spaces is limited. The sling is also easy to use in confined spaces or aloft.
Elongation: 2-3%.



  • Material: 100% Polyester.
  • Temperature range: Approx. -40°C up to +100°C.
  • Standard: EN 1492-2
  • Safety factor: 7:1.
Select a row from the table below, then click the add to quote button
Art No Diameter
mm
WLL
Ton
Colour WLL choke hitch (ton) WLL basket hitch 0º (ton) WLL basket hitch 0º-45º (ton) WLL basket hitch 45º-60º (ton) CAD
12.203100XXX 14 1 Violet 0,8 2 1,4 1
12.203200XXX 18 2 Green 1,6 4 2,8 2
12.203300XXX 22 3 Yellow 2,4 6 4,2 3
12.203500XXX 28 5 Red 4 10 7 5
XXX = Last 3 digits in Art No indicates the effective working length in meters (EWL). Example XXX (020) = 2 meters.
