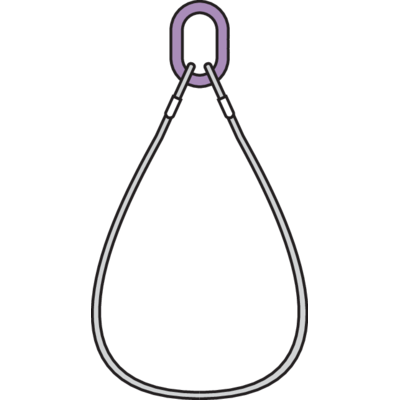

Wire Rope Lifting Sling WLS-002

Standard steel wire rope construction: 6x36WS IWRC, 1960N/mm2*
(*ø 3mm - ø 7mm rope constrcution: 6x19M WSC 1960 N/mm2)
Design: Endless with master link and mechanical aluminium spliced thimbles.

Load table at Technical Data -> Show table

Please specify the needed (working) length with yo

Show more

Show table
Product number:

Standard steel wire rope construction: 6x36WS IWRC, 1960N/mm2*
(*ø 3mm - ø 7mm rope constrcution: 6x19M WSC 1960 N/mm2)
Design: Endless with master link and mechanical aluminium spliced thimbles.

Load table at Technical Data -> Show table

Please specify the needed (working) length with your request.

Other rope constructions possible on request. In that case, please contact us to discuss the possible options or specify it with your request.

  • Note: We recommend that the sling not is bent over a diameter less than 6 times the wire rope diameter without reducing the WLL.




Steel Wire Rope Sling - Steel Core 2

ø 3 mm - 7 mm 6x19M WSC -1960N/mm2 / ø8 mm and up 6X36WS IWRC -1960N/mm2  - EN 13414-1

Safety Factor 5:1

Rope dia Ø 1-part 2-part 3-4-part Endless
rakt snarat u-form 2-parting-0-45 2-parting-45-60 3-parting-0-45 3-parting-45-60 andlos-rakt andlos-snarat andlos-uform
Straight pull Choke hitch Basket hitch 0°−45° 45°−60° 0°−45° 45°−60° Straight pull Choke hitch Basket hitch
mm Working load limit (WLL) in tons
3 0,12 0.09 0.23 0,16 0,12 0,25 0,18 0,23 0,19 0,47
4 0,21 0,17 0,42 0,29 0,21 0,44 0,31 0,42 0,33 0,84
5 0,32 0,26 0,65 0,45 0,32 0,68 0,49 0,65 0,52 1,30
6 0,47 0,37 0,94 0,66 0,47 0,98 0,70 0,94 0,75 1,87
7 0,64 0,51 1,28 0,89 0,64 1,34 0,96 1,28 1,02 2,56
8 0,82 0,66 1,64 1,15 0,82 1,72 1,23 1,64 1,31 3,28
9 1,04 0,83 2,07 1,45 1,04 2,18 1,56 2,07 1,66 4,15
10 1,28 1,02 2,56 1,79 1,28 2,69 1,92 2,56 5,05 5,12
11 1,55 1,24 3,10 2,17 1,55 3,25 2,32 3,10 2,48 6,20
12 1,84 1,47 3,67 2,57 1,84 3,85 2,75 3,67 2,94 7,34
13 2,17 1,73 4,33 3,03 2,17 4,55 3,25 4,33 3,47 8,66
14 2,51 2,01 5,03 3,52 2,51 5,28 3,77 5,03 4,02 10,06
16 3,29 2,63 6,57 4,60 3,29 6,90 4,93 6,57 5,26 13,14
18 4,15 3.,32 8,30 5,81 4,15 8,71 6,22 8,30 6,64 16,59
20 5,12 4,10 10,24 7,17 5,12 10,75 7,68 10,24 8,19 20,48
22 6,20 4,96 12,41 8,69 6,20 13,03 9,31 12,41 9,93 24,82
24 7,38 5,90 14,76 10,33 7,38 15,5 11,07 14,76 11,81 29,51
26 8,66 6,93 17,33 12,13 8,66 18,19 13,00 17,33 13,86 34,65
28 10,04 8,03 20,08 14,06 10,04 21,08 15,06 20,08 16,06 40,16
32 13,12 10,50 26,25 18,37 13,12 27,56 19,69 26,25 21,00 52,49
36 16,59 13,67 33,19 23,23 16,59 34,84 24,89 33,19 26,55 66,37
40 20,56 16,45 41,11 28,78 20,56 43,17 30,84 41,11 32,89 82,23
44 24,78 19,82 49,56 34,69 24,78 52,04 37,17 49,56 39,65 99,12
48 29,55 36,64 59,10 41,37 29,55 62,06 44,33 59,10 47,28 118,21
52 34,69 27,75 69,38 48,57 34,69 72,85 52,04 69,38 55,51 138,76
Factor (KL) 2 0,8 2 1,4 1 2,1 1,5 2 1,6 4
