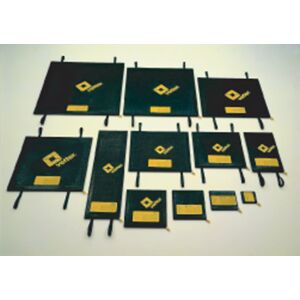

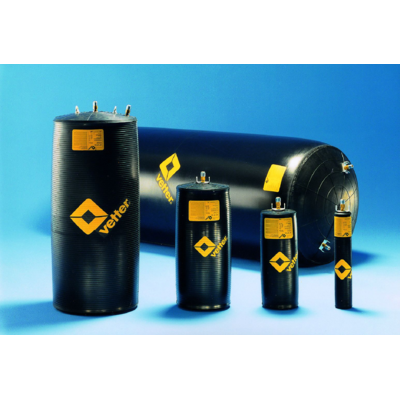

The sealing bags are suitable for all kind of pipe dimensions, models and materials. The operating preasure is between 0,5 til 6 bars depending on size and preasure in the pipe. Can be used to prevent or reroute sewagewater from reaching the groundwater or for bypass when reparing or preasure testing a pipe. Can also be used as a help when welding two pipes together by using the Vetter bag as a fix for the pipe ends.

All pipe sealing bags are available as test sealing bags with one or two bypasses. For more information please contakt your CERTEX office.

  • Material: Vulcanized reinforced rubber.
  • Temperature range: -20°C up to +90°C.
  • Note: For more information please contakt your CERTEX office.
Select a row from the table below, then click the add to cart button
Part Code Workingpressure
bar
Pipe Ø
mm
Cylinder Ø
mm
Cylinderlength
mm
Total length
mm
Testpressure bar Backpressure m VS Weight
kg
16.66RDK7/15 2,5 70-150 68 300 345 3,25 10 0,5
16.66RDK10/20 2,5 100-200 90 510 555 3,25 10 1,2
16.66RDK20/50 2,5 200-500 195 750 795 3,25 10 5
16.66RDK30/60 2,5 300-600 295 735 780 1,95 10 7
16.66RDK50/100 1,5 500-1000 450 1 110 1 155 1,95 5 17
16.66RDK60/120 1,5 600-1200 580 1 320 1 365 1,95 5 25
16.66RDK80/140 1,5 800-1400 785 1 810 1 855 1,95 5 41
16.66RDK140/170 0,5 1400-1700 1 350 1 900 2 150 0,65 2 55
16.66RDK170/200 0,5 1700-2000 1 620 1 900 2 300 0,65 2 59
