General: Weldable D-rings for lashing.


  • Material: Alloy steel. Not to be heat-treated.
  • Finish: Self-coloured.
FA011C_FA231

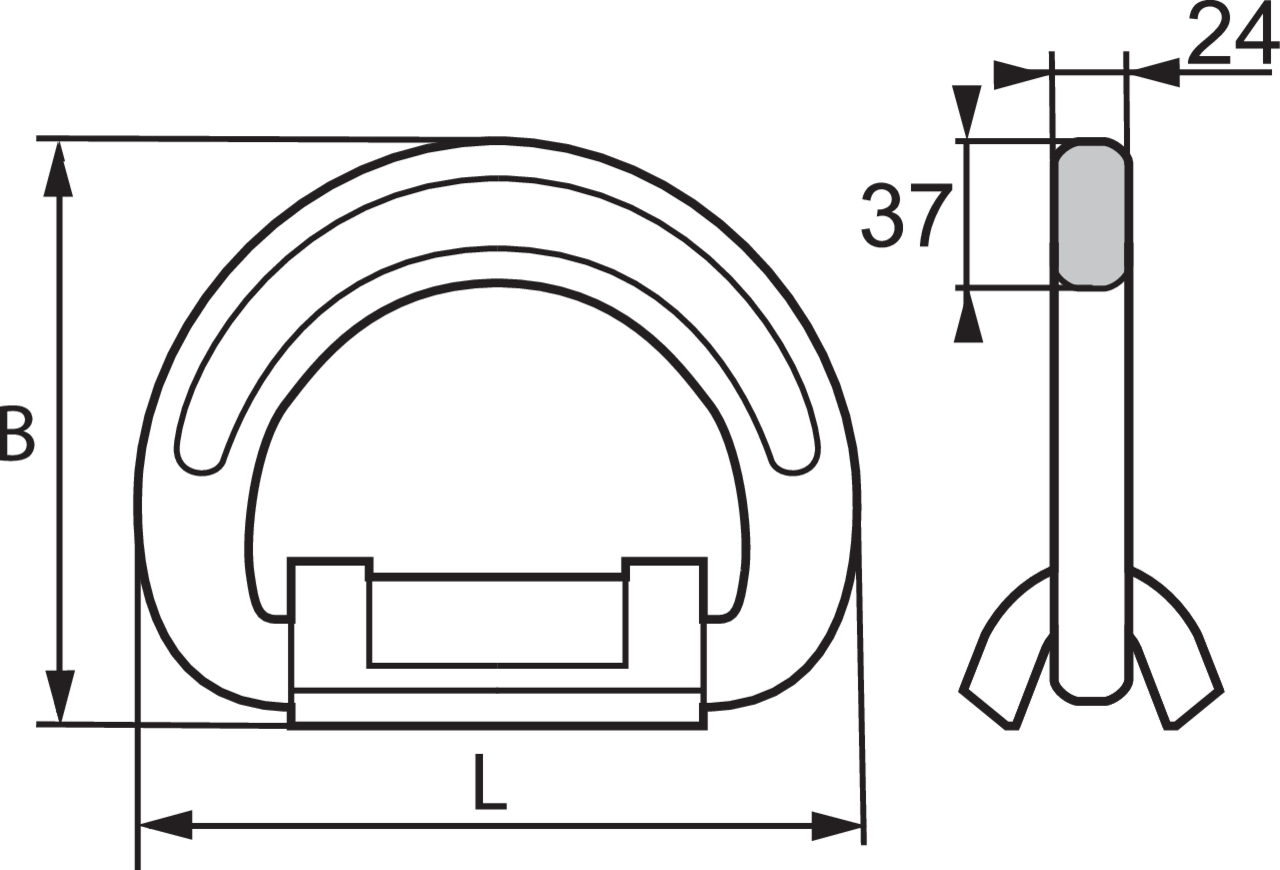

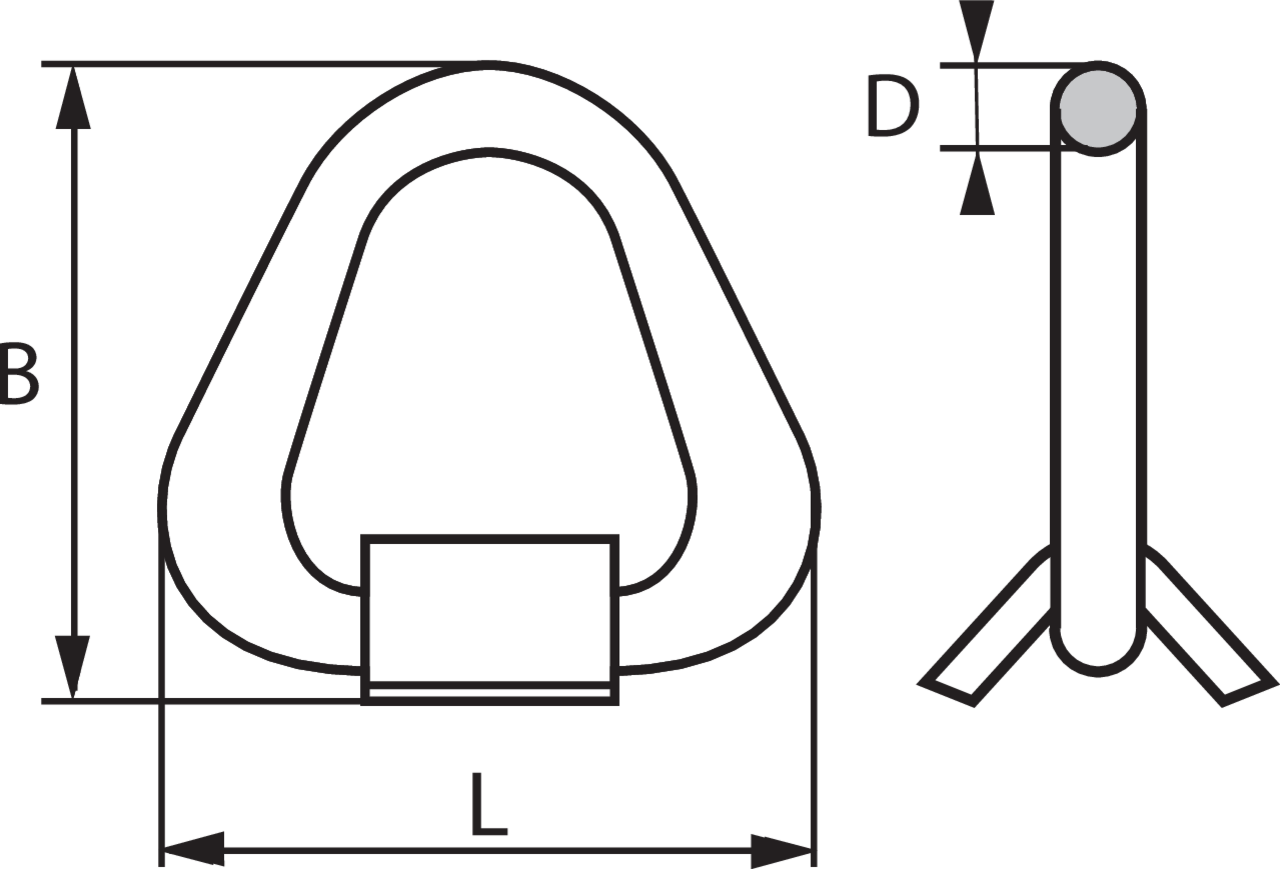

FA.50.1/FA.57.1 FA.50.1/FA.57.1 HITLEN HITLEN FA.01.1C FA.01.1C FA.23.1 FA.23.1
Select a row from the table below, then click the add to quote button

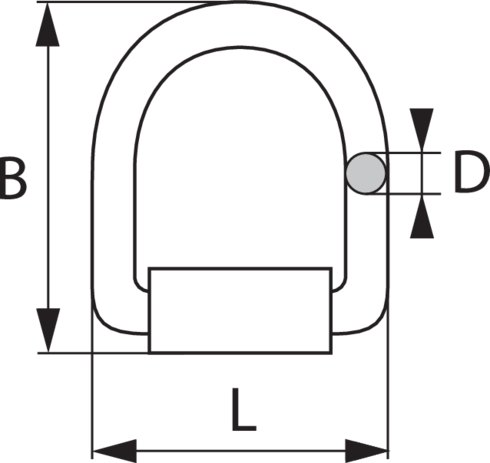

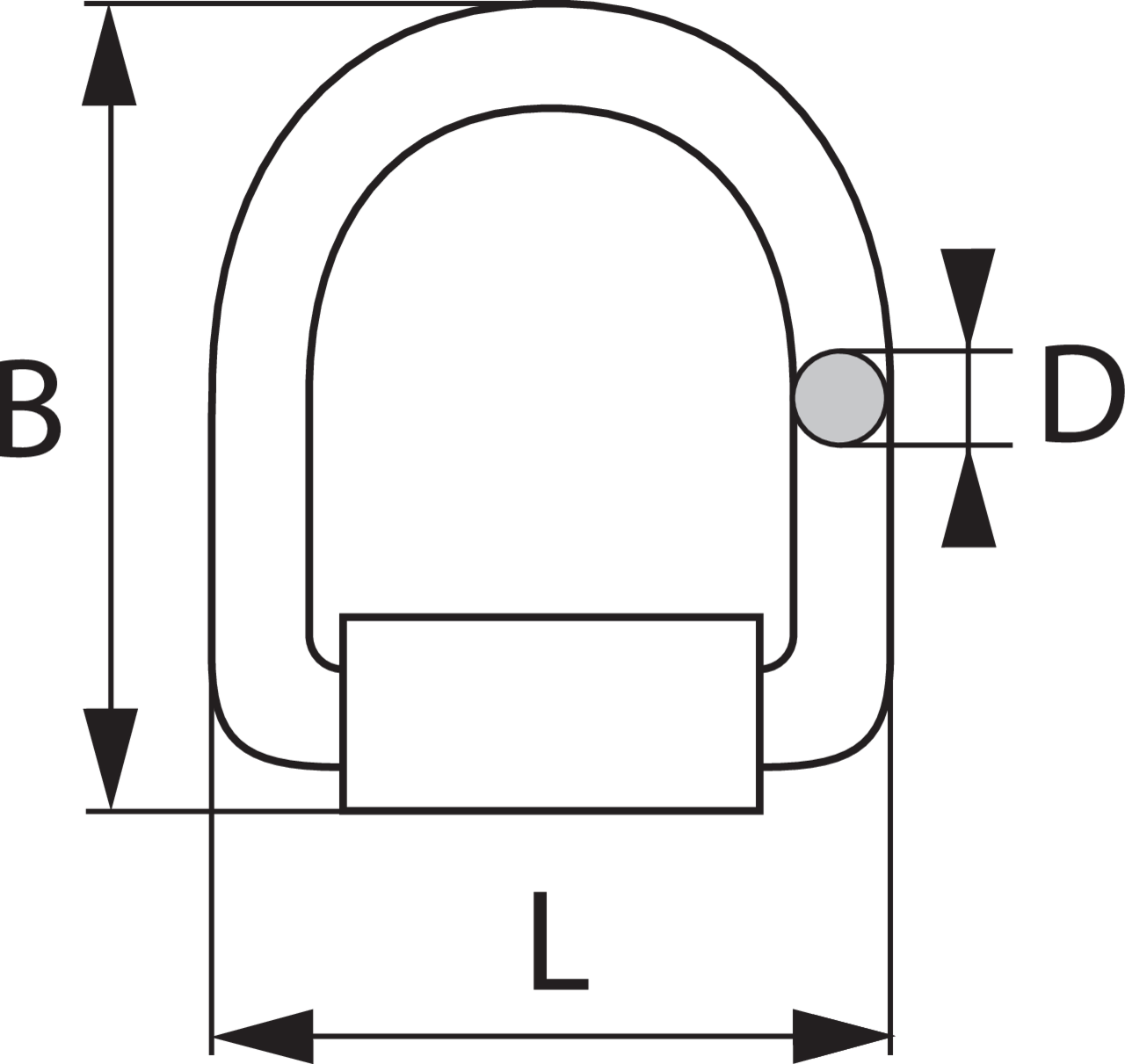

Part Code Code Breaking load (tons) Design Material Finish L
mm
B
mm
D
mm
Weight
kg
CAD
14.60FA-57-1 FA.57.1 4 Single Forged/Steelplate Self-coloured 114 114 19 1.5
14.60FA-50-1 FA.50.1 20 Single Forged/steelplate Self-coloured 127 152 26 1.8
14.99FA-01-1C FA.01.1C 36 Single Forged Self-coloured 188 145 3
14.60FA-23-1 FA.23.1 36 Single, turnfoot Forged Galvanized 6
