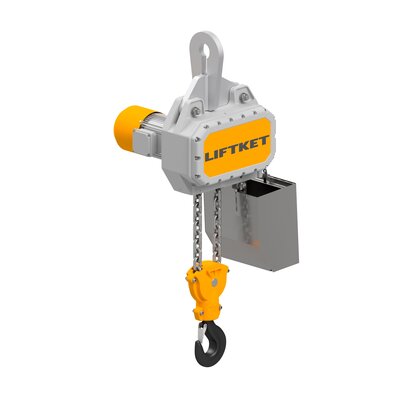

Liftket

The LIFTKET product portfolio offers you standardized hoists that can be adjusted to your requirements in a modular way, as well as highly specialized solutions. Larger lifting and operating heights are just as viable as deviating voltages and special solutions of any kind.

Features:

  • Power supply 400 V, 3 phase, 50 Hz
  • From 4.000 kg to 25.000 kg we lift everything that moves you
  • FEM ratings from Fem 1Bm to 4m (ISO M3 to M7)
  • Protection class IP55, insulation class F
  • Galvanized load chain to DIN 818-7 quality class DAT
  • A wide range of options can be selected as standard
  • Optional one or two lifting speeds from 2 to 32 m/min.
  • With heavy-duty end position switch-off as standard (at 24VAC)
  • Up to 200 meters high safely and anywhere
  • Patented safety-brake-clutch system
  • Modular hoist design
  • Simply and cost effective maintenance and repair
  • A unique ID makes it possible to trace exactly when a particular electric chain hoist was built by whom and with which materials – even after 10 years

Trolleys/Boogies: Manual or electric trolleys in various designs for each steel section girder.

  • Note: Standard version delivered with lifting eye (connection between crane and trolley). Alternatively, comes with suspension hook. Standard stock hoist with 6 m lifting height.
Select a row from the table below, then click the add to quote button
Part Code WLL
ton
Chain falls Duty rating % ED Class ISO/FEM Lifting speed at 50 Hz
m/min
Power of lifting motor at 50 Hz kW Load chain
mm
Weight
kg
CAD
13.05ST0400015614-03 4 1 60/40 M5 / 2m 5,6/1,4 6,0/1,3 16x45 224
13.05ST0500015614-03 5 1 60/40 M4 / 1Am 5,6/1,4 6,0/1,3 16x45 224
13.05ST0600015614-03 6 1 60/40 M3 / 1Bm 5,6/1,4 6,4/1,6 16x45 224
13.05ST0800022807-03 8 2 60/40 M5 / 2m 2,8/0,7 6,0/1,3 16x45 246
13.05ST0800016416-03 8 1 25/10 M5 / 2m 6,4/1,6 12,5/3,1 23,5x66 517
13.05ST1000022807-03 10 2 60/40 M4 / 1Am 2,8/0,7 6,0/1,3 16x45 246
13.05ST1000016416-03 10 1 25/10 M4 / 1Am 6,4/1,6 12,5/3,1 23,5x66 517
13.05ST1300022807-03 12 2 60/40 M3 / 1Bm 2,8/0,7 6,4/1,6 16x45 246
13.05ST1300016416-03 12 1 25/10 M3 / 1Bm 6,4/1,6 12,5/3,1 23,5x66 517
13.05ST1600023208-03 16 2 25/10 M5 / 2m 3,2/0,8 12,5/3,1 23,5x66 613
13.05ST2000023208-03 20 2 25/10 M4 / 1Am 3,2/0,8 12,5/3,1 23,5x66 613
13.05ST2500023208-03 25 2 25/10 M3 / 1Bm 3,2/0,8 12,5/3,1 23,5x66 613

Part Code = last two digits indicates the lifting height: 03 = 3 m lifting height
* Weight with 3 m lift chain

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

Get CAD
Download
WLL A B C G G2 ø N J
(ton) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
4 567 183 434 825 901 65 42
5 567 183 434 825 901 65 42
6 567 183 434 825 901 65 42
8 567 183 434 918 994 65 50
8 700 423 556 1153 1266 65 50
10 567 183 434 918 994 65 50
10 700 423 556 1153 1266 65 50
12 567 183 434 918 994 65 50
12 700 423 556 1153 1266 65 50
16 700 423 556 1456 1703 65 67
20 700 423 556 1456 1703 65 67
25 700 423 556 1456 1703 65 67
