Heavy Duty Air Chain Hoists Red Rooster TMH

Red Rooster

These RED ROOSTER Air Chain Hoists are especially developed for heavy industrial applications. Robust cast steel body. Standard with load limiter.

Standard features:

  • Precise variable speed control (cord- and pendant control).
  • Optimum control of the load, very precise positioning.
  • Compact design.
  • Endstop system.
  • Load limiter built-in without loss of headroom.
  • Cord control or pendant control.
  • Low noise level.
  • Air pressure 0,4 - 0,63 MPa (4 - 6,3 Bar).

Optional:

  • Marine Specification/Corrosion resistant
  • Paint systems from C2 - Industrial to C5 - Offshore specification (Red finish as standard. Other RAL colours available on request).
  • Choice of pendants.
  • Radio control pendant for electro pneumatic controls.
  • Control systems.
  • Chain collectors (PVC, galvanised or stainless steel).
  • Various types of hook or clevis available.
  • Air supply systems and valves.
  • Air Service unit.
  • Piped away exhaust air.
  • In house design for "specials".
  • Festoon systems.
  • Main air shut off valve.

ATEX:

  • According to EC Directive 94/9/EC (Ex Classification)

Recommended:
We highly recommend the use of an SMC air treatment unit. (Sold seperatly.)

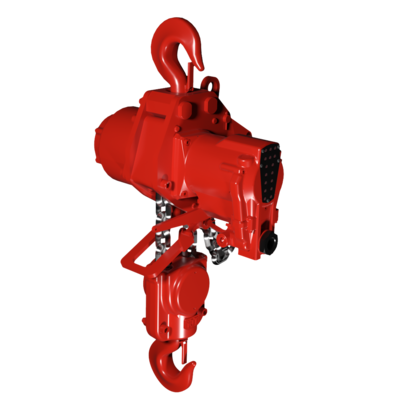

Heavy Duty Air Chain Hoists Red Rooster TMH TMH 10 t
Heavy Duty Air Chain Hoists Red Rooster TMH TMH 15 t
Heavy Duty Air Chain Hoists Red Rooster TMH TMH 20 t
Product Image 3
Select a row from the table below, then click the add to quote button
Part Code WLL
ton		 Chain falls Air consumption lifting (l/sec) Air consumption lowering (I/sec) Lifting speed with max.load
m/min		 Lowering speed with max.load
m/min		 Weight at 3m HOL
kg		 Lifting speed without load
m/min		 CAD
16.30TMH-10C 10 2 58.3 71.7 1.6 3.2 206 3.3
16.30TMH-10P2E 10 2 58.3 71.7 1.6 3.2 206 3.3
16.30TMH-15C 15 3 58.3 71.7 1.05 2.1 316 2.2
16.30TMH-15P2E 15 3 58.3 71.7 1.05 2.1 316 2.2
16.30TMH-20C 20 4 58.3 71.7 0.8 1.6 466 1.6
16.30TMH-20P2E 20 4 58.3 71.7 0.8 1.6 466 1.6
16.30TMH-25P2E 25 2 108 180 1.4 3 581 2.7
16.30TMH-25C2 25 2 108 180 1.4 3 581 2.7
16.30TMH-30C2 30 2 108 167 1 2.7 581 2.7
16.30TMH-30P2E 30 2 108 167 1 2.7 581 2.7
16.30TMH-37.5/C3 37.5 3 108 180 1 2 1,300 1.8
16.30TMH-37.5/P3E 37.5 3 108 180 1 2 1,300 1.8
16.30TMH-45/C3 45 3 108 167 0.65 1.8 1,300 1.8
16.30TMH-45/P3E 45 3 108 167 0.65 1.8 1,300 1.8
16.30TMH-50C4 50 4 108 180 0.7 1.5 1,800 1.3
16.30TMH-50P4E 50 4 108 180 0.7 1.5 1,800 1.3
16.30TMH-60P4E 60 4 108 167 0.5 1.3 1,800 1.3
16.30TMH-60C4 60 4 108 167 0.5 1.3 1,800 1.3
16.30TMH-75C6 75 6 108 180 0.45 1 2,500 0.8
16.30TMH-75P6E 75 6 108 180 0.45 1 2,500 0.8
16.30TMH-100P8E 100 8 108 180 0.7 1.06 3,200 1.3
16.30TMH-100C8 100 8 108 180 0.35 0.75 3,200 0.65
*1 Hoist with shackles instead of hooks

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

Get CAD
Download

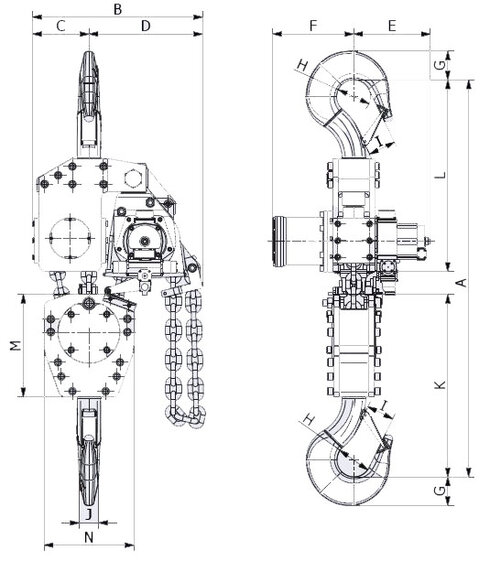

Type A B C D E F H Ø I
TMH-10C 850 582 287 298 280 188 60 40
TMH-10P2E 850 582 287 298 280 188 60 40
TMH-15C 1000 565 265 300 200 435 84 58
TMH-15P2E 1000 565 265 300 200 435 84 58
TMH-20C 1150 715 250 365 350 430 110 78
TMH-20P2E 1150 715 250 365 350 430 110 78
TMH-25C2 1290 566 343 223 352 356 100 71
TMH-25P2E 1290 566 343 223 352 356 100 71
TMH-30C2 1290 566 343 223 352 356 100 71
TMH-30P2E 1290 566 343 223 352 356 100 71
TMH-37,5/C3 1440 708 352 356 557.5 557.5 125 90
TMH-37,5/P3E 1440 708 352 356 557.5 557.5 125 90
TMH-45/C3 1440 708 352 356 557.5 557.5 125 90
TMH-45/P3E 1440 708 352 356 557.5 557.5 125 90
TMH-50C4 1820 805 370 435 515 515 143 100
TMH-50P4E 1820 805 370 435 515 515 143 100
TMH-60C4 1820 805 370 435 515 515 143 100
TMH-60P4E 1820 805 370 435 515 515 143 100
TMH-75C6 1800 707 269 438 600 600 140 115
TMH-75P6E 1800 707 269 438 600 600 140 115
TMH-100C8 1876 1360 269 438 678 682 160 130
TMH-100P8E 1876 1360 269 438 678 682 160 130
