General: Instead of ladders and scaffolding, baskets are often a better solution for temporary jobs. Our range of standard baskets are suitable for the majority of fork lifts on the market. Only work of a temporary nature, such as maintenance, inspection and survey work, may be carried out.
Design: Load-bearing welded hollow-beam construction with scuff plate, and nonslip flooring of expanded metal. The basket has a protective grille on the fork lift frame, tubular handrails, a lockable gate, and a locking mechanism for counterbalance truck.


Proof: Function tested.


  • Material: Hollow-beam and plate of high-strength structural steel.
  • Marking: Sign according to standard SS 3628.
  • Finish: Yellow painted.
  • Note: Before use basket and fork lift has to be initially inspected together.

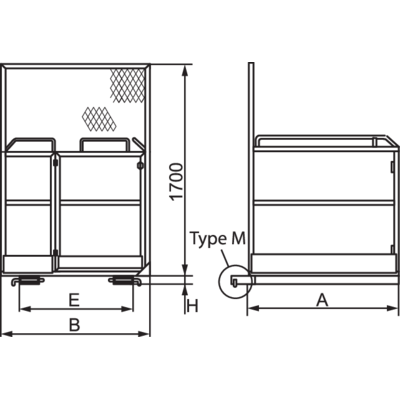

Tk-510_e_225mm
Tk-510_e_225mm tk_510m_micke_225mm
Select a row from the table below, then click the add to cart button
Part Code Code WLL
ton
Door type Locking device* Forktubes
mm
Basket weight
kg
Max. number of persons A
mm
B
mm
E
mm
H
mm
Weight
kg
19.50TK510 TK-510 0,34 Gate M 155x60 160 2 1 200 1 200 894 70 500
* Locking device M (counterbalanced fork lift for forged forks. The spring locks behind the "fork knee".
