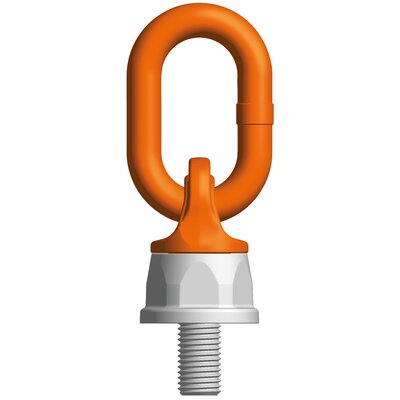

Lifting Eye Pewag PLDW

Ball-bearing 360° under load rotatable lifting point. High resistant lifting eye 180° movable. The special screws are 100% crack-tested as well as protected against corrosion. The table with the load capacities depending on the method of lifting as lifting gear, number of legs and angle of inclina

Show more

Log in to webshop
Product number:

Ball-bearing 360° under load rotatable lifting point. High resistant lifting eye 180° movable. The special screws are 100% crack-tested as well as protected against corrosion. The table with the load capacities depending on the method of lifting as lifting gear, number of legs and angle of inclination is a part of the user manual and packed together with each lifting point.

Permissible usage

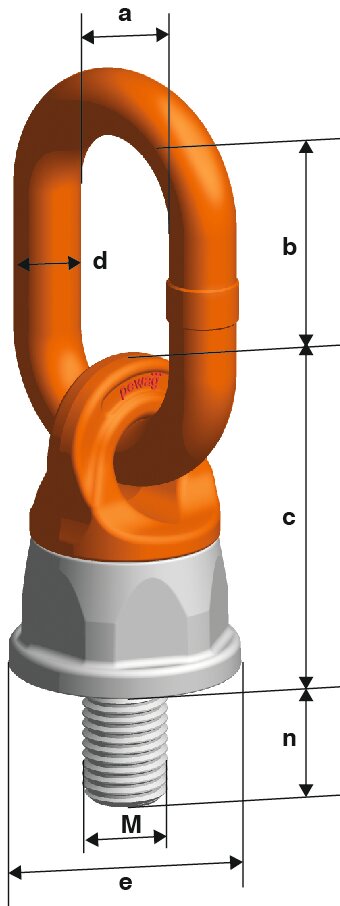

Load capacity acc. to the inspection certificate respectively table of WLL in the mentioned directions of pull (see picture 1).

Non permissible usage
Make sure when choosing the assembly that improper load can not arise e.g. if:

  • The direction of pull is obstructed
  • Direction of pull is not in the foreseen area (see picture 2)
  • Loading ring rests against edges or load

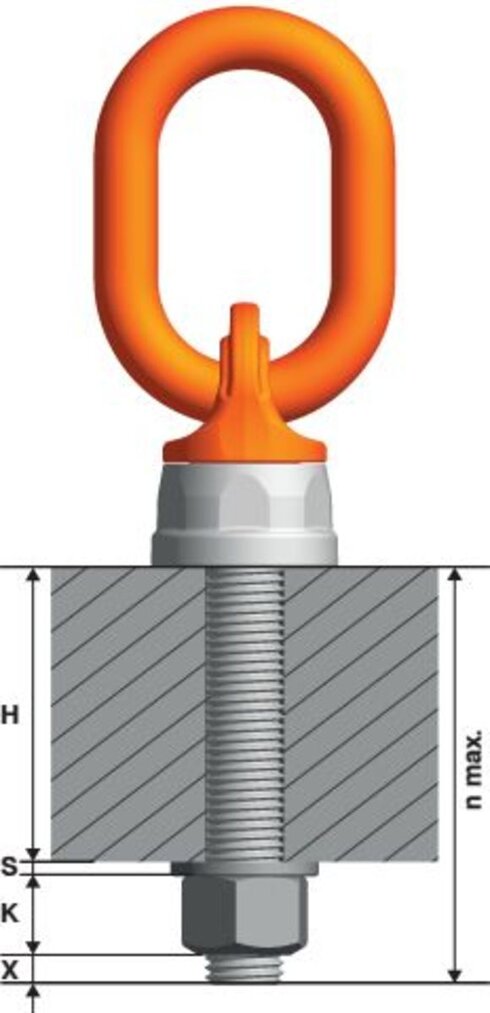

To calculate the necessary thread length (L):
L = H + S + K + X

H = Material height
S = Thickness of the washer
K = Height of the nut (depending on the thread size of the screw)
X = Excess length of the screw (twofold pitch of the screw)
L max. = n max.

  • Material: Alloy steel
  • Marking: According to standard, CE-marked, WLL, thread size and an individual serial number.
  • Standard: EN 1677-1
    except grade/WLL
  • Note: Also available in special length (SL) and maximum lenght (MAXL) as well.
  • Safety factor: 4:1
