DAVIT CRANES THAT WORK HARD IN MORE PLACES
When it comes to equipment for heavy-duty lifting and positioning, Thern has the experience you are looking for. Large or small, heavy or light, Thern has designed and manufactured standard and custom cranes and winches for countless customer applications around the world.

Simple Perfection
Thern’s First Mate series portable davit cranes quite simply, are perfect for a large variety of lifting jobs. Simple set-up, easy to use and easy to transport, makes the First Mate ideal for multiple station service. With multiple bases in place, the Thern First Mate goes anywhere you need an affordable, portable davit crane.

225 kg capacity portable Davit Crane
 • WLL up to 225 kg
 • Portable, heaviest part 12,2 kg
 • Rugged and affordable
 • Manual or power winch operation
 • 360° rotation
 • Boom adjustable in three positions
 • Five Corrosion-Resistant Finishes (Powder coat, galvanized, stainless 304 & 316 and three part epoxy)
 • Easy, No-Tools Assembly/Disassembly (all individual components less than 13,5 kg)
 • Variety of bases
 • 2-Year warranty
 • Proof of load 125% of WLL (Optional)

  • Marking: According to standard, CE-marked
  • Standard: EN 13001-1
Wall Flush
Select a row from the table below, then click the add to quote button
Part Code Code WLL
ton
Weight
kg
CAD
13.415PF5 5PF5 0.23 2.5

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

Get CAD
Download

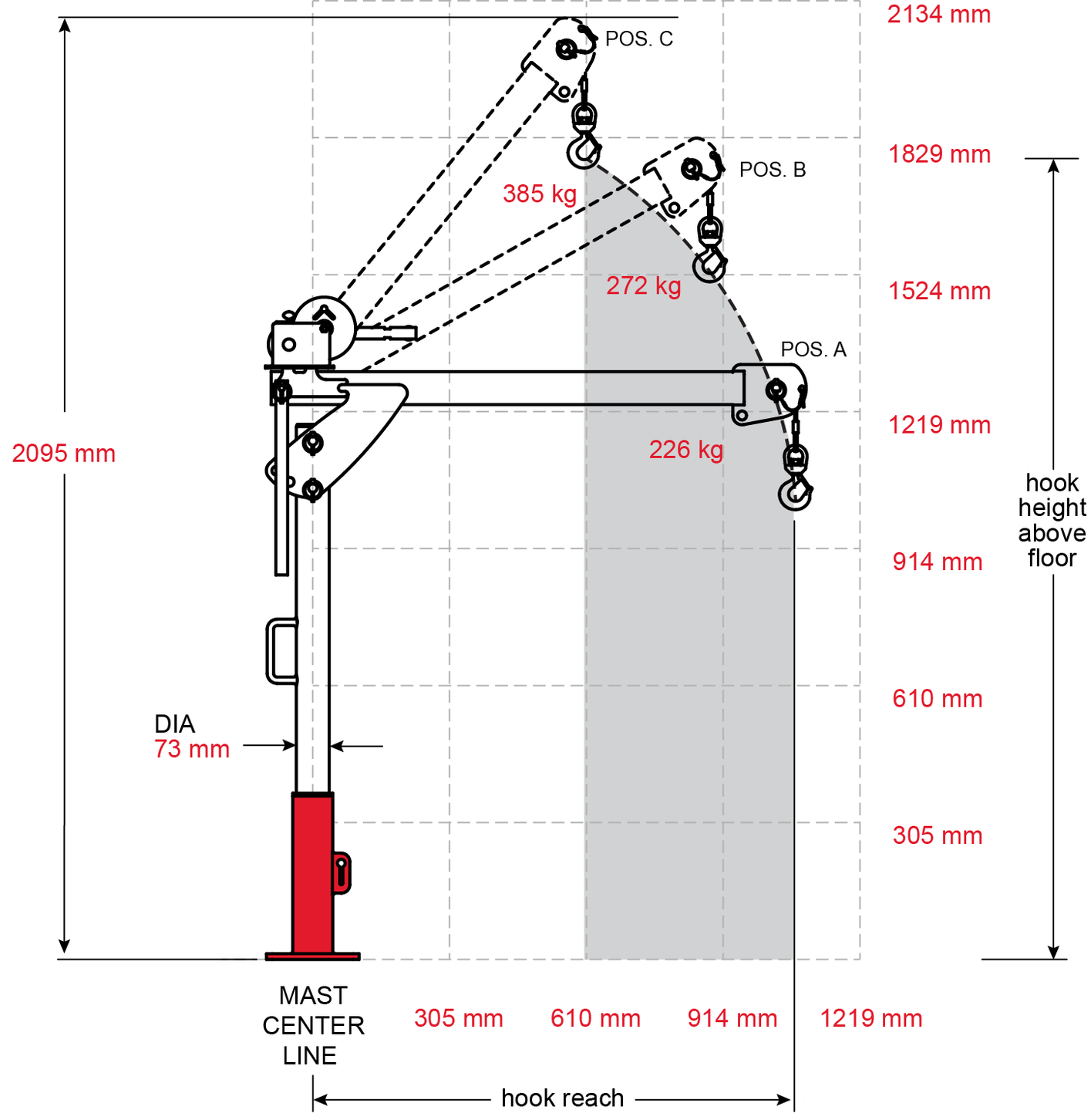

First Mate, 5PF5, with Pedestal Base

Boom Position Load Rating (KG) Hook Reach (mm) Hook height (mm)*
A 225 1066 1016
B 225 889 1524
C 225 609 1778

* Optional Base extension can provide 380mm more hook height

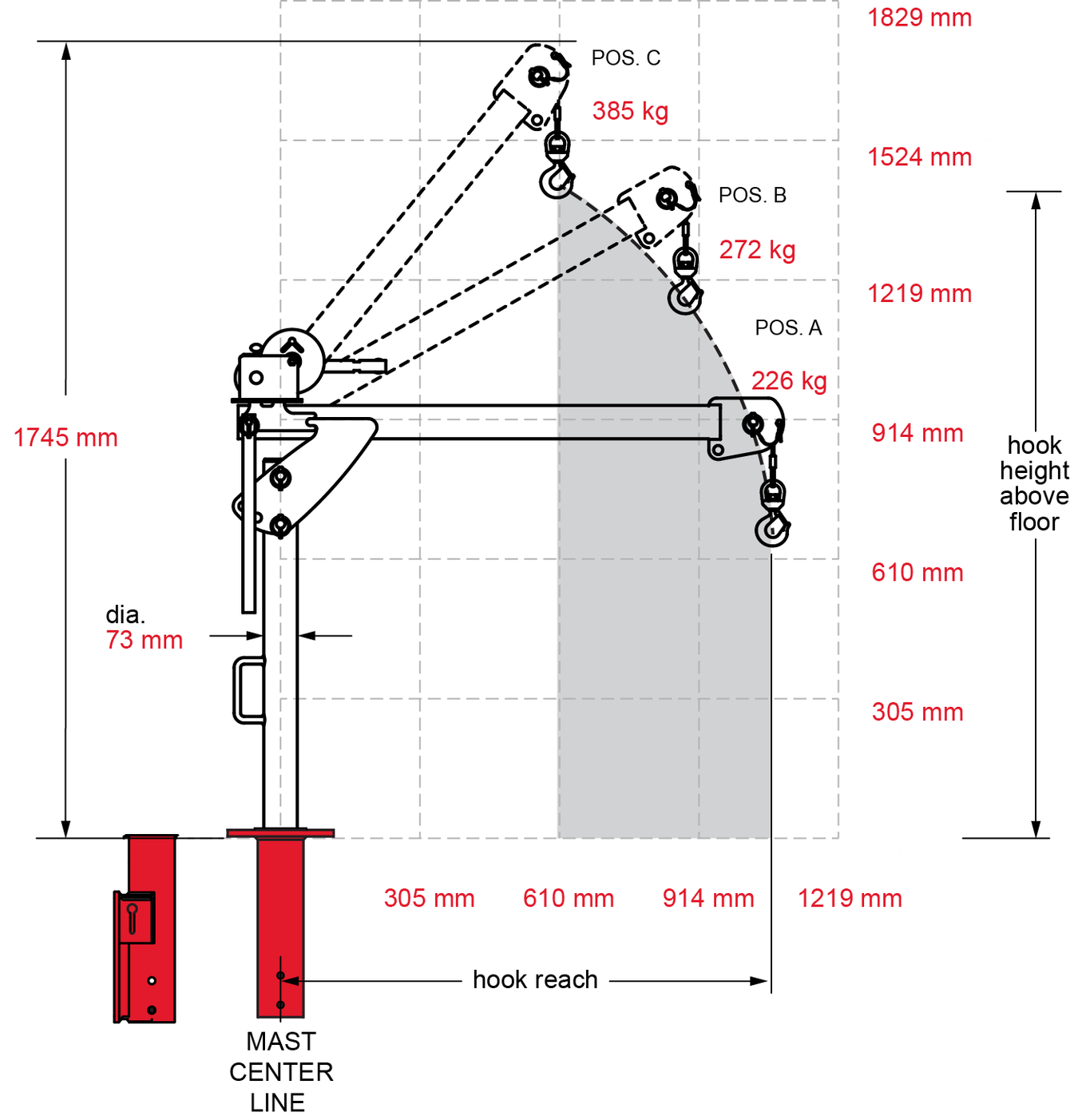

First Mate, 5PF5 with Flush or Wall base

Boom Position Load Rating (KG) Hook Reach (mm) Hook height (mm)*
A 225 1066 660
B 225 889 1168
C 225 609 1422

* Optional Base extension can provide 380mm more hook height
