General: 360° rotatable lifting point. The load ring is loadable in a range of 130° and can be positioned at any required angle due to its replaceable and patented spring. Likewise interchangeable is the hexagon-special screw from grade 10.9 material, which is secured against loss. The screw is 100% crack detection tested as well as covered with a chromate VI-free protection against corrosion.
pewag winner profilift alpha is able to withstand a 4-fold safety against break in all directions. It is avaliable with metric or UNC-thread, whereas the lifting points with metric thread is also obtainable with customized thread lengths.

Permissible usage
Load capacity acc. to the inspection certificate respectively table of WLL in the mentioned directions of pull (see picture 1).

Non permissible usage
Make sure when choosing the assembly that improper load can not arise e.g. if:

  • The direction of pull is obstructed
  • Direction of pull is not in the foreseen area (see picture 2)
  • Load ring rests against edges or loads (picture 3)


The load ring must be placed in the direction of pull before loading - do not turn under load. For more details please have a look into our user manual.

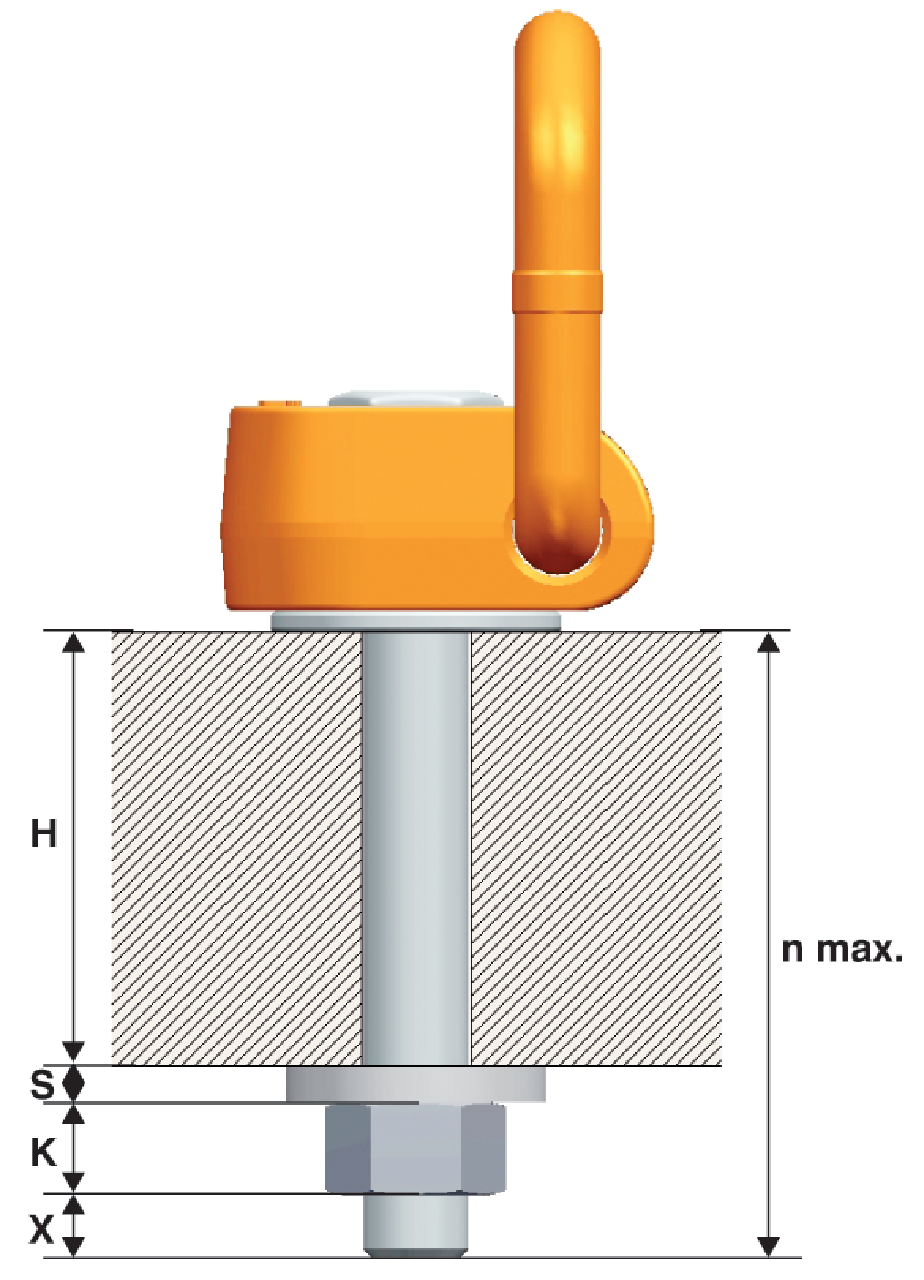

To calculate the necessary thread length (L):
L = H + S +K + X

H = Material height
S = Thickness of the washer
K = Height of the nut (depending on the thread size of the screw)
X = Excess length of the screw (twofold pitch of the screw)
L max. = n max.

pewag provides, along with the standard and maximum thread lengths, specially customised thread lengths. Supplied customised and maxium thread lengths include a washer and a crack-tested, corrosion-proofed screw nut.

  • Material: Alloy steel grade 10.
  • Marking: WLL, thread size and an individual serial number.
  • Finish: Painted.
  • Safety factor: 4:1.
  • Grade: 10
PLAW_02
PLAW Billede 1 tilladt anvendelse
PLAW-nicht erlaubt2_11-2013
PLAW-nicht erlaubt1_11-2013
PLAW_drw PLAW Sonderlänge
Select a row from the table below, then click the add to quote button
Art No Code WLL
Ton

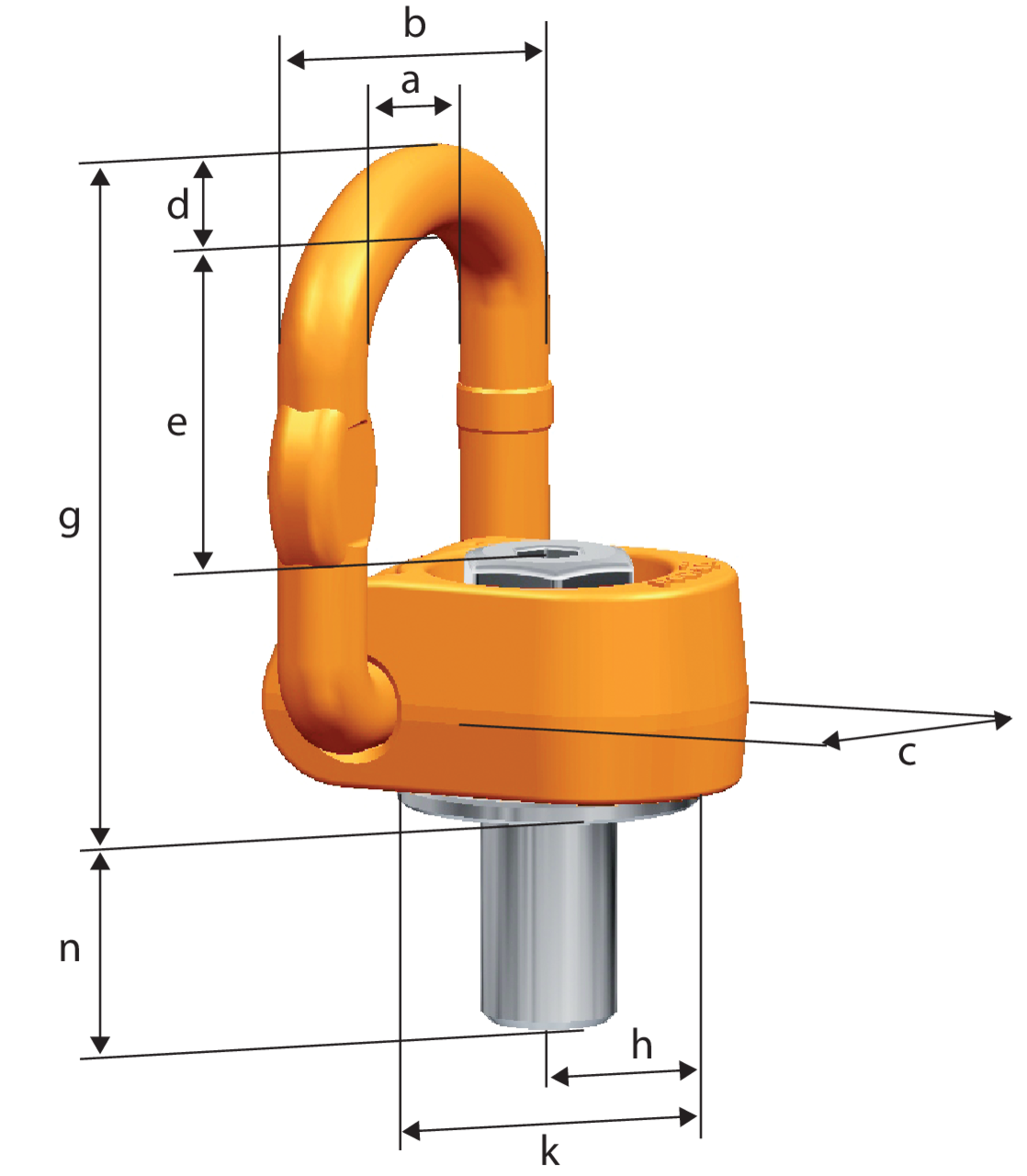

Thread n (mm) n max. (mm) A (mm) B (mm) C (mm) D (mm) e (mm) g h (mm) k (mm) Weight
kg
CAD
11.4258491 PLAW 0,3 t 0.3 M8 20 150 45 67 40 11 41 95 36 55 0.57
11.4258493 PLAW 0,63 t 0.63 M10 20 150 45 67 40 11 41 95 36 55 0.58
11.4258496 PLAW 1 t 1 M12 33 170 45 67 40 11 41 95 36 55 0.6
11.4242778 PLAW 1,5 t 1.5 M16 33 260 45 67 40 11 41 95 36 55 0.62
11.4261003 PLAW 2,5 t 2.5 M20 33 335 54 81 50 13 55 112 50 67 1.1
11.4261954 PLAW 4 t 4 M24 36 361 54 87 50 17 67 142 45 70 1.6
11.4261968 PLAW 6 t 6 M30 49 364 75 115 67 20 68 143 67 100 3.1
11.4235029 PLAW 7 t * 7 M36 55 374 75 115 67 20 65 143 60 100 3.3
11.4261979 PLAW 8 t 8 M36 55 365 93 147 85 27 87 188 85 120 6.1
11.4262009 PLAW 10 t 10 M42 65 290 93 147 85 27 87 188 85 120 6.4
11.4235028 PLAW 15 t 15 M42 63 340 115 181 105 33 108 246 106 150 12
11.4289137 PLAW 20 t 20 M48 73 340 115 181 105 33 108 246 106 150 12.3
* Special models only availability on request.
Attention: Subject to technical changes.

Download CAD

Description

Get CAD
Download
Method of lifting













Number of legs


1
1
2
2
2
3+4
3+4
3+4 2
3+4


Angle of inclination


90°
90°
0°-45°
45°-60°
0°-45°
45°-60° asymm.
asymm.


Code
Thread
Fastening torque
Load capacity












mm
Nm
tons
mm mm










PLAW 0,3 t
M8
35
0,3
0,3
0,6
0,6
0,4
0,3
0,6
0,4
0,3
0,3
10 24
PLAW 0,63 t
M10
70
0,63
0,63
1,25
1,25
0,85
0,63
1,3
0,9
0,63
0,63
10 24
PLAW 1 t
M12
120
1
1
2
2
1,4
1
2,1
1,5
1
1
10 24
PLAW 1,5 t
M16
150
1,5
1,5
3
3
2,1
1,5
3,1
2,2
1,5
1,5
10 24
PLAW 2,5 t
M20
170
2,5
2,5
5
5
3,5
2,5
5,3
3,7
2,5
2,5
8 24
PLAW 4 t
M24
400
4
4
8
8
5,6
4
8,4
6
4
4
14 36
PLAW 6 t
M30
500
6
6
12
12
8,5
6
12,7
9
6
6
14 36
PLAW 7 t*
M36
800
7
7
14
14
9,8
7
14,8
10,4
7
7
27 -
PLAW 8 t
M36
800
8
8
16
16
11,3
8
16,9
12
8
8
19 36
PLAW 10 t
M42
1500
10
10
20
20
14
10
21
15
10
10
32 -
PLAW 15 t
M42
1500
15
15
30
30
21
15
31,5
22,5
15
15
19 55
PLAW 20 t
M48
2000
20
20
40
40
28
20
42
30
20
20
19 55
* Only on request
