General: At least 25% greater WLL than traditional G80 products.
Proof Load tested at 2.5 times the WLL with certification for each batch manufactured.
Fatigue rated to 20,000 cycles at 1.5 times the WLL.
Magnaflux crack detection is performed 100% on each batch.
No reduction in WLL when shortening chain.

  • Material: Quenched and Tempered Alloy Steel
  • Marking: According to standard, CE marking
  • Temperature range: -40ºC up to +200°C (without reduction in WLL).
  • Finish: Blue painted.
  • Standard: EN 1677-1
  • Safety factor: 4:1
Product Picture 1
Product Picture 2
Select a row from the table below, then click the add to quote button

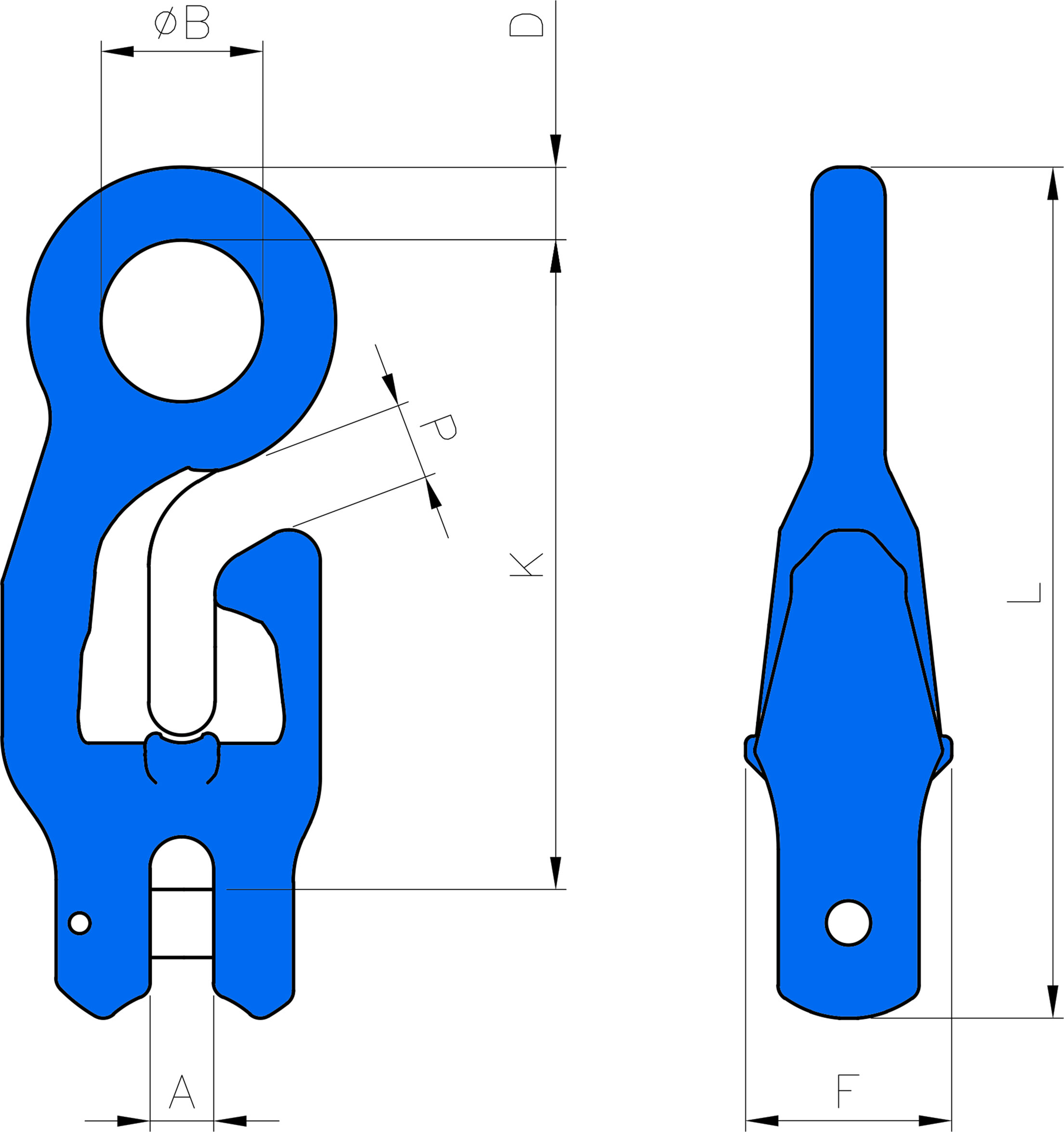

Part Code WLL
ton
For grade100 Chain
mm
A
mm
B
mm
D
mm
F
mm
K
mm
L
mm
P
mm
Weight
kg
CAD
11.21X-079-06 1.4 5, 6 8 18 9 24 76 99 12 0.24
11.21X-079-08 2.5 7, 8 10 24 13 32 102 134 12 0.54
11.21X-079-10 4 10 12 31 14 40 125 163 15 1.03
11.21X-079-13 6.7 13 16 37 18 51 158 208 20 2.18
11.21X-079-16 10 16 19 48 24 64 202 264 21 4.39

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
