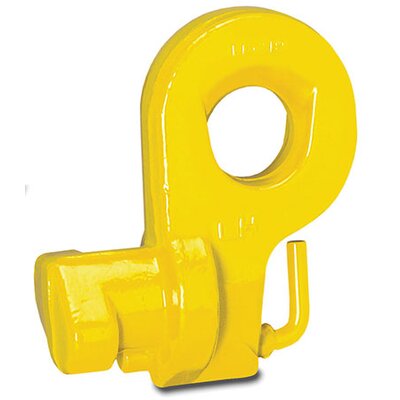

Container Lifting Lug CLB Grade 8

Container lifting lug set for lifting standard containers. They are to be mounted horizontally to the side of the container at either the top or the bottom fixing holes.

A set contains 4 lifting lugs (2 left-, and 2 right - turned lugs) and are to be used together with a lifting beam.

Featur

Show more

Product number:

Container lifting lug set for lifting standard containers. They are to be mounted horizontally to the side of the container at either the top or the bottom fixing holes.

A set contains 4 lifting lugs (2 left-, and 2 right - turned lugs) and are to be used together with a lifting beam.

Features:

  • Provided with spring-loaded bolt which prevent the lug to unhook when the slings are unloaded.

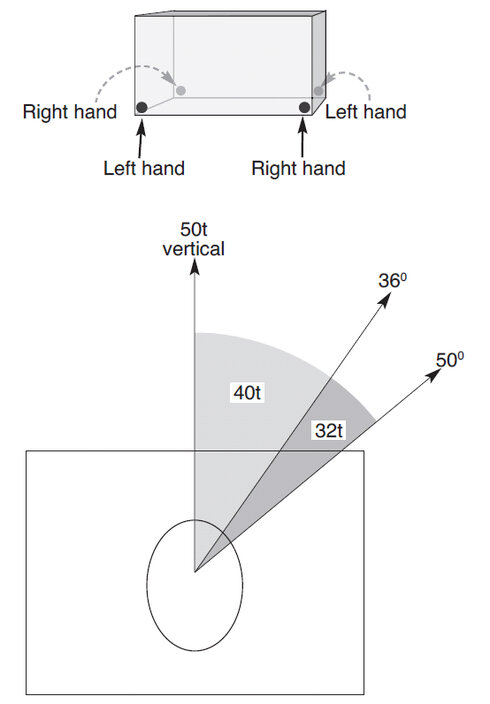

  • Lugs marked with max. load and angle of working
  • Lugs marked with "R" for right hand lugs and "L" for left hand lugs.
  • Material: Alloy steel.
  • Marking: CE-marked
  • Temperature range: -40°C up to +100°C
  • Finish: Painted.
  • Warning: Not for toplift (in the hole facing upwards).
  • Safety factor: 4:1
  • Grade: 8
