Svero

General: Low-built block trolley for hanging e.g. chain blocks and wire hoists. The trolley can be supplied with a load of 0.5 tons up to 5 tons. The trolley has corner protection which prevents the trolley from detaching from the beam and ball bearing wheels. It is easily adjustable by the left- and right-handed carrier bracket and fits most brands of hoists.

  • Marking: WLL, name plate and CE.
  • Finish: Black painted.
SVERO illu 20
E x available

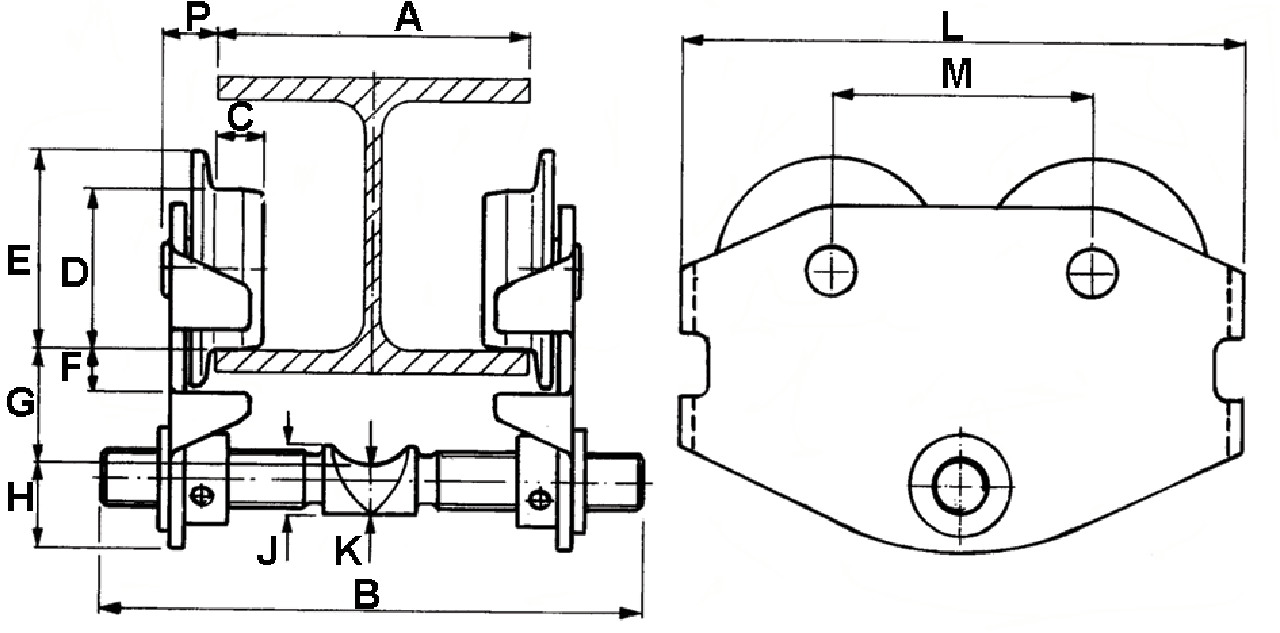

SVERO 20 dwg
Select a row from the table below, then click the add to quote button
Art No WLL
Ton
A min-max B (mm) C (mm) Ø D (mm) E (mm) F (mm) G (mm) H (mm) Ø J (mm) Ø K (mm) L (mm) M (mm) P (mm) Type Min curve r m Weight
kg
16.0520123A 0.5 46-160 208 18 62 77 18 45 33 25 19 216 100 24 20123A 1,0 6
16.0520124A 0.5 161-280 208 18 62 77 18 45 33 25 19 216 100 24 20124A 1 6.4
16.0520143A 1 50-160 212 20 70 85 20 51 40 32 24 264 130 26 20143A 1,25 9.4
16.0520144A 1 161-280 212 20 70 85 20 51 40 32 24 264 130 26 20144A 1,25 10.7
16.0520163A 2 64-180 248 24 100 118 25 63 51 40 32 345 165 30 20163A 1,80 19
16.0520164A 2 181-300 248 24 100 118 25 63 51 40 32 345 165 30 20164A 1,80 21
16.0520173A 3 74-180 262 28 114 137 31 78 57 46 35 384 180 35 20173A 2,20 31.5
16.0520174A 3 181-300 262 28 114 137 31 78 57 46 35 384 180 35 20174A 2,20 34
16.0520193A 5 82-180 270 34 140 165 34 92 64 56 42 455 215 40 20193A 2,50 55
16.0520194A 5 181-300 270 34 140 165 34 92 64 56 42 455 215 40 20194A 2,50 58
