Design: Pressed of profile steel.

  • Finish: Galvanized.
Kaus2_e_225mm
Select a row from the table below, then click the add to quote button

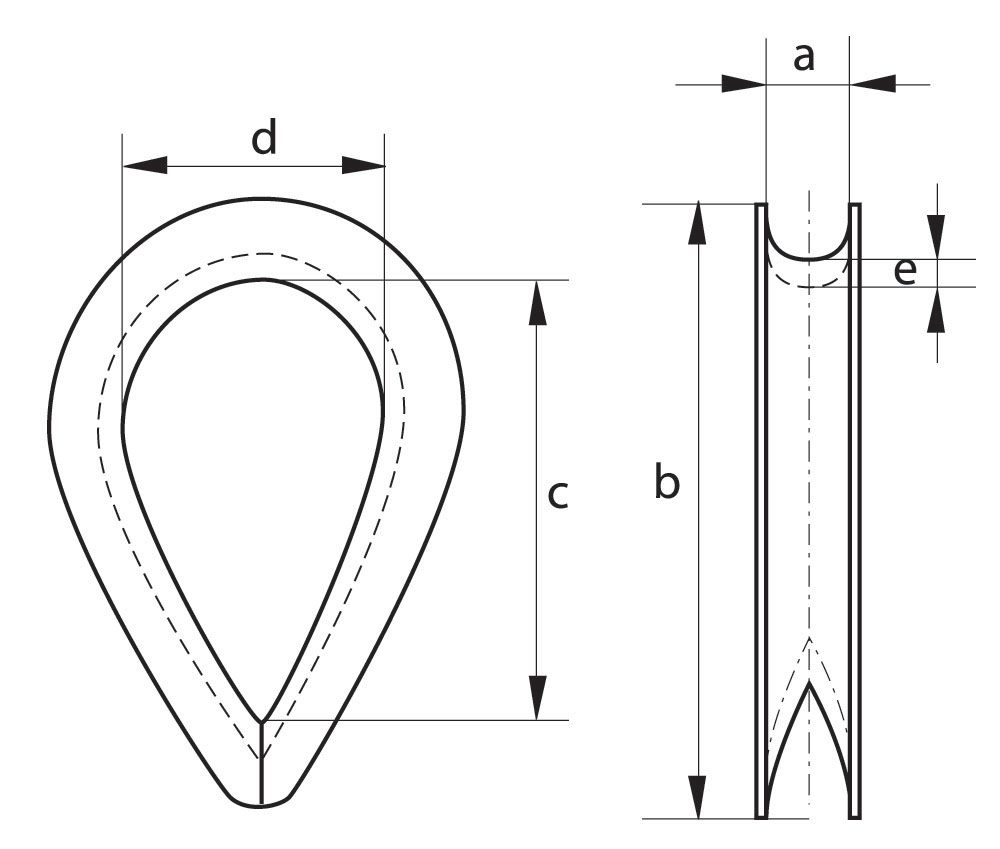

Part Code Diameter
mm
a
mm
b
mm
c
mm
d
mm
e
mm
f
mm
Weight
kg/100pc
CAD
10.25B689903 2,5 - 3 3 22 19 12 1.6 6 0.6
10.25B689904 3,5 - 4 4 26 21 13 1.6 7 0.7
10.25B689905 4 - 5 5 32 23 14 1.9 8 0.9
10.25B689906 5- 6 6 38 25 16 2.4 10 1.8
10.25B689907 6 - 7 7 44 28 18 2.4 11 1.9
10.25B689908 7 - 8 8 51 32 20 2.8 12 2.7
10.25B689910 9 - 10 10 57 38 24 3.1 14 4.1
10.25B689912 11 - 12 12 64 45 28 3.3 17 6.9
10.25B689913 13 13 70 48 30 3.3 18 7.6
10.25B689914 13 - 14 14 76 51 32 3.7 19 9.2
10.25B689916 15 - 16 16 83 58 36 3.8 22 16.4
10.25B689918 17 - 18 18 95 64 40 4.7 26 20.3
10.25B689920 18 - 20 20 102 72 45 5.7 28 27.3
10.25B689922 20 - 22 22 114 80 50 5.7 30 28.6
10.25B689924 22 - 24 24 127 90 56 6.5 34 44.8
10.25B689926 24 - 26 26 140 99 62 6.8 36 57.7
10.25B689928 26 - 28 28 152 112 70 8 38 72
10.25B689936 34 - 36 36 216 160 100 8.5 48 104
10.25B689938 36 - 38 38 229 176 110 8.5 50 115
10.25B689940 38 - 40 40 241 184 115 10.5 56 153
10.25B689942 40 - 42 42 254 192 120 10.5 58 176
10.25B689945 42 - 45 45 305 240 150 10.5 195
10.25B689950 47 - 50 50 360 265 160 12 292
10.25B689960 57 - 60 60 380 275 170 12 320
10.25B689965 63 - 65 65 420 300 180 13 364
10.25B689975 72 - 75 75 460 350 200 15 535
10.25B689990 87 - 90 90 500 370 210 18 790
10.25B689999 97 - 100 99 550 380 220 20 830
