General: Intended for general lifting purposes.

Design: Snatch block type with covering side plates. Provided with shackel and pressure lube fittings. Furnished with bronze bushing.

  • Marking: Working load limit (WLL).
  • Finish: Painted.
  • Safety factor: 4:1.
Powertex snatch block 8 T LS type

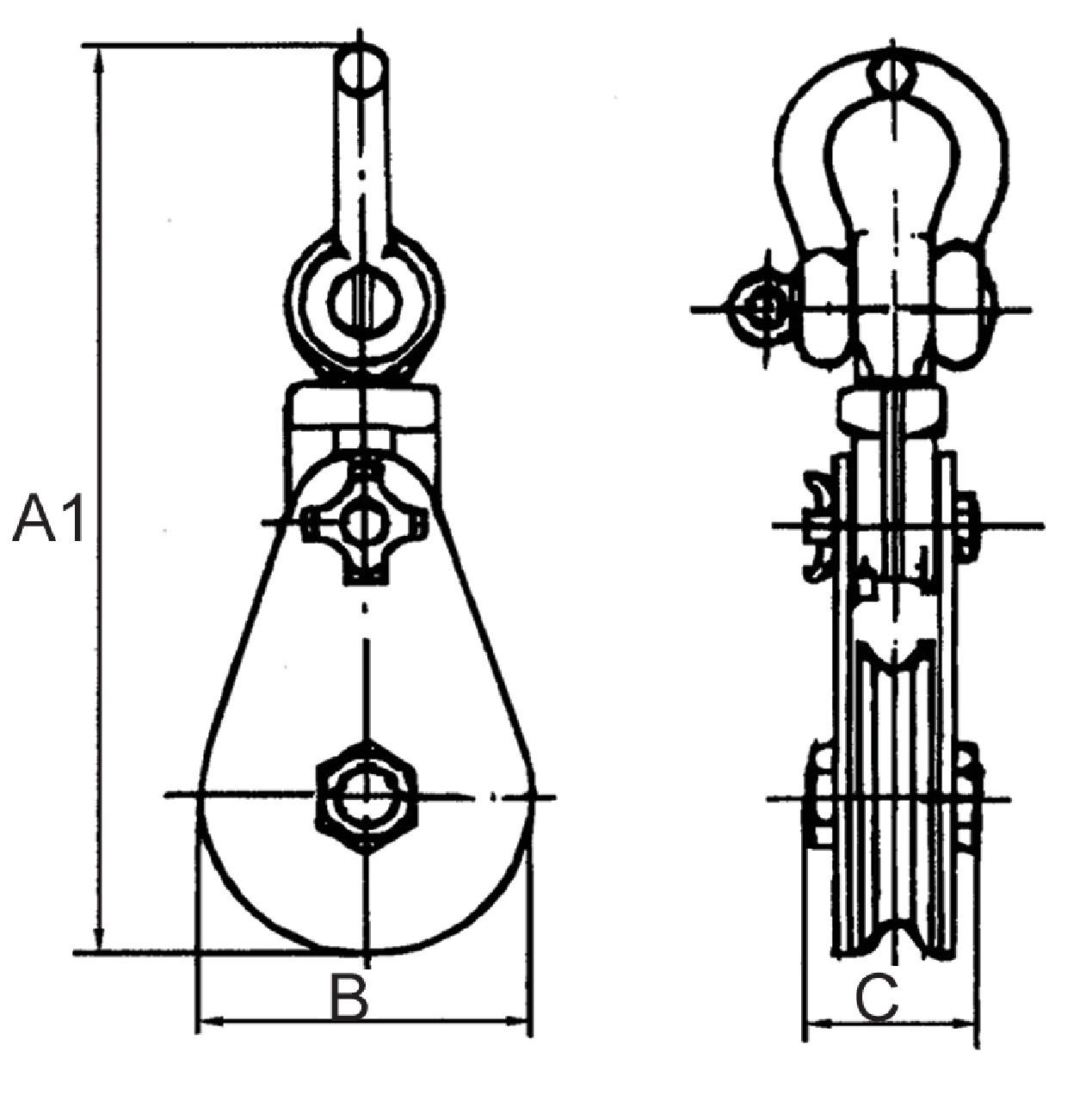

Powertes snatch block LS type drawing
Select a row from the table below, then click the add to quote button
Part Code WLL
ton
Rope Ø
mm
Sheave dia
mm
A1
mm
B
mm
C
mm
Weight
kg
CAD
16.15PSBS020075 2 7-9 75 286 82 70 4
16.15PSBS040115 4 10-12 115 345 120 70 6
16.15PSBS040150 4 16-19 150 399 160 70 14
16.15PSBS080200 8 19-22 200 528 210 93 16
16.15PSBS100250 10 24-26 250 679 260 115 38
16.20PSBS120250 12 20-22 250 702 260 125 39.5
16.15PSBS120300 12 24-26 300 767 310 133 56
16.15PSBS150200 15 22-24 200 663 210 102 24
16.15PSBS150300 15 24-26 300 884 310 133 65
16.15PSBS220365 22 28-32 365 952 365 140 90
16.15PSBS300300 30 28-30 300 1,023 310 193 125
16.15PSBS300400 30 32-35 400 1,126 415 155 135
16.15PSBS350350 35 32-35 350 1,058 365 193 130
16.15PSBS500600 50 46-50 600 1,525 625 275 418
