General: Intended for general lifting purposes. Can also be used for pulling. WLL in table applies for load on head fitting/hook.
Design: Snatch block type with covering side plates. Provided with swiveling hook with latch.


  • Marking: Working load limit (WLL).
  • Finish:  Painted.
  • Safety factor: 4:1
snatchblock_blue_225mm_2
50-KM_e_new_225mm
Select a row from the table below, then click the add to quote button
Part Code WLL
ton

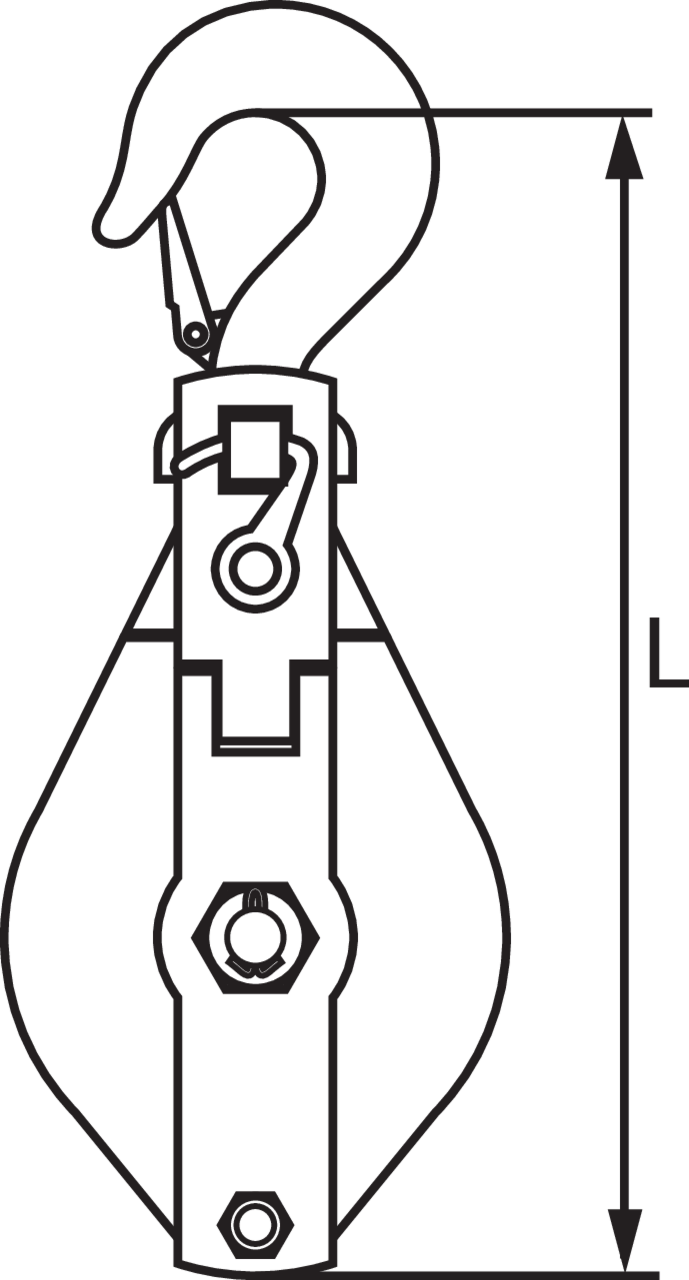

Max rope Ø (mm) Sheave Ø (mm) L (mm) Weight
kg
CAD
16.15PSBH005075 0.5 8 75 268 1.4
16.15PSBH010100 1 10 100 312 2.8
16.15PSBH015125 1.5 13 125 370 4.4
16.15PSBH020150 2 16 150 443 7.2
16.15PSBH030180 3 19 180 498 11
16.15PSBH040200 4 22 200 590 15
16.15PSBH050250 5 25 250 707 25
