General:
- Max. working pressure: 720 bar/ 72 Mpa
- Acting type: single
- Return type: gravity
- Compact, Lightweight
- Usable in all positions
- Protected against ejection of plunger


Standard supplied with:
- High Flow female coupler A 118
- HFJ 10/30 G 4 contains a 30 cm connecting hose with anti-kink spring
- HJ 20/50 G 11 contains a flat saddle

Available on request:
- Cylinders manufactured in conformity with customer specifications
- Base mounting holes

  • Material: steel
Product Image 1
Product Image 2
Select a row from the table below, then click the add to cart button

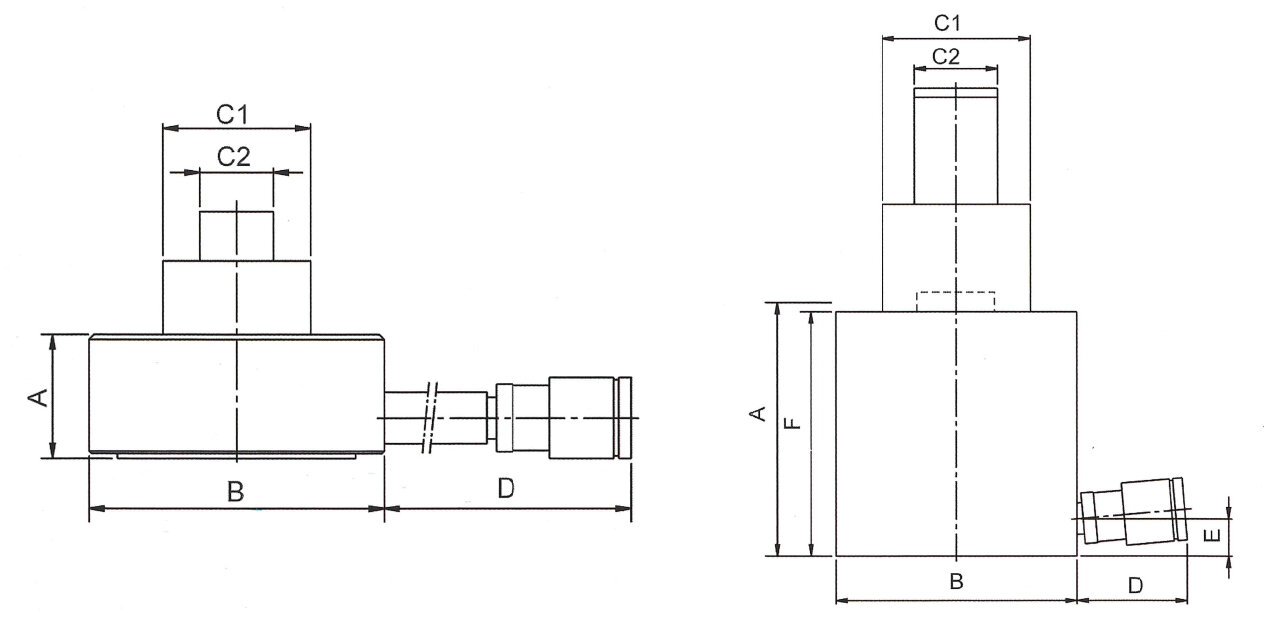

Part Code Size Model Closed height
mm
tonnage t stroke length 1
mm
stroke length 2
mm
A
mm
B
mm
C1
mm
C2
mm
D
mm
E
mm
F
mm
Weight
kg
16.40100111005 49 HFJ 10/30 G 4 49 10 41 20 49 120 60 30 385 4,5
16.40100112103 140 HJ 20/50 G 11 140 20 111 55 140 125 80 45 70 70 131 12,5
