General:

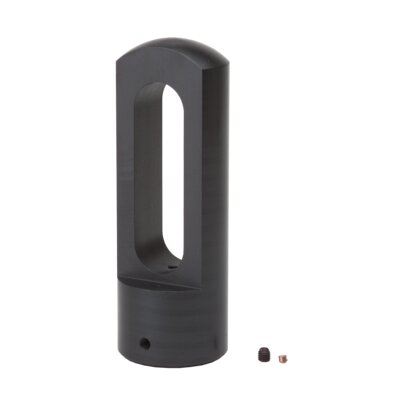

- Pulling eyes for pulling cylinders
- Made of milled steel.
- Chemical blacked coated

Additional information:
- To be ordered separately, 2 pieces per cylinder

Product Picture 1
Product Image 2
Select a row from the table below, then click the add to cart button
Part Code Model K
mm max.
L max.
mm
M
mm
N
mm
O
mm
Q
mm
R
mm
16.40HOL100181051 HPJ 11 S 15 760 810 120 35 200 70 35
16.40HOL100181051. HPJ 30 S 15 890 940 120 35 200 70 35
16.40HOL100181052 HPJ 60 S 15 1 000 1 080 150 45 260 115 40
16.40HOL100181053 HPJ 100 H 15 1 012 1 132 200 45 320 135 50
