General:
-

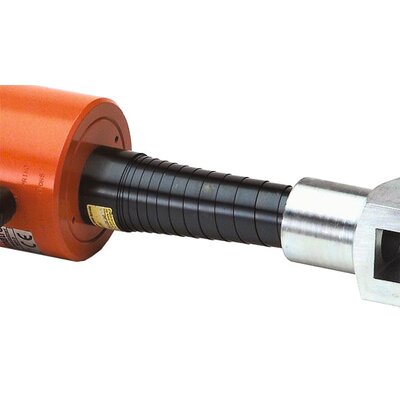

Protection spring for HPJ pulling cilinders protect the plunger against dirt and elding spots
- To be ordered separatly
- Available for HPJ 11/30 S, HPJ 60 S and HPJ 100 H

Product Image 1
Select a row from the table below, then click the add to quote button
Part Code Model CAD
16.40HOL100581160 HPJ11 / 30 S 15
16.40HOL100581161 HPJ 60 S 15
16.40HOL100581162 HPJ 100 H 15

Download CAD
