Multi Purpose Cylinders HGC S

General:
- Max. working pressure: 720 bar/ 72 Mpa
- Acting type: single
- Return type: spring
- A range of 50 models with different tonnages and stroke lengths
- Collar thread and base mounting holes
- Internal plunger thread on all models to 50 tons
- Duo Power Ring; seal and bearing for long life span
- Thread Protector protects the thread on the cylinder housing
- XL Saddle+ protects the plunger and limits eccentric loads

Standard supplied with:
- High Flow female coupler A 118
- Flat saddle

Available on request: Cylinders manufactured in conformity with customer specifications

  • Material: steel
  • Finish: Duplex Power Coating makes the plunger corrosion resistant
Product Picture 1
Product Picture 1
Product Picture 2
Select a row from the table below, then click the add to cart button

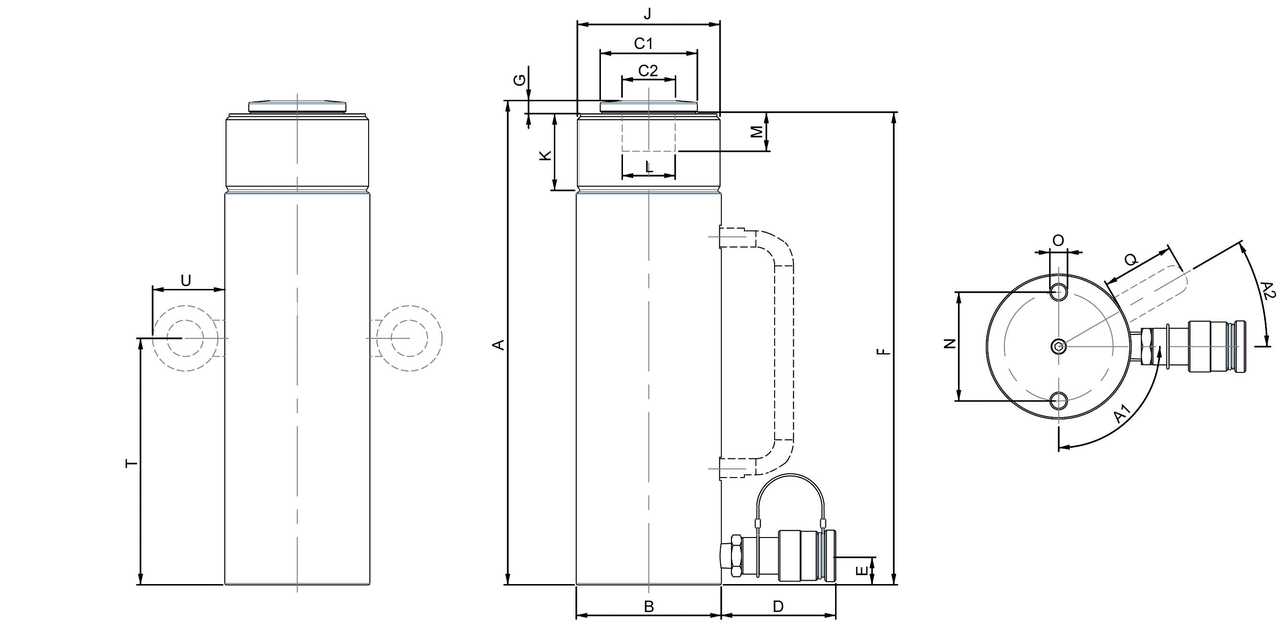

Part Code Model tonnage tons stroke length
mm		 Closed height
mm		 required oil cc A
mm		 B
mm		 C1
mm		 C2
mm		 D
mm		 E
mm		 F
mm		 G
mm		 J thread size K
mm		 L thread size M
mm		 N
mm		 O
mm		 A1
mm		 Weight
kg		 CAD
16.40100112211 HGC 5 S 2.5 5 25 105 18 105 40 27 15 80 20 102 4 1½”-16-UN 30 3/4"-16-UNF 20 25 M6x9 (2x) 90 1.1
16.40100112212 HGC 5 S 5 5 50 130 35 130 40 27 15 80 20 127 4 1½”-16-UN 30 ¾”-16-UNF 20 25 M6x9 (2x) 90 1.3
16.40100112213 HGC 5 S 7.5 5 75 155 53 155 40 27 15 80 20 152 4 1½”-16-UN 30 ¾”-16-UNF 20 25 M6x9 (2x) 90 1.5
16.40100112214 HGC 5 S 10 5 100 180 71 180 40 27 15 80 20 177 4 1½”-16-UN 30 ¾”-16-UNF 20 25 M6x9 (2x) 90 1.7
16.40100112215 HGC 5 S 12.5 5 125 206 88 206 40 27 15 80 20 203 4 1½”-16-UN 30 ¾”-16-UNF 20 25 M6x9 (2x) 90 1.8
16.40100112218 HGC 10 S 2.5 10 25 97 35 97 60 38 21 80 20 93 5 2 1/4"- 14- UNS 31 1"- 8- UNC 20 40 M8x12 (2x) 90 2.1
16.40100112216 HGC 5 S 17.5 5 175 268 124 268 40 27 15 80 20 265 4 1½”-16-UN 30 ¾”-16-UNF 20 25 M6x9 (2x) 90 2.3
16.40100112219 HGC 10 S 5 10 50 122 69 122 60 38 21 80 20 118 5 2 1/4"- 14- UNS 31 1"- 8- UNC 20 40 M8x12 (2x) 90 2.5
16.40100112217 HGC 5 S 22.5 5 225 318 159 318 40 27 15 80 20 315 4 1½”-16-UN 30 ¾”-16-UNF 20 25 M6x9 (2x) 90 2.6
16.40100112227 HGC 15 S 2.5 15 25 123 59 123 70 47 23 80 20 117 7 2¾”-16-UN 31 1”-8-UNC 27 48 M10x15 (2x) 90 3.4
16.40100112220 HGC 10 S 10 10 100 172 139 172 60 38 21 80 20 168 5 2 1/4"- 14- UNS 31 1"- 8- UNC 20 40 M8x12 (2x) 90 3.4
16.40100112228 HGC 15 S 5 15 50 148 119 148 70 47 23 80 20 142 7 2¾”-16-UN 31 1”-8-UNC 27 48 M10x15 (2x) 90 3.9
16.40HGC05S15 HGC 10 S 15 10 150 240 208 240 60 38 21 80 20 236 5 2 1/4"- 14- UNS 31 1"- 8- UNC 20 40 M8x12 (2x) 90 4.6
16.40100112229 HGC 15 S 10 15 100 198 238 198 70 47 23 80 20 192 7 2¾”-16-UN 31 1”-8-UNC 27 48 M10x15 (2x) 90 4.9
16.40100112236 HGC 25 S 2.5 25 25 138 83 318 85 57 32 80 20 132 7 3 5/16”-12-UN 55 1½”-16-UN 27 60 M12x18 (2x) 90 5.5
16.40100112222 HGC 10 S 20 10 200 290 277 290 60 38 21 80 20 286 5 2 1/4"-14- UNS 31 1"- 8- UNC 20 40 M8x12 (2x) 90 5.5
16.40100112237 HGC 25 S 5 25 50 165 166 165 85 57 32 80 20 159 7 3 5/16”-12-UN 55 1½”-16-UN 27 60 M12x18 (2x) 90 6.4
16.40100112223 HGC 10 S 25 10 250 340 346 340 60 38 21 80 20 336 5 2 1/4"- 14- UNS 31 1"- 8- UNC 20 40 M8x12 (2x) 90 6.4
16.40100112230 HGC 15 S 15 15 150 265 356 265 70 47 23 80 20 259 7 2¾”-16-UN 31 1”-8-UNC 27 48 M10x15 (2x) 90 6.4
16.40100112224 HGC 10 S 30 10 300 390 416 390 60 38 21 80 20 386 5 2 1/4"- 14- UNS 31 1"- 8- UNC 20 40 M8x12 (2x) 90 7.3
16.40100112231 HGC 15 S 20 15 200 315 475 315 70 47 23 80 20 309 7 2¾”-16-UN 31 1”-8-UNC 27 48 M10x15 (2x) 90 7.4
16.40100112238 HGC 25 S 10 25 100 215 332 215 85 57 32 80 20 209 7 3 5/16”-12-UN 55 1½”-16-UN 27 60 M12x18 (2x) 90 8
16.40100112225 HGC 10 S 35 10 350 440 485 440 60 38 21 80 20 436 5 2 1/4"- 14- UNS 31 1"- 8- UNC 20 40 M8x12 (2x) 90 8.1
16.40100112232 HGC 15 S 25 15 250 365 594 365 70 47 23 80 20 359 7 2¾”-16-UN 31 1”-8-UNC 27 48 M10x15 (2x) 90 8.4
16.40100112226 HGC 10 S 40 10 400 490 554 490 60 38 21 80 20 486 5 2 1/4"- 14- UNS 31 1"- 8- UNC 20 40 M8x12 (2x) 90 9
16.40100112245 HGC 35 S 5 35 50 184 251 184 100 67 37 80 20 176 9 3 7/8”-12-UN 55 1½”-16-UN 27 75 M12x18 (2x) 90 9.3
16.40100112233 HGC 15 S 30 15 300 415 713 415 70 47 23 80 20 409 7 2¾”-16-UN 31 1”-8-UNC 27 48 M10x15 90 9.4
16.40100112239 HGC 25 S 15 25 150 265 498 265 85 57 3.2 80 20 7 3 5/16”-12-UN 55 1½”-16-UN 27 60 M12x18 (2x) 90 9.7
16.40100112234 HGC 15 S 35 15 350 465 832 465 70 47 23 80 20 459 7 2¾”-16-UN 31 1”-8-UNC 27 48 M10x15 (2x) 90 10.5
16.40100112240 HGC 25 S 20 25 200 315 664 315 85 57 32 80 20 309 7 3 5/16”-12-UN 55 1½”-16-UN 27 60 M12x18 (2x) 90 11.3
16.40100112246 HGC 35 S 10 35 100 234 503 234 100 47 37 80 20 226 9 3 7/8”-12-UN 55 1½”-16-UN 27 75 M12x18 (2x) 90 11.4
16.40100112235 HGC 15 S 40 15 400 515 950 515 70 47 23 80 20 509 7 2¾”-16-UN 31 1”-8-UNC 27 48 M10x15 (2x) 90 11.5
16.40100112241 HGC 25 S 25 25 250 374 830 375 85 57 32 80 20 368 7 3 5/16”-12-UN 55 1½”-16-UN 27 60 M12x18 (2x) 90 13.3
16.40100112247 HGC 35 S 15 35 150 284 754 284 100 47 37 80 20 276 9 3 7/8”-12-UN 55 1½”-16-UN 27 75 M12x18 (2x) 90 13.5
16.40100112242 HGC 25 S 30 25 300 424 996 424 85 57 32 80 20 418 7 3 5/16”-12-UN 55 1½”-16-UN 27 60 M12x18 (2x) 90 14.9
16.40100112249 HGC 50 S 5 50 50 176 354 176 127 82 55 80 25 170 8 5”-12-UN 57 65 10 85 M12x18 (2x) 90 15.1
16.40100112248 HGC 35 S 20 35 200 334 1,005 334 100 47 37 80 20 326 9 3 7/8”-12-UN 55 1½”-16-UN 27 75 M12x18 (2x) 90 15.5
16.40100112243 HGC 25 S 35 25 350 474 1,161 474 85 57 32 80 20 468 7 3 5/16”-12-UN 55 1½”-16-UN 27 60 M12x18 (2x) 90 16.5
16.40100112250 HGC 50 S 10 50 100 226 709 226 127 82 55 80 25 220 8 5”-12-UN 57 65 10 85 M12x18 (2x) 90 18.9
16.40100112244 HGC 25 S 45 25 450 574 1,493 574 85 57 32 80 20 568 7 3 5/16”-12-UN 55 1½”-16-UN 27 60 M12x18 (2x) 90 19.8
16.40100112251 HGC 50 S 15 50 150 276 1,063 276 127 82 55 80 25 270 8 5”-12-UN 57 65 10 85 M12x18 (2x) 90 22.6
16.40100112252 HGC 50 S 20 50 200 326 1,418 326 127 82 55 80 25 320 8 5”-12-UN 57 65 10 85 M12x18 (2x) 90 26.4
16.40100112253 HGC 50 S 25 50 250 376 1,772 376 127 82 55 80 25 370 8 5”-12-UN 57 65 10 85 M12x18 (2x) 90 30.1
16.40100112255 HGC 75 S 15 75 150 285 1,558 285 147 97 62 80 25 279 8 5”-12-UN 57 75 10 115 M12x18 (2x) 90 30.9
16.40100112257 HGC 100 S 5 100 50 218 716 218 175 117 72 80 30 210 10 6 7/8”-12-UN 57 80 10 146 M12x24 (4x) 90 35.3
16.40100112254 HGC 50 S 35 50 350 476 2,481 476 127 82 55 80 25 470 8 5”-12-UN 57 65 10 85 M12x18 (2x) 90 37.5
16.40100112258 HGC 100 S 10 100 100 268 1,431 268 175 117 72 80 30 260 10 6 7/8”-12-UN 57 80 10 146 M12x24 (4x) 90 42.2
16.40100112256 HGC 75 S 35 75 350 485 3,635 485 147 97 62 80 25 479 8 5¾”-12-UN 57 75 10 115 M12x18 (2x) 90 50
16.40100112259 HGC 100 S 15 100 150 318 2,147 318 175 117 72 80 30 310 10 6 7/8”-12-UN 57 80 10 146 M12x24 (4x) 90 50
16.40100112260 HGC 100 S 25 100 250 418 3,579 418 175 117 72 80 30 410 10 6 7/8”-12-UN 57 80 10 146 M12x24 (4x) 90 64.1
