General:
- Max. working pressure: 720 bar/ 72 Mpa
- Acting type: single
- Return type: gravity
- Usable in all positions
- Safe becuase of mechanical load locking
- Suitable for sustained load
- Flat saddle. Prevents damage to the plunger and is easy to replace with tilting saddle.



Standard supplied with:
- High Flow female coupler A 118
- flat saddle

Available on request:
- Cylinders manufactured in conformity with customer specifications
- Collar thread
- Base mounting holes

  • Material: steel
Product Image 1
Product Image 2
Select a row from the table below, then click the add to quote button

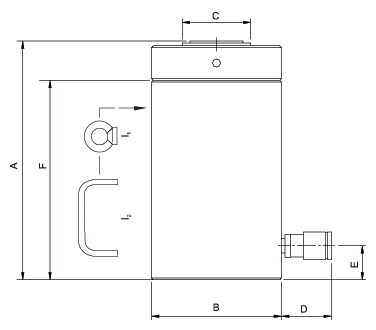

Part Code Model Stroke (mm) Closed height (mm) tonnage t Capacity kN/t I type A
mm
B
mm
C
mm
D
mm
E
mm
F
mm
Weight
kg
CAD
16.40100082003 HJ 10 G 15 SN 150 270 10 99.3 / 10.1 270 60 42 70 25 242 5.9
16.40100082002 HJ 25 G 15 SN 150 283 25 238.9 / 24.4 I2 283 90 65 70 25 257 14
16.40100082001 HJ 50 G 15 SN 150 307 50 510.3 / 52 I2 307 135 95 70 25 272 34
16.40100082000 HJ 100 G 15 SN 150 323 100 1029.3 / 105 I1 323 190 135 70 25 287 71
16.40100112136 HJ 150 G 15 SN 150 363 150 1538.9 / 156.9 I1 363 212 165 70 35 305 101
16.40100112083 HJ 250 G 15 SN 150 385 150 2493.8 / 254.3 I1 385 300 210 70 40 330 180

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

Get CAD
Download
