General:
- Max. working pressure: 720 bar/ 72 Mpa
- Acting type: single
- Return type: spring
- Compact
- Usable in all positions
- Protected against ejection of plunger
- Hollow saddle prevents damage to the plunger. Easy to replace


Standard supplied with:
-
High Flow female coupler A 118
- Hollow saddle Exept for models HHJ 5 S and HHJ 12 S

Available on request:
- Cylinders manufactured in conformity with customer specifications
- Collar thread
- Base mounting holes

  • Material: steel
Product Image 1
Product Image 2
Select a row from the table below, then click the add to quote button

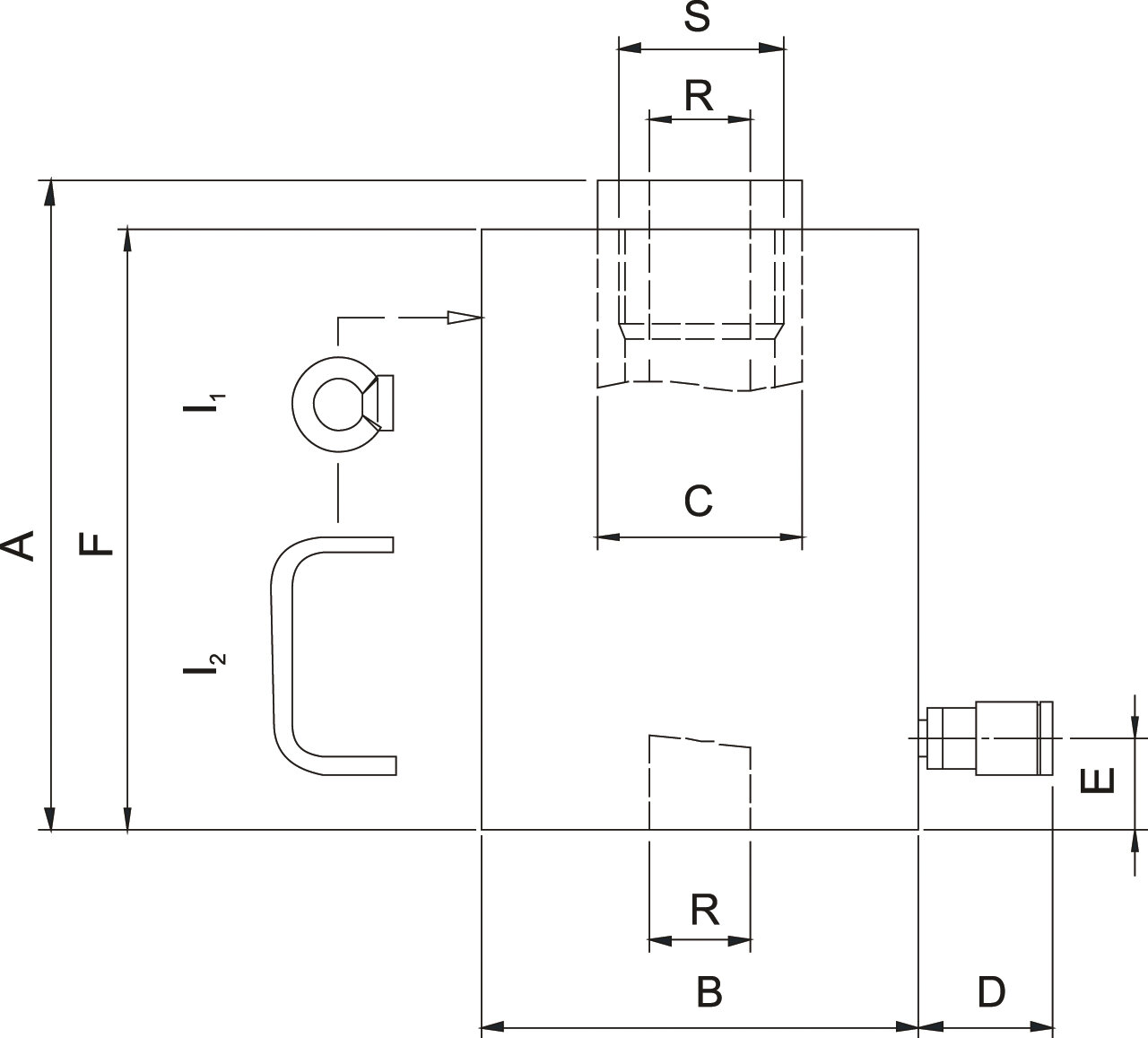

Model tonnage tons stroke length mm Closed height (mm) A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) R (mm) S thread size Weight
kg
CAD
HHJ 5 S 2.5 5 25 87 87 60 28 90 24 87 17 1.9
HHJ 12 S 5 12 50 156 156 86 40 90 27 156 21 6.3
HHJ 17 S 5 17 50 192 192 90 46 90 31 178 27 M38x1.5 7.3
HHJ 20 S 5 20 50 182 182 100 50 90 31 170 27 M38x1.5 8.6
HHJ 12 S 15 12 150 298 298 86 40 90 27 298 21 11
HHJ 30 S 7.5 30 75 226 226 118 60 90 33 214 33 M50x1.5 15
HHJ 20 S 15 20 150 389 389 100 50 90 31 377 27 M38x1.5 18
HHJ 30 S 15 30 150 362 362 120 60 90 32 350 33 M50x1.5 25
HHJ 60 S 7.5 60 75 272 272 166 80 70 41 257 45 M65x1.5 34.5
HHJ 45 S 15 45 150 388 388 140 65 70 36 376 39 M54x1.5 35.5
HHJ 110 S 7.5 110 75 315 315 238 130 70 40 295 80 M105x2 78.3
