General:
- Max. working pressure: 720 bar/ 72 Mpa
- Acting type: single
- Return type: gravity
- Compact
- Usable in all positions
- Protected against ejection of plunger

Standard supplied with:
- High Flow female coupler A 118

Available on request:
- Cylinders manufactured in conformity with customer specifications
- Collar thread
- Base mounting holes

  • Material: steel
Product Image 1
Product Image 2
Select a row from the table below, then click the add to quote button
Size Model tonnage tons stroke length
mm
Closed height
mm
A
mm
B
mm
C
mm
D
mm
E
mm
F
mm
R
mm
Weight
kg

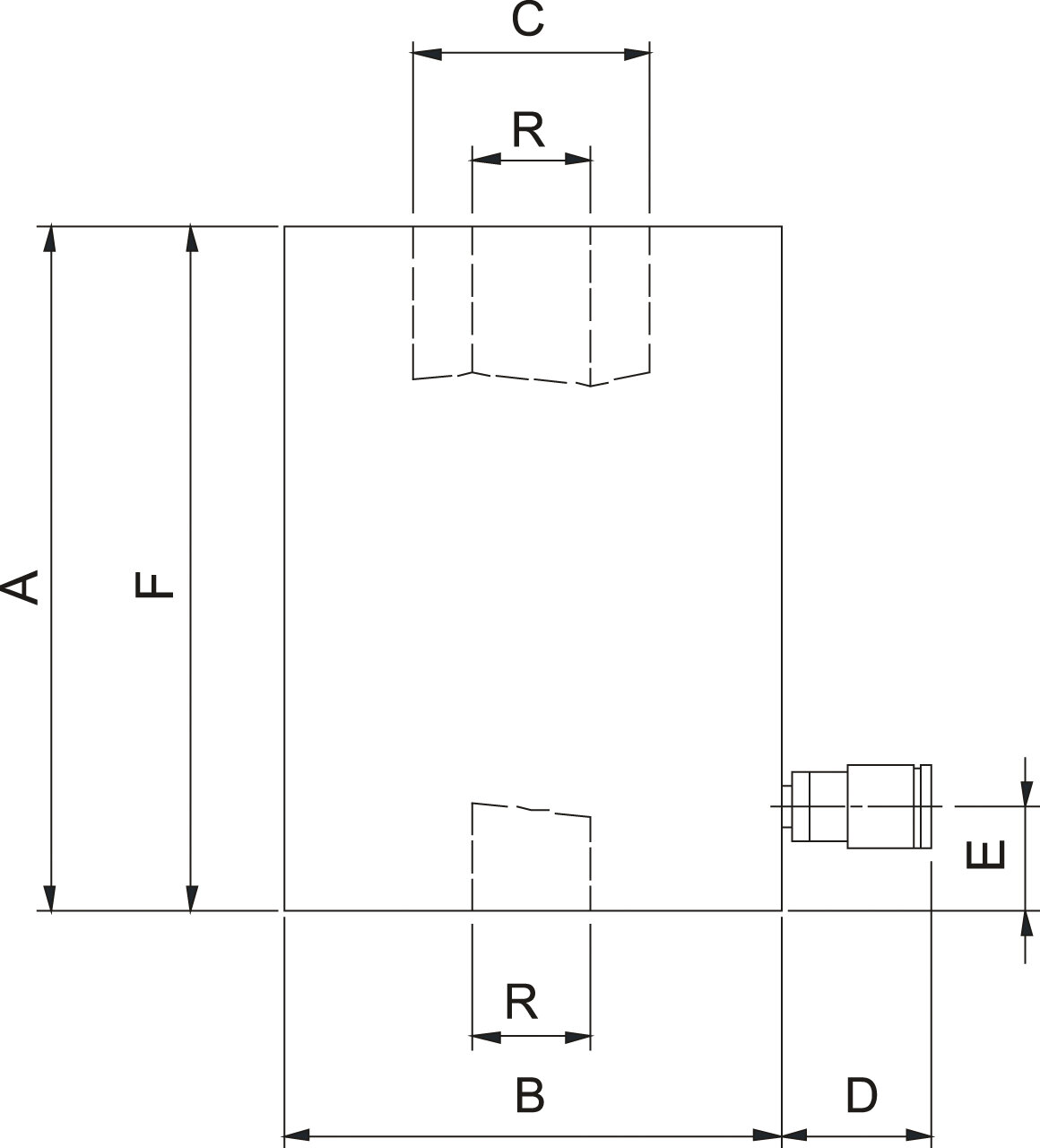

CAD
120 HHJ 30 G 5 30 50 120 120 118 70 90 33 120 33 10
