General:
- Max. working pressure: 720 bar/ 72 Mpa
- Acting type: single
- Return type: spring
- A range of more than 12 models with different tonnages and stroke lengths
- Duo Power Ring; seal and bearing for long life span
- Special coated Plunger with a hardened anodised layer
- XL Saddle+ protects the plunger and limits eccentric loads
- Almost all cylinders have a handle



Standard supplied with:
- High Flow female coupler A 118
- Flat saddle

Available on request:
- Cylinders manufactured in conformity with customer specifications
- Collar thread
- Base mounting holes
- Steel plate for protection of the cylinder bottom

Additional information:
Just as powerful as, though 50% lighter than its steel equivalent. This makes it easier and safer for a single user to lift higher tonnages. Aluminium cylinders offer an easy to handle alternative to steel. They should last a lifetime of use in average heavy duty lifting applications. However, aluminium cylinders should NOT be used in high cycle applications.
Aluminium cylinders obtained from Holmatro are designed to safely withstand up to 5,000 cycles at their maximum working pressure.

  • Material: Aluminium
Product Image 1
Product Image 2
Select a row from the table below, then click the add to quote button

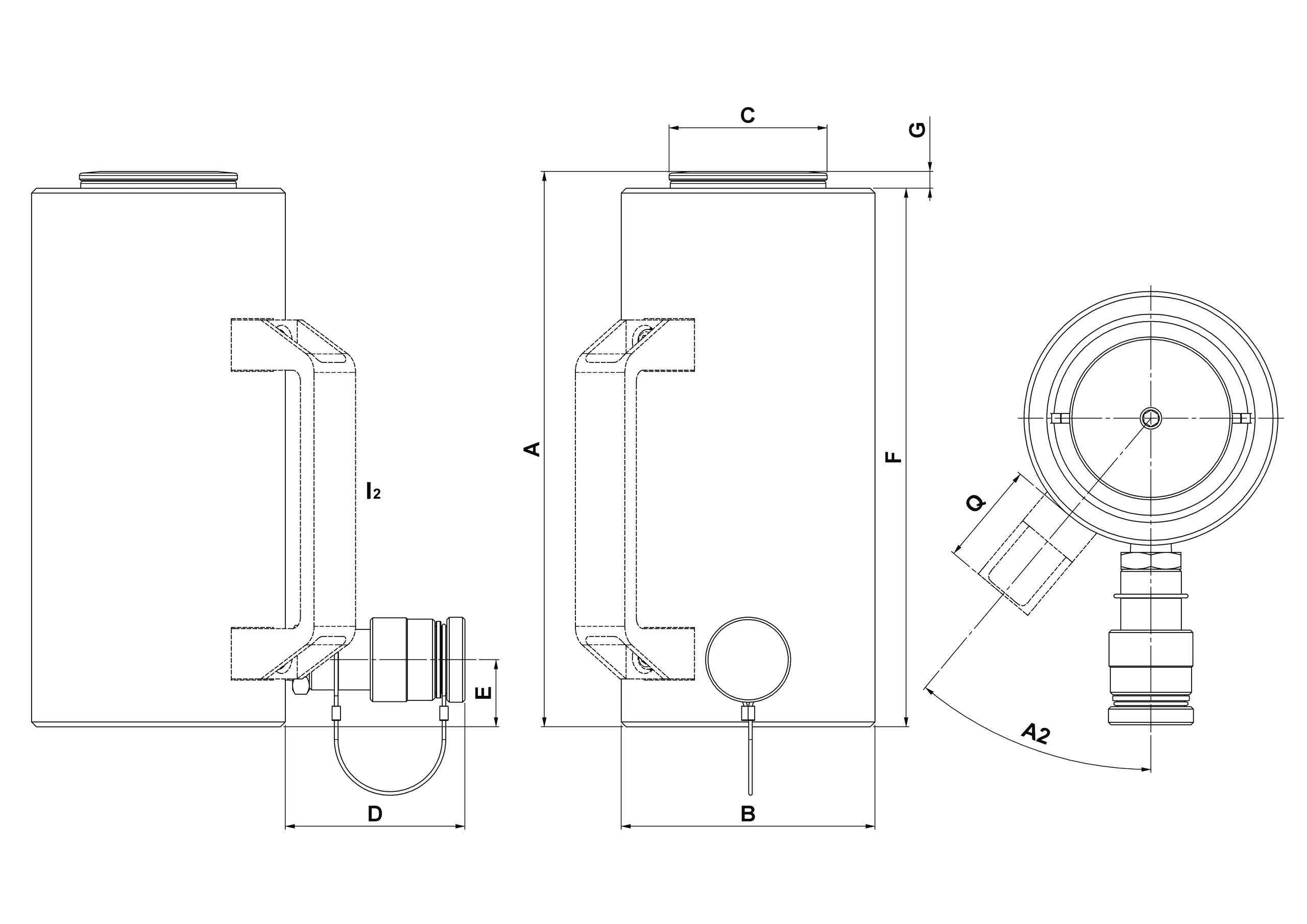

A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm) Q (mm) Model stroke length mm Closed height (mm) required oil cc tonnage t angle A2 ° Weight
kg
164 82 52 76 25 157 7 HAC 20 S 5 50 164 141 20 2.6
214 82 52 76 25 207 7 HAC 20 S 10 100 214 283 20 3.2
264 82 52 76 25 257 7 HAC 20 S 15 150 264 424 20 3.9
182 106 66 76 28 175 7 HAC 30 S 5 50 182 221 30 4.7
232 106 66 76 28 225 7 43 HAC 30 S 10 100 232 442 30 40 5.9
183 130 72 76 30 175 8 HAC 50 S 5 50 183 354 50 6.9
282 106 66 76 28 275 7 43 HAC 30 S 15 150 282 663 30 40 7
233 130 72 76 30 225 8 44 HAC 50 S 10 100 233 709 50 40 8.3
283 130 72 76 30 275 8 44 HAC 50 S 15 150 283 1,063 50 40 9.8
225 189 107 76 35 217 8 44 HAC 100 S 5 50 225 716 100 40 17.8
275 189 107 76 35 321 8 44 HAC 100 S 10 100 275 1,431 100 40 20.9
325 189 107 76 35 317 8 44 HAC 100 S 15 150 325 2,147 100 40 24.1
