General: POWERTEX geared trolley operated by chain. A compact and low buildt design with low dead weight in a solid steel construction. It includes mechanical stops to ensure that the trolley is kept on the beam in case of accident (anti-drop + anti-tilt). Fits most types of beam profiles and most brands of lifting blocks and electric hoists. Wheels with ball bearings.

  • Marking: WLL and individual code.
  • Finish: Painted.
  • Standard: EN 13157
geared_trolley
Select a row from the table below, then click the add to quote button
Part Code Code WLL
ton

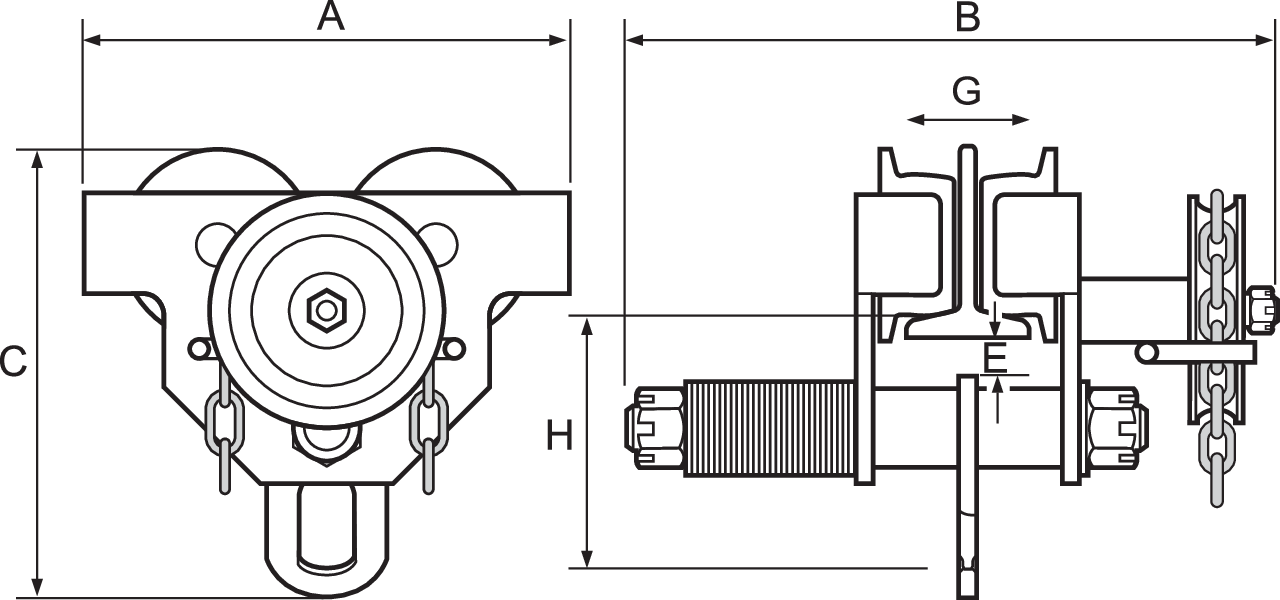

Min curve radius (m) A (mm) B (mm) C (mm) E (mm) G
mm
H (mm) Weight
kg
CAD
16.05PGT005 PGT-050 0.5 0,8 199 326 187 30 50-203 105 11
16.05PGT010 PGT-100 1 1,0 246 440 222 38 64-305 125 15.5
16.05PGT015 PGT-150 1.5 1,5 260 440 238 38 74-305 134 19
16.05PGT020 PGT-200 2 1,1 276 451 263 38 88-305 150 23
16.05PGT030 PGT-300 3 1,3 332 464 309 40 100-305 171 33
16.05PGT050 PGT-500 5 1,4 377 476 353 42 114-305 196 48
