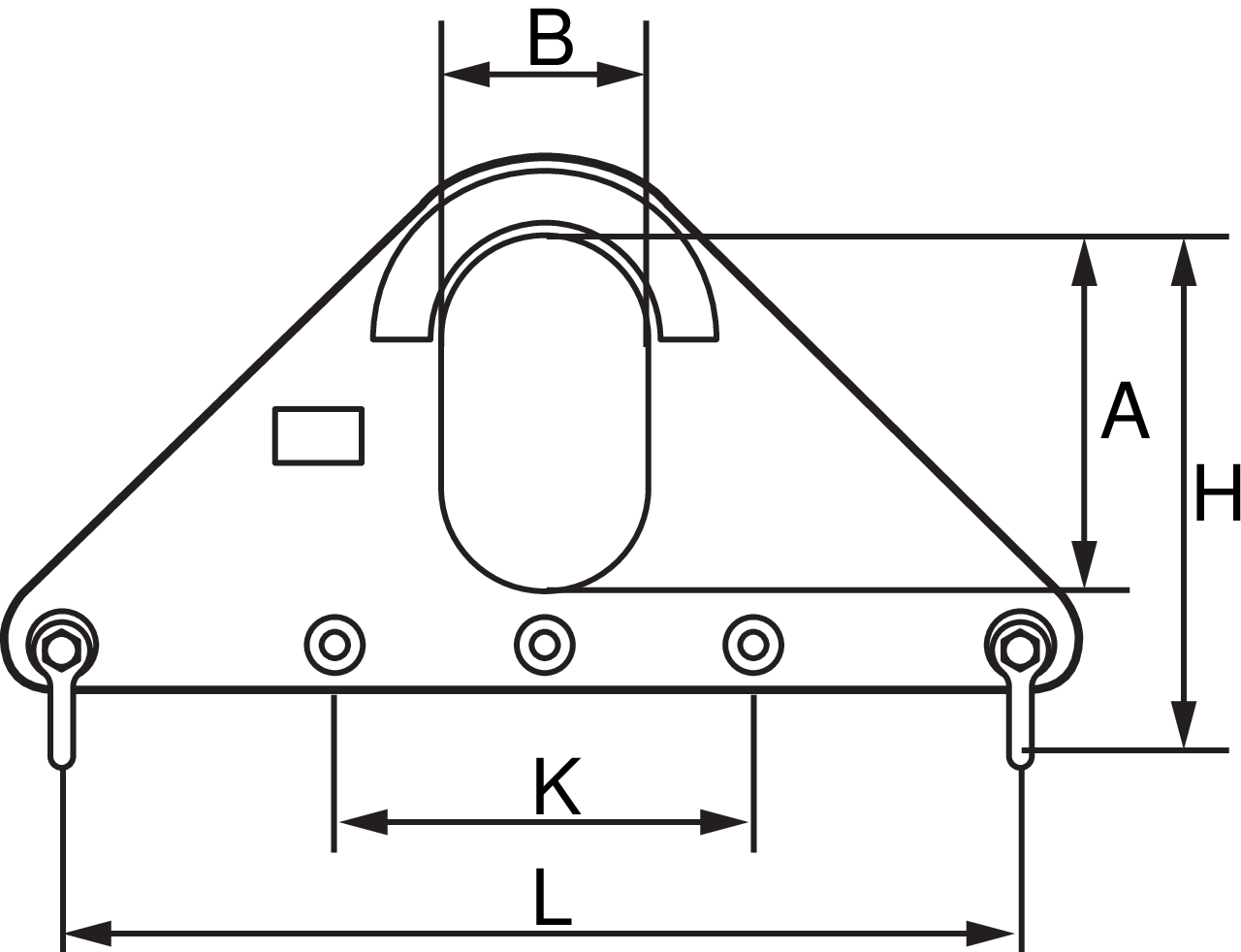

General: The lifting triangle has the same function as a short beam or a spreader. Given working load limits are valid for a maximum top sling angle of 90°. For top angles between 90°-120° working load limit shall be reduced by 30%. All lifting triangles are supplied with 2 shackles according to table. Working load limit in the centre shackle hole is equal to the working load limit of the shackle according to the table.
Design: Cut sheet metal. Wear plates and spacers for the shackles.
Proof: Batch proof 2 x WLL.
- Material: Plate of high-strength structural steel.
- Marking: WLL and CE-marking.
- Finish: Yellow painted.
- Note: Other loads and dimensions are available on request.


Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
