General: In the SK series we have packed high performance motors into a compact design. The extremely sturdy construction guarantees long service life, reliable operation and low maintenance. Noise levels are reduced to a minimum.
Standard equipment
- Stationary hoist with hook suspension
- 2 lifting speeds (4/1), optionally with frequency inverter.
- Mechanical overload protection.
- Top hook.
- IP55 protection.
- Motor insulation class F.
- 48 V contactor control.
- IP65 control pendant with plug adapter and EMERGENCY-STOP.
- Drive operation with frequency inverter, 2-speed or variable.
- Suitable for ambient temperatures of between -20 and +40 C.
- Single-girder trolley equipped with drop stops.
- Lifting motor with thermal protection (SKD/E/F standard).
- Upper and lower hoisting limit switch.

Options
- Push travel trolley
- With frequency inverter for stepless hoisting and lowering
- Motor drive system with 2-speed or variable speed control
- Extremely low headroom trolley
- Load chain and hook in stainless steel
- Protective rain covers
- Hours in service meter
- Radio control system
- Thermal protection for lifting motor and trolley drive
- Articulated bogey trolley for curved runway
- Push or motor travel trolley for light crane system
- Explosion proof version
- Ergonomic HandyMaster control pendant for increased efficiency
- With extreme lifting heights for windmill applications
- Versions for the food industry

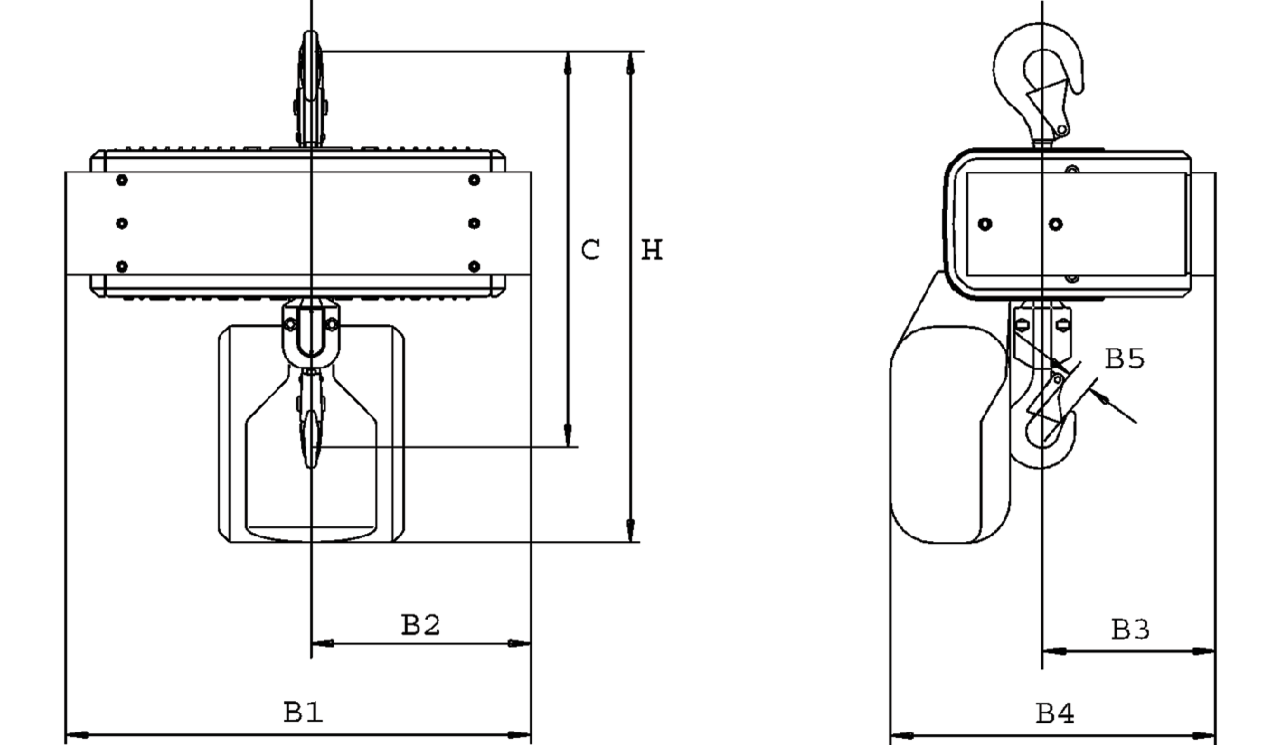

swf_telfer_drawing
Select a row from the table below, then click the add to quote button
Part Code WLL
ton
FEM Chain size Hoisting speed
m/min
No. of falls Hoist motorkW Net weight
kg
B1
mm
B2
mm
B3
mm
B4
mm
B5
mm
C
mm
H*
mm
CAD
13.051SK@80.12 0.125 1Bm 3,1 x 9,3 8,0/2,0 1 0,20/0,05 14 308 136 147 250 18 310 312
13.051SK@82.22 0.125 2m 3,1 x 9,3 4,0/1,0 2 0,20/0,05 14 308 136 132 250 18 334 312
13.052SK@80.22 0.25 1Bm 3,1 x 9,3 4,0/1,0 2 0,20/0,05 15 308 136 132 250 18 334 312
13.052SKB82.12 0.25 2m 4,8 x 12,5 8,0/2,0 1 0,80/0,20 27 422 199 160 300 18 366 455
13.055SKB80.12 0.5 1Bm 4,8 x 12,5 8,0/2,0 1 0,80/0,20 27 422 199 160 300 18 366 455
13.055SKC82.12 0.5 2m 6,8 x 17,8 8,0/2,0 1 1,70/0,40 55 504 260 200 405 22 448 575
13.0510SKB80.22 1 1Bm 4,8 x 12,5 4,0/1,0 2 0,80/0,20 30 422 199 139 300 22 416 455
13.0510SKC80.12 1 1Bm 6,8 x 17,8 8,0/2,0 1 1,70/0,40 55 504 260 200 405 22 448 575
13.0510SKC82.22 1 2m 6,8 x 17,8 4,0/1,0 2 1,70/0,40 60 504 260 171 405 35 509 575
13.0516SKC80.22 1.6 1Bm 6,8 x 17,8 4,0/1,0 2 1,70/0,40 60 504 260 171 405 35 509 575
13.0520SKC80.22 2 1Bm 6,8 x 17,8 4,0/1,0 2 1,70/0,40 60 504 260 171 405 35 509 575
13.0520SKD82.22 2 2m 9,0 x 27,0 4,0/1,0 2 3,50/0,90 110 518 313 196 469 43 658 774
13.0532SKD80.22 3.2 1Bm 9,0 x 27,0 4,0/1,0 2 3,50/0,90 110 518 313 196 469 43 658 774
13.0532SKF62.22 3.2 2m 11,3 x 31,0 3,2/0,75 2 3,50/0,90 125 518 313 196 469 43 658 774
13.0540SKE80.22 4 1Bm 11,3 x 31,0 4,0/1,0 2 3,50/0,90 125 518 313 196 469 43 658 774
13.0550SKF60.22 5 1Bm 11,3 x 31,0 3,2/0,75 2 3,50/0,90 125 518 313 196 469 43 658 774
