The 1-phase STAR LIFTKET VFD electric chain hoist is equipped as a standard with limit switches (up/down), control pendant with emergency stop and a thermal sensor.
Optionally, the chain hoist can be ordered with various suspensions, trolley or chain boxes.

Features:

  • Load capacity 125 – 2.000 kg
  • Load-dependent, variable speed control from 2 to 24 m/min
  • One hoist for a worldwide use (200 – 240 V / 50 and 60 Hz)
  • The hoists can be operated with up to 200% of the nominal speed by moving without load
  • First chain hoist with integrated display for displaying the following values:
    • Remaining useful life
    • Operating hours
    • Full load hours
    • Number of brake clearances
    • Inverter temperature
  • Decreases the maintenance effort and cost
  • With hoisting limit switches
  • With overheating protection for lifting motor and VFD
  • UL solutions available
  • Protection class IP55
  • All mechanical accessories and components are fully compatible (e.g. Chain bags, trolleys, special chains, variations, etc.)
  • Marking: CE-marked
Select a row from the table below, then click the add to quote button
Part Code Code WLL
ton
Chain falls Duty rating % ED Class ISO/FEM Lifting speed at 50 Hz
m/min
Power of lifting motor at 50 Hz kW Load chain
mm
Weight
kg
CAD
13.05VFD10125124-06 125/1-12 0.125 1 25 M6 2-24 3 7,2x21 33
13.05VFD10250124-06 250/1-12 0.25 1 25 M6 2-24 3 7,2x21 33
13.05VFD10500116-06 500/1-8 0.5 1 25 M6 1-16 3 7,2x21 38
13.05VFD11000112-06 1000/1-6 1 2 25 M5 1-12 3 7,2x21 36
13.05VFD12000206-06 2000/2-3 2 2 25 M5 0,5-6 3 7,2x21 41

Part Code = last two digits indicates the lifting height: 06 = 6 m lifting height
Weight with 3 m lift chain

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

Get CAD
Download

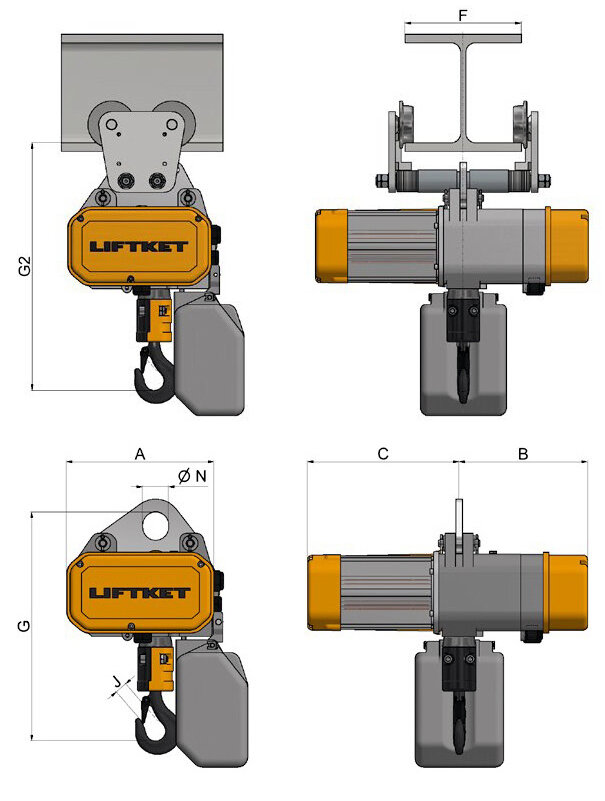

Code A B C G G2 F
  mm mm mm mm mm mm
125/1-12 266 232 274 555 611 66-135, 137-215, 220-300
250/1-12 266 232 274 555 611 66-135, 137-215, 220-300
500/1-8 266 232 274 555 611 66-135, 137-215, 220-300
1000/1-6 266 232 274 555 611 66-135, 137-215, 220-300
2000/2-3 266 232 274 555 611 66-135, 137-215, 220-300
