Design: Jaw-jaw. Delievered complete with locking nuts.

Proof: Will be proof loaded when they are included in a lifting tool or on request.


  • Material: Stainless acidproof steel AISI 316.
  • Finish: Polished.
  • Note: On request the rigging screws can be provided with thread stop
  • Warning: The turnbuckles are normally not intended for lifting. If they are to be used for lifting every individual turnbuckle shall  be proof loaded, this is made on request. The turnbuckles are not allowed to be adjusted in length under load, when they are used for lifting!
Select a row from the table below, then click the add to quote button
Part Code MBL
ton
Thread A
mm
B
mm

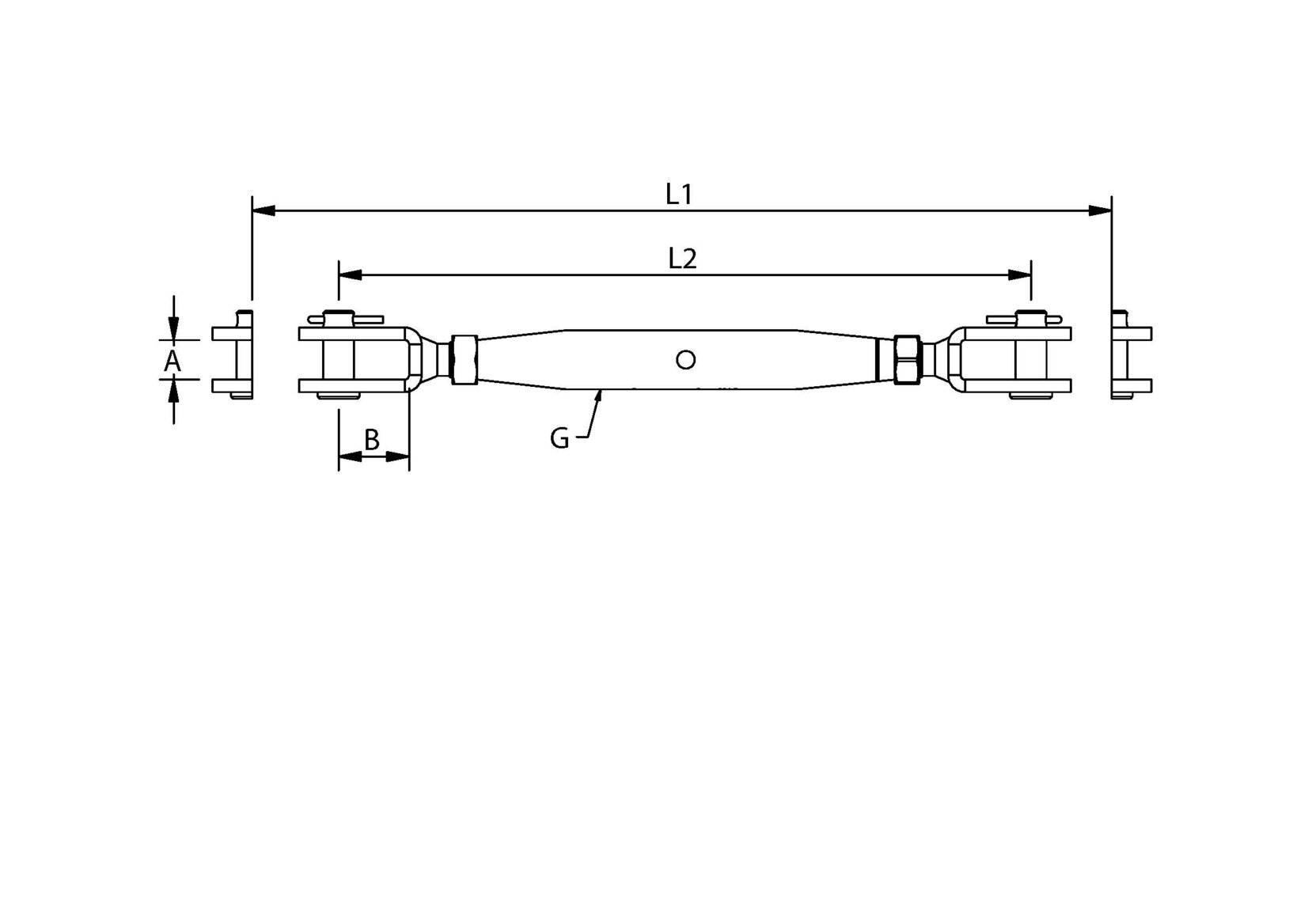

L1 (mm) L2 (mm) Weight CAD
11.54120005 0.8 M5 7.5 12 188 126 0.05
11.54120006 1.25 M6 7.5 12 210 142 0.09
11.54120006X 1.25 M6 9.5 13 213 145 0.14
11.54120008 1.3 M8 9.5 13 251 170 0.15
11.54120008X 2.35 M8 11 15 258 178 0.15
11.54120010 2.35 M10 11 15 272 197 0.24
11.54120010X 3.5 M10 12 19 286 204 0.26
11.54120012 5.1 M12 14 25 359 251 0.53
11.54120014X 5.9 M14 18 32 413 295 0.64
11.54120016X 8 M16 18 33 479 319 1
11.54120020 13 M20 19 48 550 390 2
11.54120022 17 M22 30 57 653 472 4.3
11.54120024 20 M24 30 62 796 539 6.4
Other performance on request.
