Design: Weldable hook for excavators, wheel loader or other applications where a weldable hook is needed.







  • Material:  Alloy steel grade 8.
  • Marking: WLL.
  • Finish: Painted.
  • Note: All welding has to be done by competent welder.
  • Warning: The hook part may not be heat-treated.
  • Safety factor: 4:1.
  • Grade: 8
grävmaskinskrok_sida_färg_ny_225mm
Select a row from the table below, then click the add to quote button

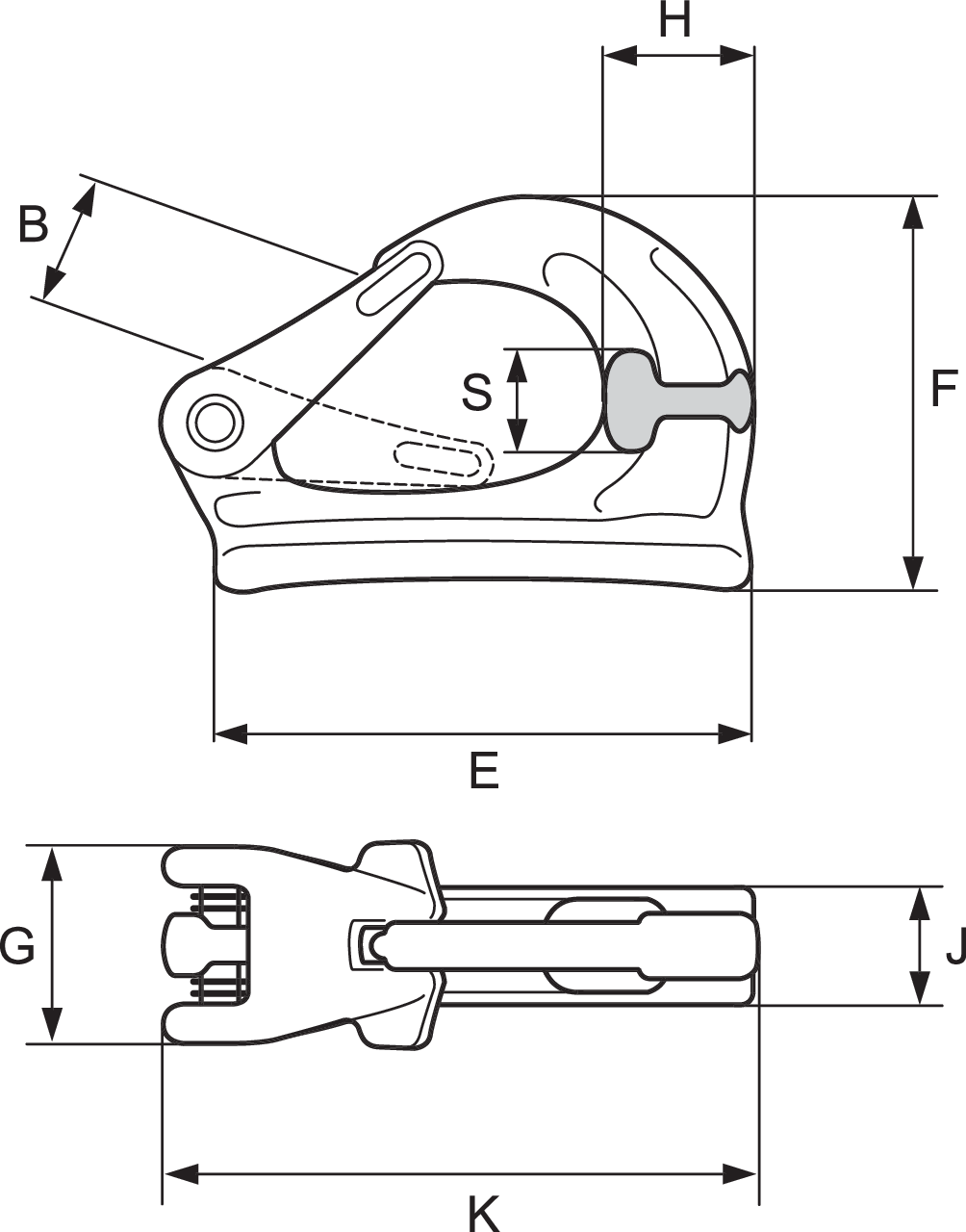

Part Code Code WLL
ton
a-size
mm
B
mm
E
mm
F
mm
G
mm
H
mm
J
mm
K
mm
S
mm
Weight
kg
CAD
11.28YE808101 EH-1 1 4 23 97 71 36 27 26 107 18 0.52
11.2825131 EH-2 2 5 23 82 91 36 25 34 115 21 0.84
11.288SLR019-3.0T EH-3 3 6 29 117 105 36 31 36 131 24 1.18
11.288SLR019-4.0T EH-4 4 34 131 114 46 36 43 147 29 1.9
11.288SLR019-5.0T EH-5 5 7 34 161 133 47 45 44 173 29 2.55
11.2825134 EH-8 8 9 35 166 135 47 52 52 178 39 3
11.2825135 EH-10 10 10 49 205 168 47 57 54 222 39 5

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

Get CAD
Download
