Standard: DIN 5299 C


WARNING! Not for lifting.



  • Material: Stainless AISI 316.
2402-r_e_225mm
2401m_micke_225mm
Select a row from the table below, then click the add to quote button

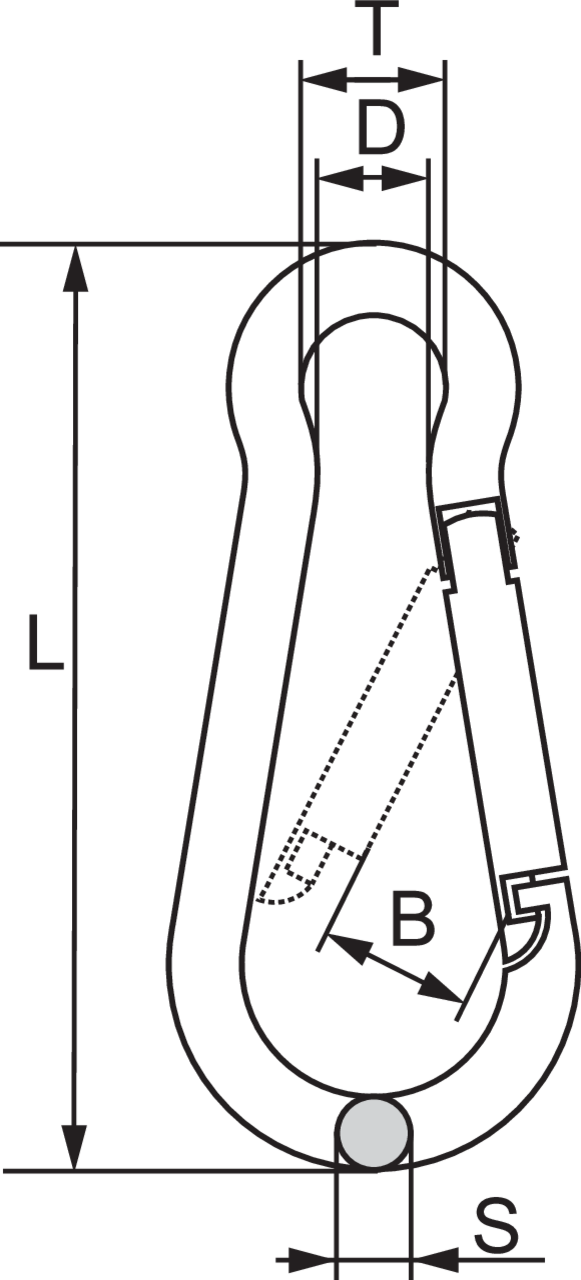

Art No Code MBL (kg) B (mm) D (mm) L (mm) S (mm) T (mm) Weight
kg/100pcs
11.565299C06S 2402-S 670 8 7 60 6 9 3
11.565299C08S 2404-S 870 11 10 80 8 12 7
11.565299C10S 2406-S 1,150 15 12 100 10 15 13
11.565299C11S 2408-S 1,250 18 15 120 11 18 18
Larger dimensions and performance with ratchet screw on request.
