WARNING! Not to be heat-treated.




  • Material: Alloy steel grade 8.
  • Marking: Code and grade.
  • Finish: Painted.
  • Note: Application in combination with link "CLO".
  • Safety factor: 4:1.
  • Grade: 8
CH_new_225mm[new]
Select a row from the table below, then click the add to quote button
Art No Code WLL
Ton

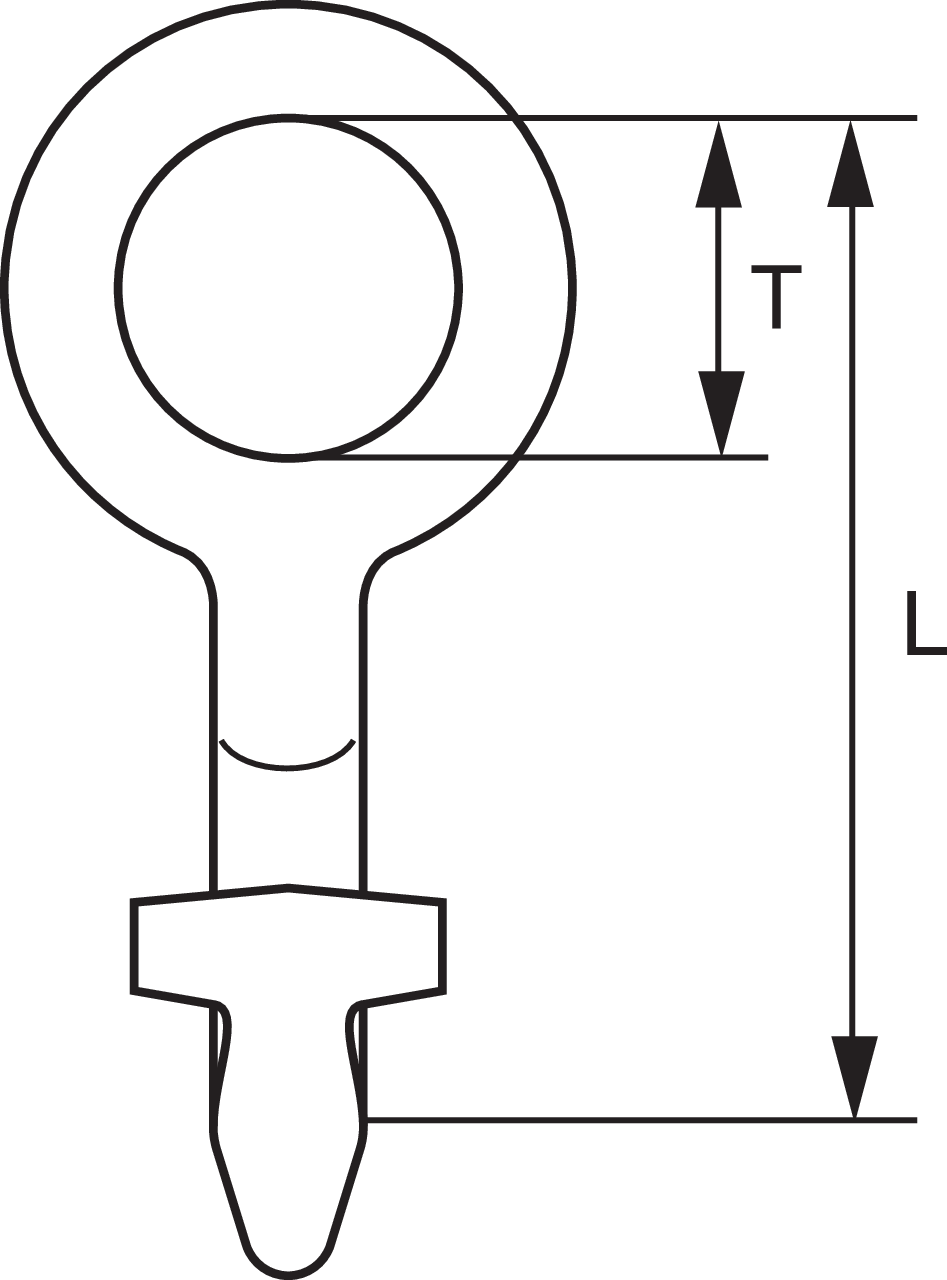

For chain gr 8 Ø (mm) L (mm) T (mm) Weight
kg
11.25A161J/1 CH-7/8-8 2 7-8 90 30 0.35
11.25A162J/1 CH-10-8 3.15 10 114 38,5 0.75
11.25A163J CH-13-8 5.3 13 146 52 1.4
11.25A164J CH-16-8 8 16 180 64 3.2
