Proof: 2,5 x WLL.



  • Material: Alloy steel grade 8. Not to be heat-treated.
  • Marking: Code and grade.
  • Finish: Painted.
  • Safety factor: 4:1.
  • Grade: 8
Masterlink_blue
MLm_225mm
Select a row from the table below, then click the add to quote button
Art No Code WLL
Ton

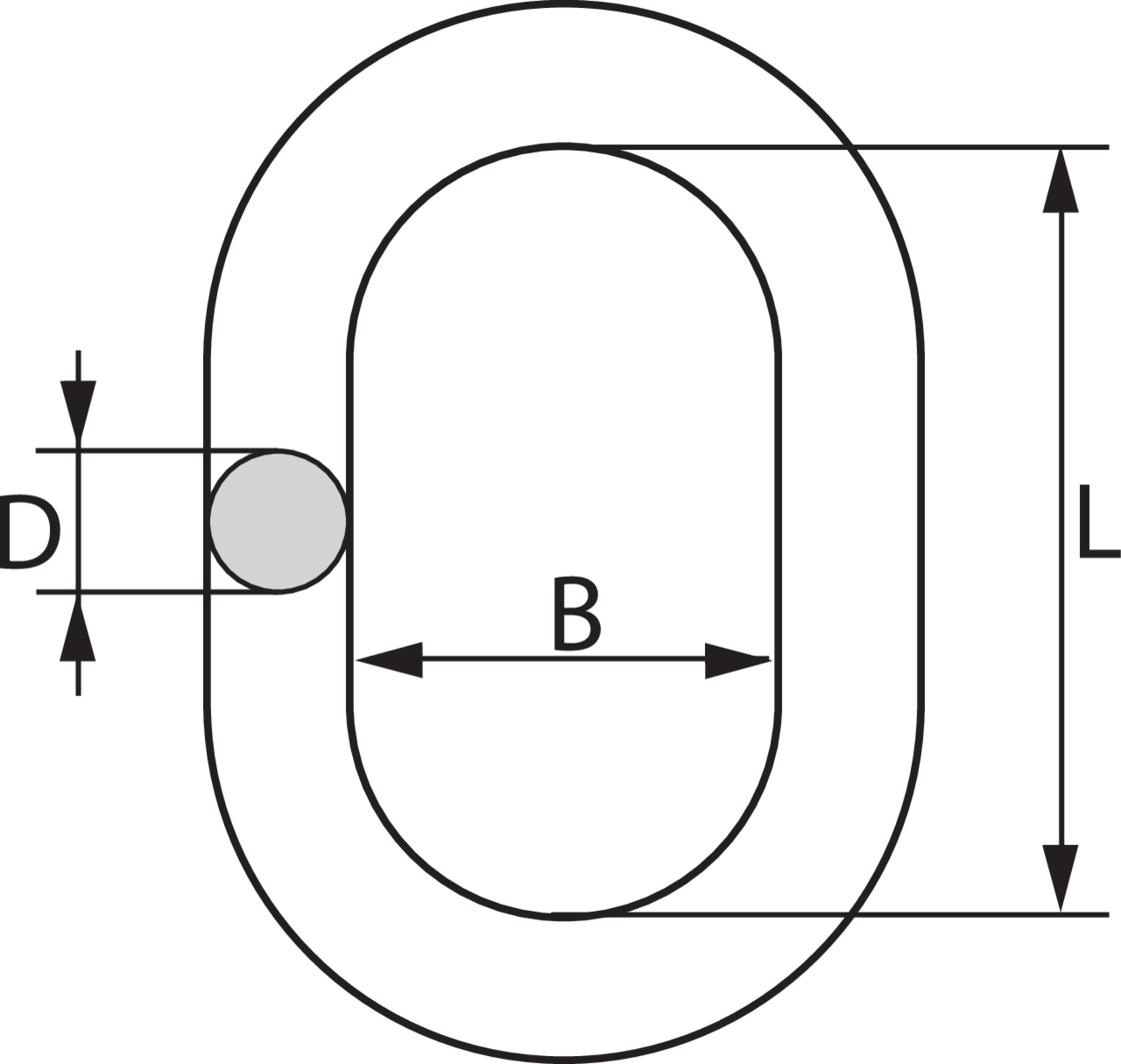

D (mm) B (mm) L (mm) Weight
kg
CAD
04.01MLL16B7 NR16B7 3.2 16 190 100 0.9
04.01MLL22B7 NR22B7 7.2 22 210 110 1.9
04.01MLL28B7 NR28B7 11.8 28 270 140 4
04.01MLL32B6 NR32B6 17.1 32 270 140 5.3
04.01MLL38B7 NR38B7 19.1 38 420 220 11
04.01MLL45B7 NR45B7 27.6 45 470 250 17.5
04.01MLL38B6 NR38B6 28.1 38 270 140 7.5
04.01MLL45B6 NR45B6 38.3 45 320 170 12.5
04.01MLL50B6 NR50B6 45 50 380 200 18
04.01MLL60B6 NR60B6 65.3 60 430 220 30
04.01MLL70B6 NR70B6 84.4 70 500 250 44
04.01MLL80SC1 NR80SC1 105 80 450 250 62
